5TT5 Insta Contactors, AC/DC Technology Parts

Showing 1–6 of 6 parts

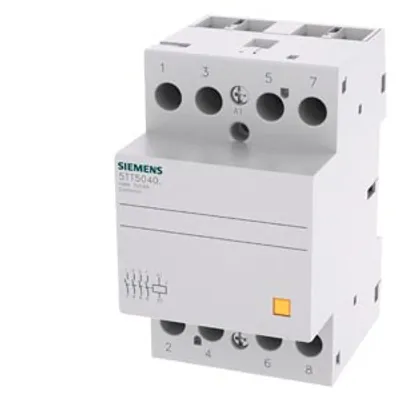

Siemens 5TT5040-0 – Insta contactor with 4 NO contact for 230 V AC, 400 V 40 A control 230 V AC 220 V DC
Siemens
5TT5040-0

Insta contactor with 4 NO contact for 230 V AC

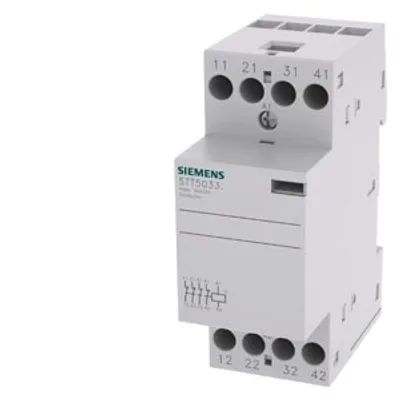

Siemens 5TT5033-2 – Insta contactor with 4 NC contact for 230 V AC, 400 V 25 A control AC/24 V DC
Siemens
5TT5033-2

Insta contactor with 4 NC contact for 230 V AC

Siemens 5TT5050-0 – Insta contactor with 4 NO contact for 230 V AC, 400 V 63 A control 230 V AC 220 V DC
Siemens
5TT5050-0

Insta contactor with 4 NO contact for 230 V AC

Siemens 5TT5043-2 – Insta contactor with 4 NC contact for 230 V AC, 400 V 40 A control AC/24 V DC
Siemens
5TT5043-2

Insta contactor with 4 NC contact for 230 V AC

Siemens 5TT5043-0 – Insta contactor with 4 NC contact for 230 V AC, 400 V 40 A control 230 V AC 220 V DC
Siemens
5TT5043-0

Insta contactor with 4 NC contact for 230 V AC

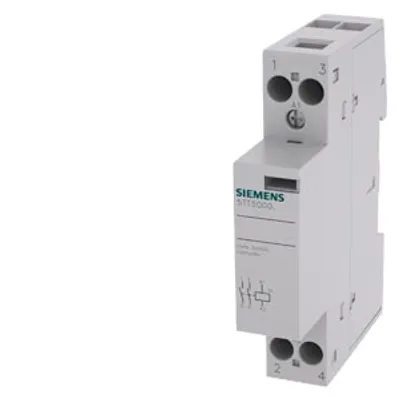

Siemens 5TT5000-0 – Insta contactor with 2 NO contacts for 230 V AC, 400 V 20 A control 230 V AC 220 V DC
Siemens
5TT5000-0

Insta contactor with 2 NO contacts for 230 V AC

Compare 5TT5 Insta Contactors, AC/DC Technology

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNdesign of the productpower loss [W] for rated value of the current at AC in hot operating state per polenumber of NO contactswidthNet Weight
5TT5040-04 NO contacts4 W453.5 mm443 g
5TT5033-24 NC contacts2.2 W035 mm290.5 g
5TT5050-04 NO contacts8 W453.5 mm440 g
5TT5043-24 NC contacts4 W053.5 mm443 g
5TT5043-04 NC contacts4 W053.5 mm443 g
5TT5000-02 NO contacts1.7 W217.5 mm141 g

Common to all listed parts

product designationInstallation contactor
relative ON period of magnet coil100 %
type of voltage of the operating voltageAC
type of voltage of the operating voltage for actuationAC/DC
protection class IPIP20
product component slide for manual operationNo
product extension installable supplementary devicesYes
installation or assembly noteprovision must be made for spacers to ensure heat dissipation
