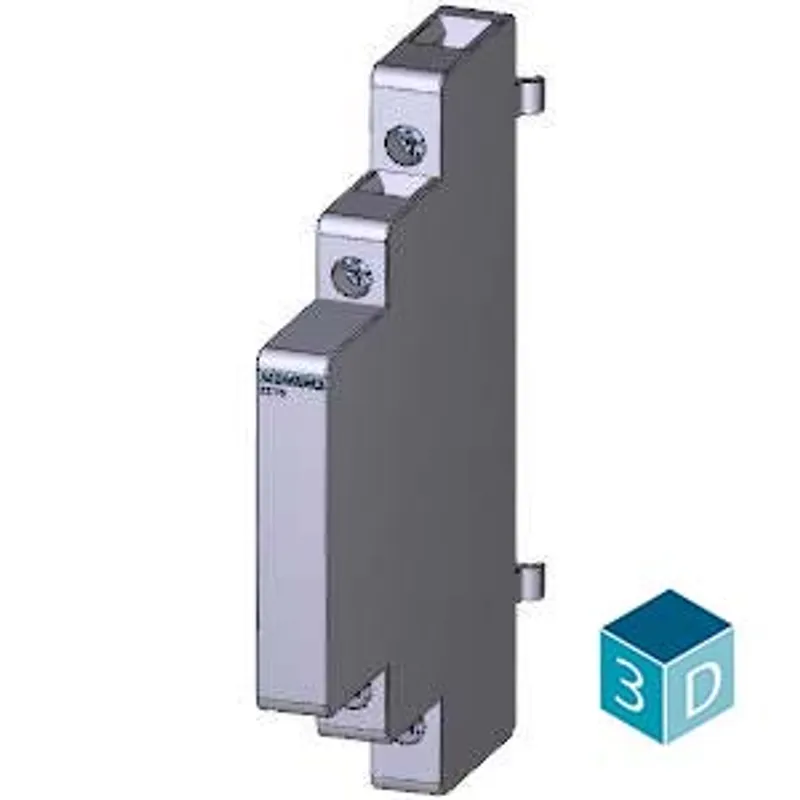

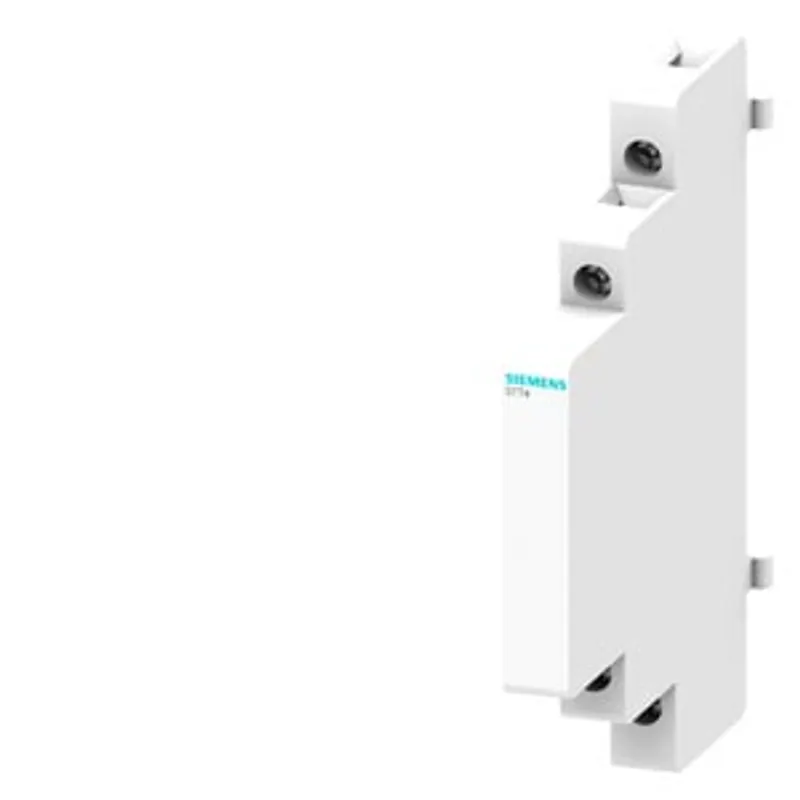

Siemens 5TT4930

Auxiliary switch contact for AC 6 A, 250 V 1 NO 1 NC

MPN
5TT4930
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5TT4930?

auxiliary switch contact for AC 6 A, 250 V 1 NO 1 NC

Specifications

Model

product brand nameSENTRON
product designationRemote control switch
design of the productauxiliary switch, 1NC+1NO
latching relay designAuxiliary switch

General technical data

galvanic isolation between magnet coil and contactYes
switching voltage of the contacts at AC minimum10 V
switching current at AC per contact minimum100 mA
degree of pollution3

Voltage

type of voltage of the operating voltageAC

Protection class

protection class IPIP20

Product details

number of NC contacts1
number of NO contacts1
number of CO contacts0

Product function

product function — communication functionNo
product function — other measurement functionNo
pulse duration minimum50 ms

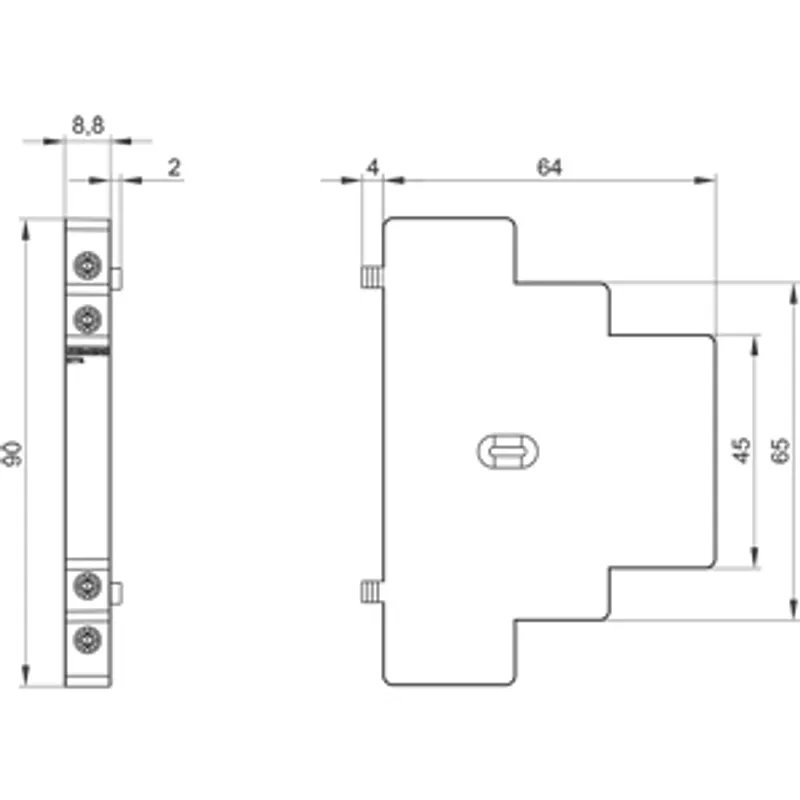

Mechanical Design

height90 mm
width9 mm
width of opening of the contacts1.2 mm
depth73 mm
mounting height90 mm
installation depth70 mm
number of modular width units0.5
fastening methodDIN rail
mounting positionHorizontal and vertical
Net Weight47 g

Environmental conditions

ambient temperature during operation — minimum-25 °C
ambient temperature during operation — maximum70 °C
ambient temperature with relative humidity 95% according to DIN 5001555 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5TT4930: frequently asked questions

When can 5TT4930 be shipped?

5TT4930 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5TT4930 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5TT4930 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5TT4930, subject to availability and destination.
