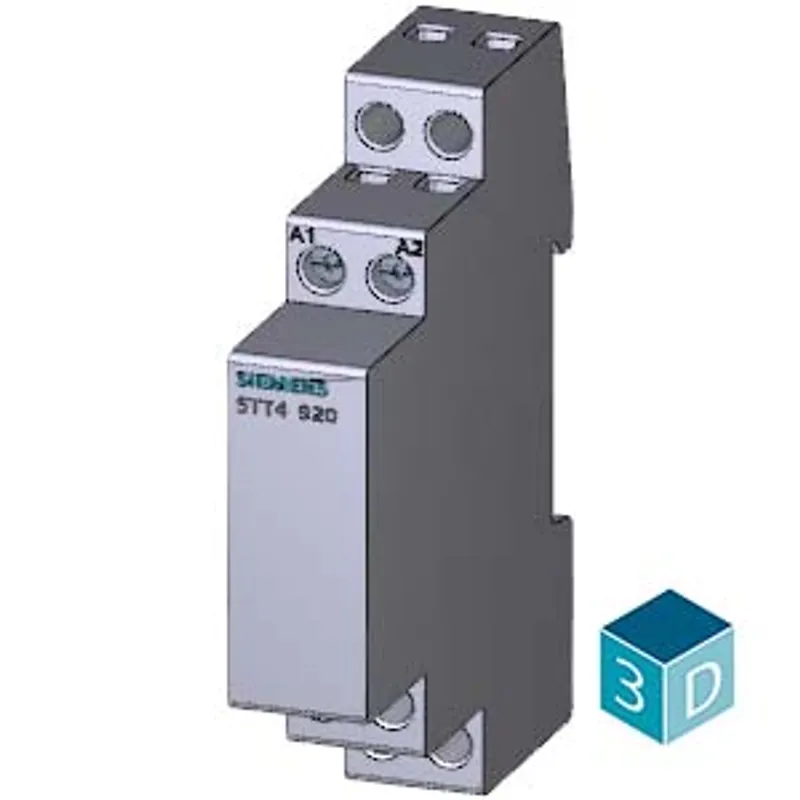

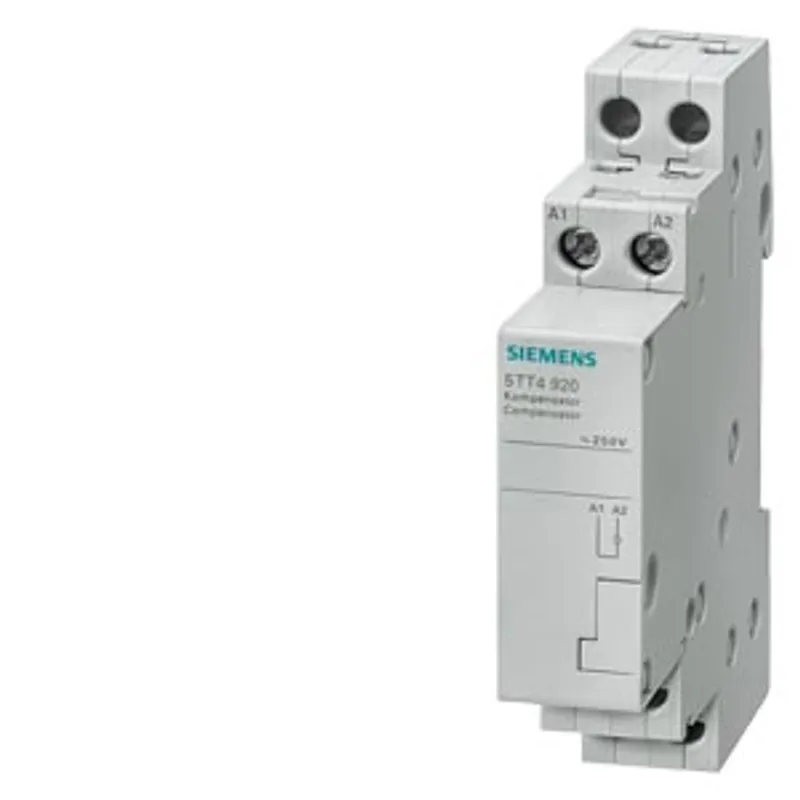

Siemens 5TT4920

Compensator for remote control switch5TT41.. for glow lamp current 20 mA

MPN
5TT4920
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5TT4920?

compensator for remote control switch5TT41.. for glow lamp current 20 mA

Specifications

Model

product brand nameSENTRON
product designationRemote control switch
design of the productcompensator
latching relay designothers

General technical data

degree of pollution2

Voltage

type of voltage of the operating voltageAC
continuous voltage fuse versionYes
supply voltage250 V

Supply voltage

supply voltage — minimum250 V

Protection class

protection class IPIP20, with connected conductors

Breaking Capacity

switching capacity current — at cos phi 0.616 A

Control current

control voltage frequency — _1 initial value50 Hz
control voltage frequency — _1 full-scale value50 Hz

Product function

product function — communication functionNo
product function — other measurement functionNo

Number

number of terminals2

Connections

connectable conductor cross-section for flexible conductor with core end processing — minimum1 mm²
connectable conductor cross-section for flexible conductor with core end processing — maximum6 mm²
connectable conductor cross-section for rigid conductor — minimum1.5 mm²
connectable conductor cross-section for rigid conductor — maximum6 mm²

Mechanical Design

height90 mm
width18 mm
depth64 mm
mounting height90 mm
installation depth70 mm
number of modular width units1
fastening methodDIN rail
mounting positionany
Net Weight73 g

Environmental conditions

ambient temperature during operation — minimum-10 °C
ambient temperature during operation — maximum40 °C
ambient temperature with relative humidity 95% according to DIN 5001535 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5TT4920: frequently asked questions

When can 5TT4920 be shipped?

5TT4920 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5TT4920 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5TT4920 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5TT4920, subject to availability and destination.
