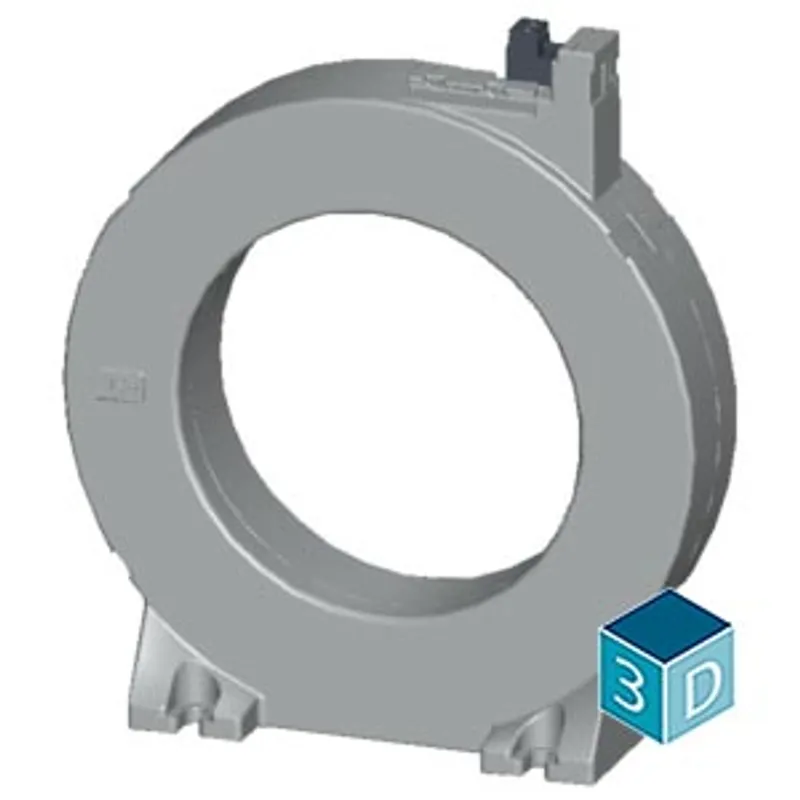

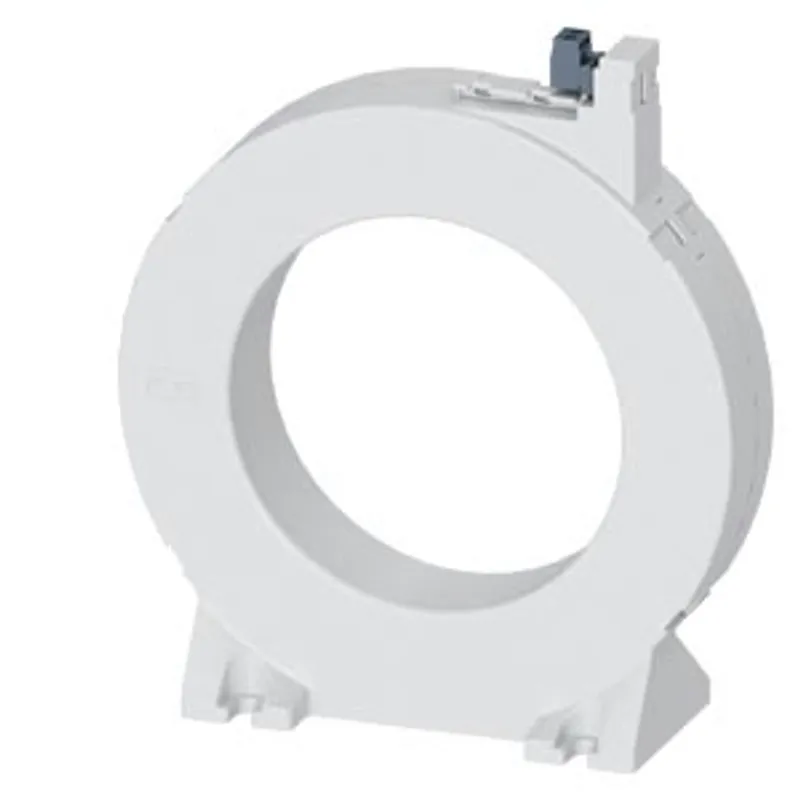

Siemens 5SV8713-0KK

Summation current transformer 120mm

MPN
5SV8713-0KK
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SV8713-0KK?

Summation current transformer 120mm

Specifications

Model

product brand nameSENTRON
product designationsummation current transformer
design of the producttype A
residual current (Idn) minimum4 mA
internal diameter of summation current transformer120 mm
wire length maximum40 m
protection class IP at connection all terminalsIP20
operating voltage rated value — maximum800 V

Main circuit

operational current rated value400 A

Suitability

suitability for usefor AC power system

Connections

connectable conductor cross-section — minimum0.2 mm²
connectable conductor cross-section — maximum2.5 mm²
type of electrical connectionscrew terminal

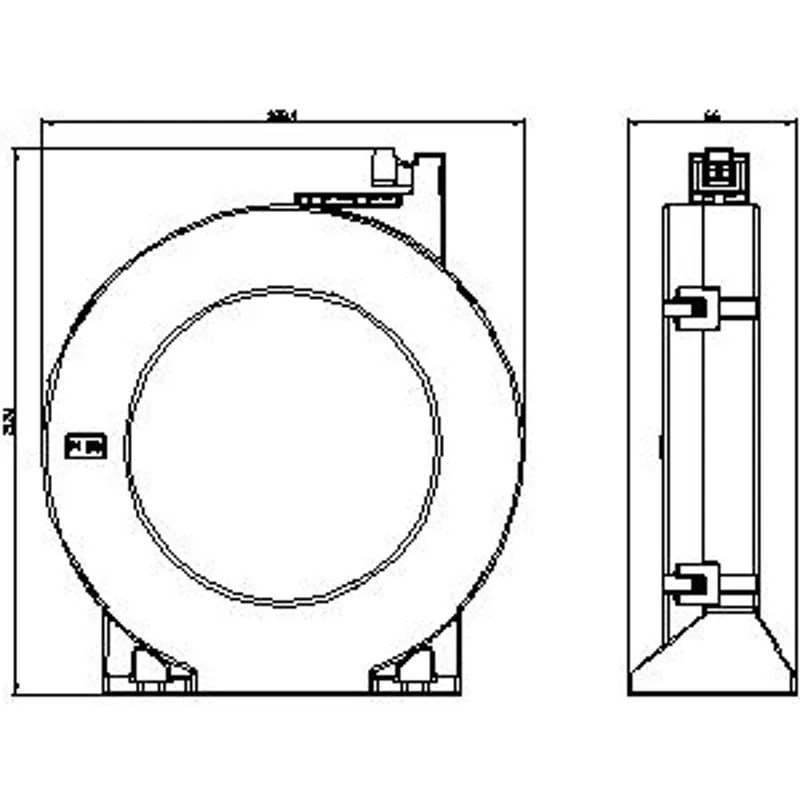

Mechanical Design

height213.1 mm
width188.4 mm
depth66 mm
Net Weight1.125 kg

Environmental conditions

influence of the surrounding temperatureMax. 95% humidity
ambient temperature during operation — minimum-25 °C
ambient temperature during operation — maximum70 °C
ambient temperature during storage — minimum-40 °C
ambient temperature during storage — maximum70 °C

Certificates

reference code according to IEC 81346-2F

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5SV8713-0KK: frequently asked questions

When can 5SV8713-0KK be shipped?

5SV8713-0KK is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5SV8713-0KK in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5SV8713-0KK and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SV8713-0KK, subject to availability and destination.
