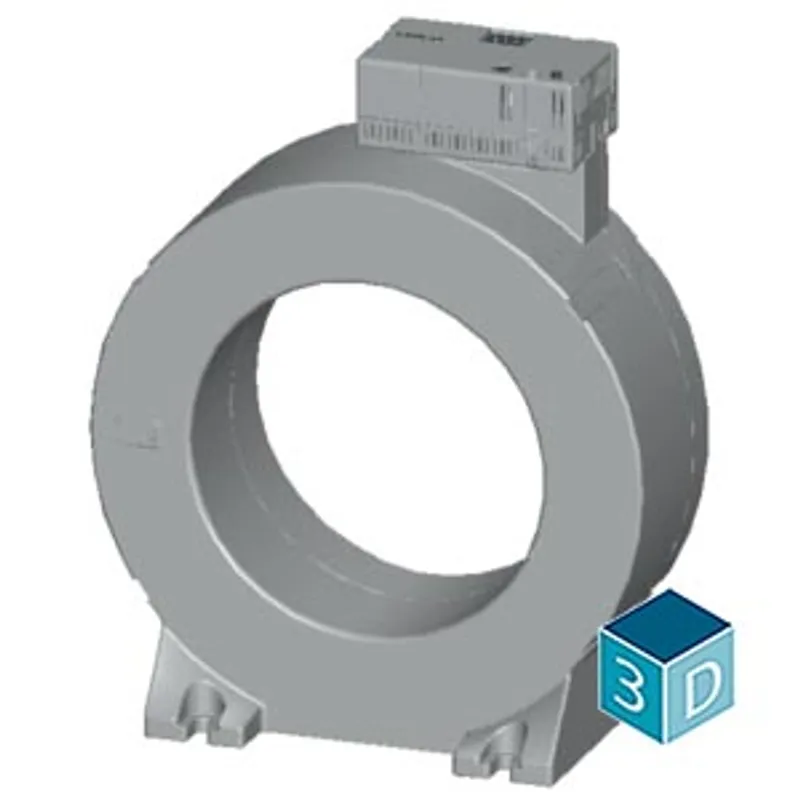

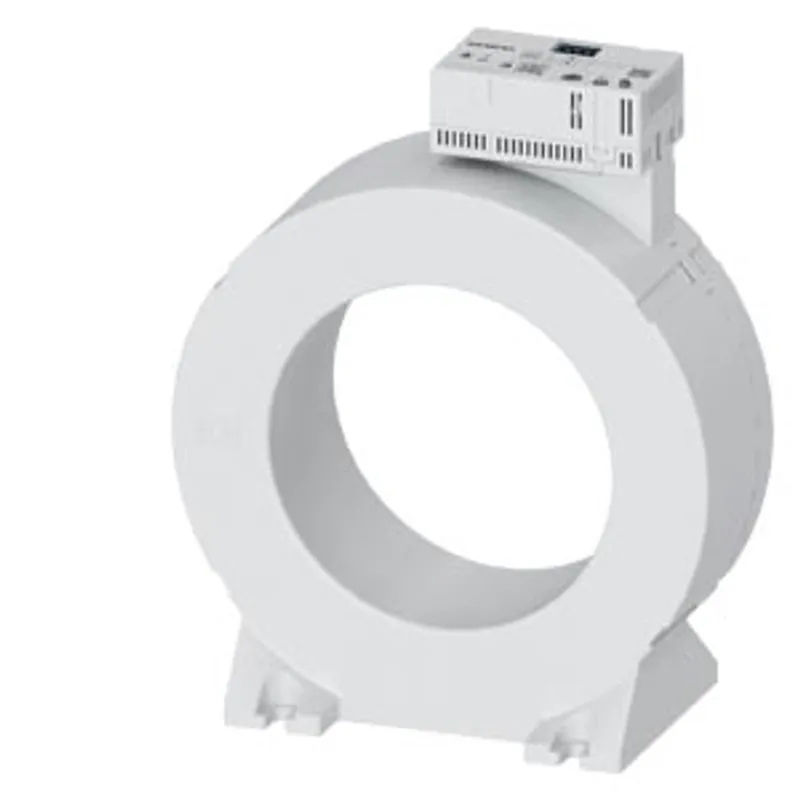

Siemens 5SV8713-2KK
Summation current transformer type B 120 mm
- MPN
- 5SV8713-2KK
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 5SV8713-2KK?
summation current transformer type B 120 mm
Specifications
Model
| product brand name | SENTRON |
| product designation | summation current transformer |
| design of the product | Type B |
| residual current (Idn) minimum | 4 mA |
| internal diameter of summation current transformer | 120 mm |
| symmetrical tolerance of supply voltage at DC | 24 V |
| wire length maximum | 10 m |
| protection class IP at connection all terminals | IP20 |
| surge voltage resistance rated value | 8 kV |
| operating voltage rated value — maximum | 800 V |
Main circuit
| operational current rated value | 400 A |
Control current
| control supply voltage — at DC rated value minimum | 24 V |
| control supply voltage — at DC rated value maximum | 24 V |
Suitability
| suitability for use | for AC and DC systems |
Connections
| connectable conductor cross-section — minimum | 0.2 mm² |
| connectable conductor cross-section — maximum | 1.5 mm² |
| type of electrical connection | Plug-in terminal |
Mechanical Design
| height | 227.3 mm |
| width | 188.4 mm |
| depth | 96 mm |
| Net Weight | 1.74 kg |
Environmental conditions
| influence of the surrounding temperature | Max. 95% humidity |
| ambient temperature during operation — minimum | -25 °C |
| ambient temperature during operation — maximum | 70 °C |
| ambient temperature during storage — minimum | -40 °C |
| ambient temperature during storage — maximum | 70 °C |
Certificates
| reference code according to IEC 81346-2 | F |
