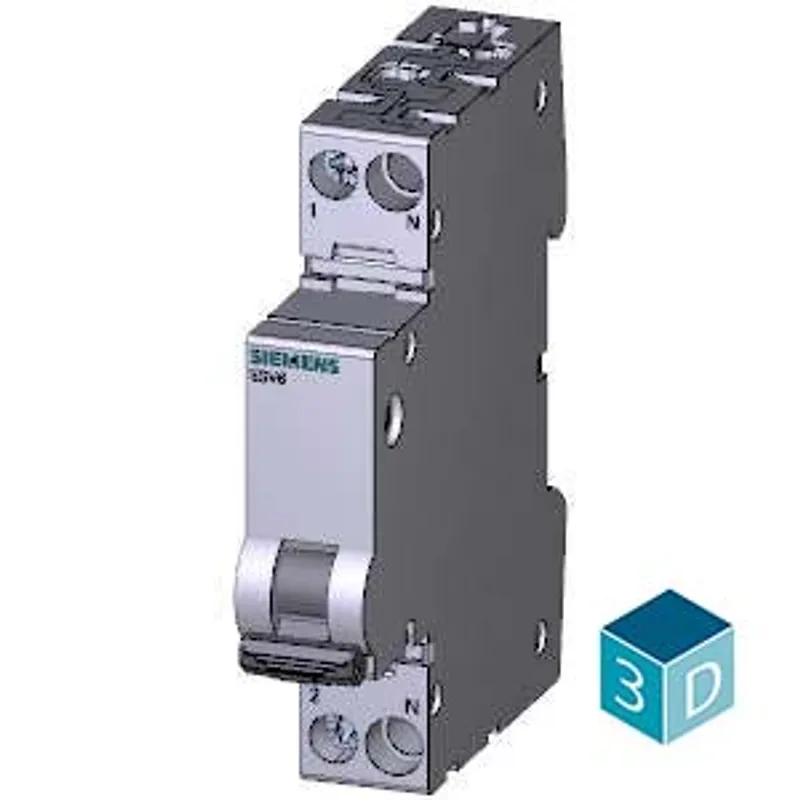

Siemens 5SV6016-7KK40
AFDD-MCB-Combination 230V, 6kA, 1+N, C, 40A Compact (1MW)
- MPN
- 5SV6016-7KK40
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 5SV6016-7KK40?
AFDD-MCB-Combination 230V, 6kA, 1+N, C, 40A Compact (1MW)
Specifications
Model
| product brand name | SENTRON |
| product designation | AFDD/MCB |
| design of the product | Compact unit |
General technical data
| number of poles | 2 |
| design of pole | 1P+N |
| tripping characteristic class | C |
| size of installation devices according to DIN 43880 | 1 |
| touch protection against electrical shock according to EN 50274 | finger and back-of-hand safe |
| mechanical service life (operating cycles) typical | 10 000 |
| switching function short-term delayed | No |
| overvoltage category | 3 |
| degree of pollution | 2 |
| type of voltage of the operating voltage | AC |
Supply voltage
| supply voltage — at AC | 230 V |
| value range of the supply voltage frequency | 50Hz |
Protection class
| protection class IP | IP20, with connected protective device and conductors |
Breaking Capacity
| switching capacity current — according to EN 60898-1 rated value | 6 000 A |
| switching capacity current — according to IEC 60947-2 rated value | 6 000 A |
| energy limitation class | 3 |
Dissipation
| power loss [W] for rated value of the current at AC in hot operating state per pole | 2.85 W |
Product details
| product feature halogen-free | Yes |
| product feature silicon-free | Yes |
| product extension installable supplementary devices | Yes |
| product function — communication function | No |
| product function — other measurement function | No |
Connections
| connectable conductor cross-section solid — minimum | 0.75 mm² |
| connectable conductor cross-section solid — maximum | 16 mm² |
| connectable conductor cross-section stranded — minimum | 0.75 mm² |
| connectable conductor cross-section stranded — maximum | 16 mm² |
| connectable conductor cross-section finely stranded with core end processing — minimum | 0.75 mm² |
| connectable conductor cross-section finely stranded with core end processing — maximum | 10 mm² |
| tightening torque with screw-type terminals — minimum | 1.2 N·m |
| tightening torque with screw-type terminals — maximum | 2 N·m |
| position of power supply cord | any |

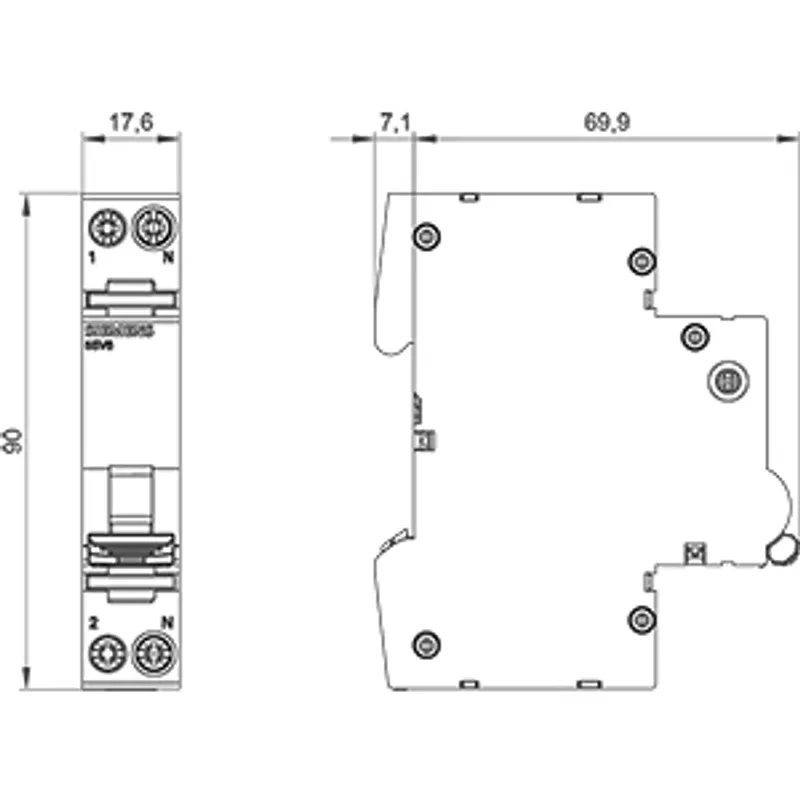

Mechanical Design
| height | 90 mm |
| width | 18 mm |
| depth | 68.5 mm |
| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | DIN rail |
| mounting position | any |
| Net Weight | 137 g |
Environmental conditions
| ambient temperature during operation — minimum | -25 °C |
| ambient temperature during operation — maximum | 45 °C |
| ambient temperature during storage — minimum | -40 °C |
| ambient temperature during storage — maximum | 75 °C |
| ambient temperature with relative humidity 95% | 55 °C |
| number of test cycles for environmental testing according to IEC 60068-2-30 | 28 |
Certificates
| reference code according to IEC 81346-2 | F |
No matching specifications
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
5SV6016-7KK40: frequently asked questions
When can 5SV6016-7KK40 be shipped?
5SV6016-7KK40 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5SV6016-7KK40 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5SV6016-7KK40 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SV6016-7KK40, subject to availability and destination.
