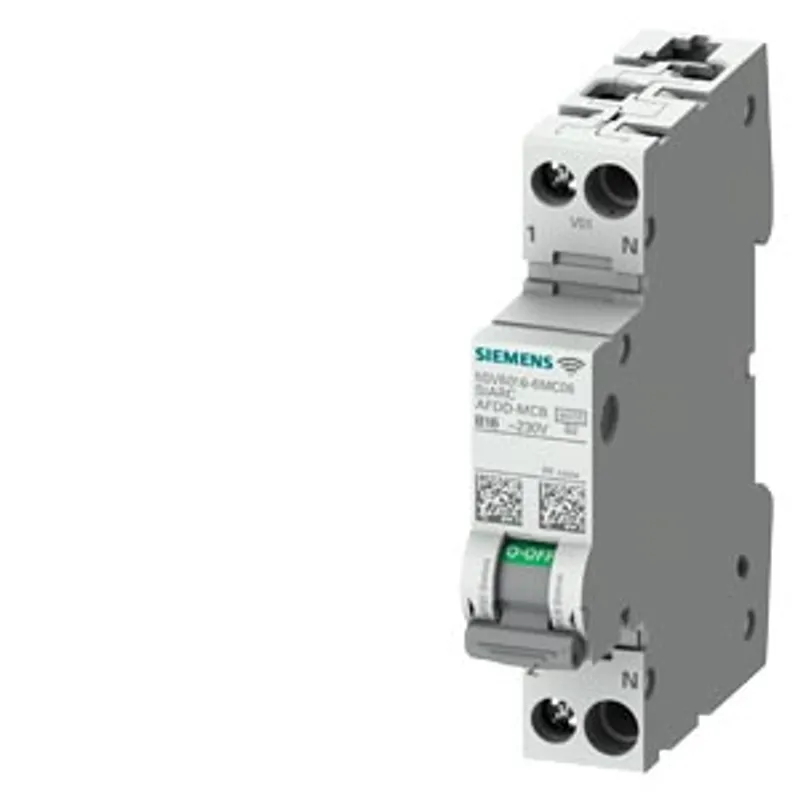

What is the Siemens 5SV6016-7MC06?

AFDD-MCB-Combination Measuring, Communication AC 230V 6kA, 1+N pole, C, 6A Please consider Radio approval! List of countries: see Certificates

Specifications

Model

product brand nameSENTRON
product designationAFDD/MCB
design of the productCompact unit
type of measured value detectionseamless

General technical data

number of poles2
design of pole1P+N
apparent power consumption of the power supply0.4 V·A
tripping characteristic classC
size of installation devices according to DIN 438801
touch protection against electrical shock according to EN 50274finger and back-of-hand safe
mechanical service life (operating cycles) typical10 000
measurable line frequency initial value45 Hz
measurable line frequency full-scale value60 Hz
switching function short-term delayedNo
overvoltage category3
degree of pollution2
status display of the measured datavoltage, current, active power, apparent power, reactive power, active energy, line frequency, power factor, temperature, switching cycles, operating hours, tripping, warnings
type of voltage of the operating voltageAC

Supply voltage

supply voltage — at AC230 V
supply voltage — for testing equipment minimum195 V
value range of the supply voltage frequency50Hz

Protection class

protection class IPIP20, with connected protective device and conductors
protection class IP — on the frontIP40
protection class IP — rear sideIP20

Breaking Capacity

switching capacity current — according to EN 60898-1 rated value6 000 A
switching capacity current — according to IEC 60947-2 rated value6 000 A
energy limitation class3

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole0.9 W
suitability for use ammeterYes
suitability for use reactive power meterYes
suitability for use frequency meterYes
suitability for use voltmeterYes
suitability for use wattmeterYes

Product details

product feature halogen-freeYes
product feature silicon-freeYes
product extension installable supplementary devicesYes
product function — communication functionYes
product function — other measurement functionYes

Communication

guideline via radio-controlled system2014/53/EU
frequency with radio transmission minimum2 400 MHz
frequency with radio transmission maximum2 483.5 MHz
protocol is supportedwireless protocol

Fault limits

standards for error limitsbased on IEC61557-12, IEC62053-22, IEC62053-23
relative symmetrical measurement uncertainty [%] — for measured variable current0.5 %
relative symmetrical measurement uncertainty [%] — for measured variable voltage0.5 %
relative symmetrical measurement uncertainty [%] — for measured variable electrical energy1 %
relative symmetrical measurement uncertainty [%] — for measured variable reactive power1 %
relative symmetrical measurement uncertainty [%] — for measured variable apparent power1 %
relative symmetrical measurement uncertainty [%] — for measured variable active power1 %

Measuring inputs

measurable supply voltage between (PE)N and L at AC — minimum185 V
measurable supply voltage between (PE)N and L at AC — maximum255 V
measuring category for voltage measurementCATIII according to IEC 61010-2-030
measuring procedure for current measurementTRMS
measuring procedure for voltage measurementTRMS

Connections

connectable conductor cross-section solid — minimum0.75 mm²
connectable conductor cross-section solid — maximum16 mm²
connectable conductor cross-section stranded — minimum0.75 mm²
connectable conductor cross-section stranded — maximum16 mm²
connectable conductor cross-section finely stranded with core end processing — minimum0.75 mm²
connectable conductor cross-section finely stranded with core end processing — maximum10 mm²
tightening torque with screw-type terminals — minimum1.2 N·m
tightening torque with screw-type terminals — maximum2 N·m
position of power supply cordany

Mechanical Design

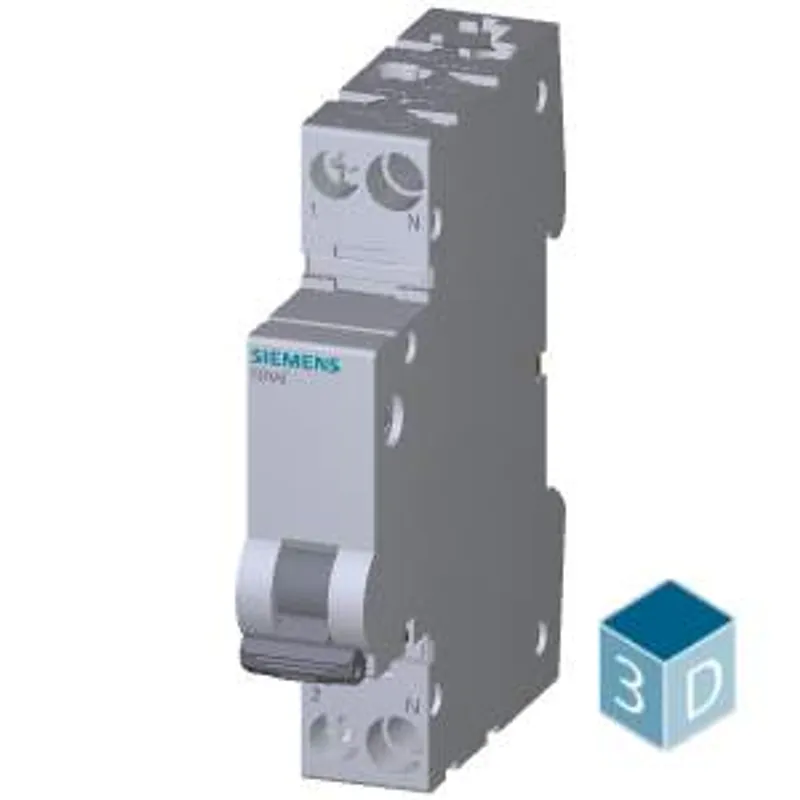

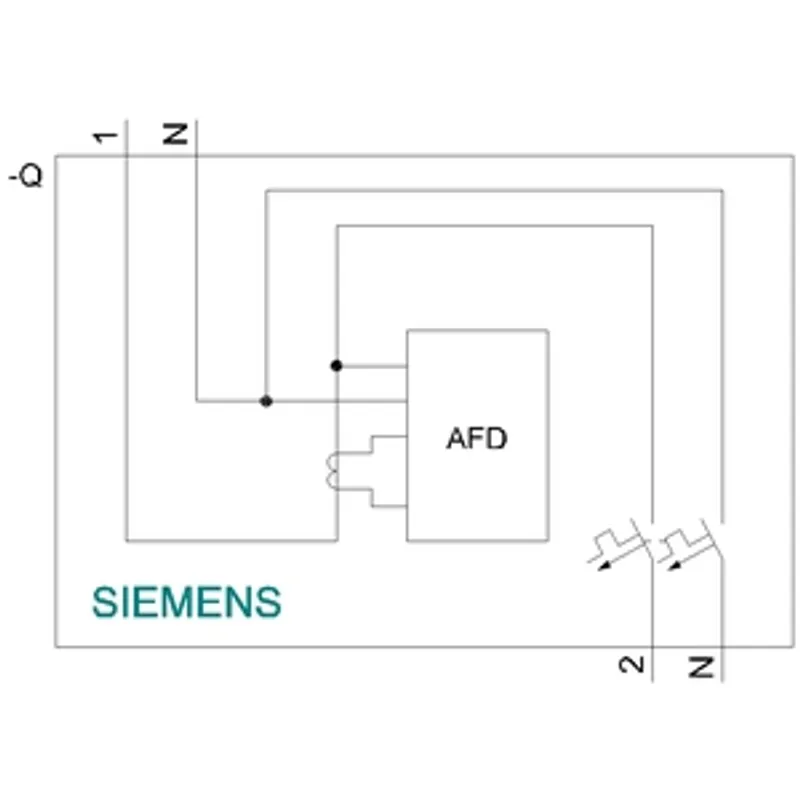

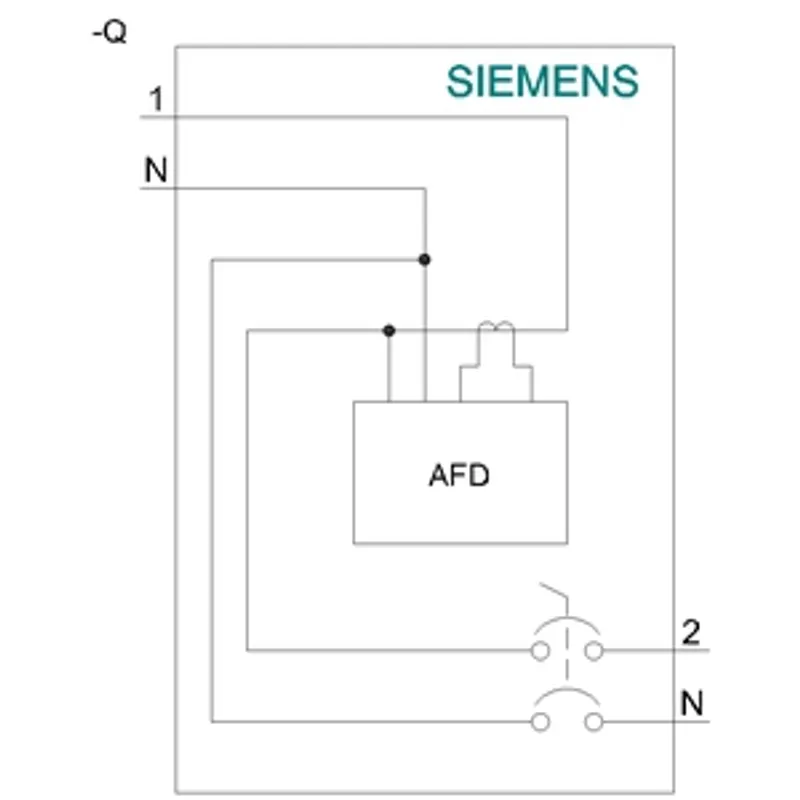

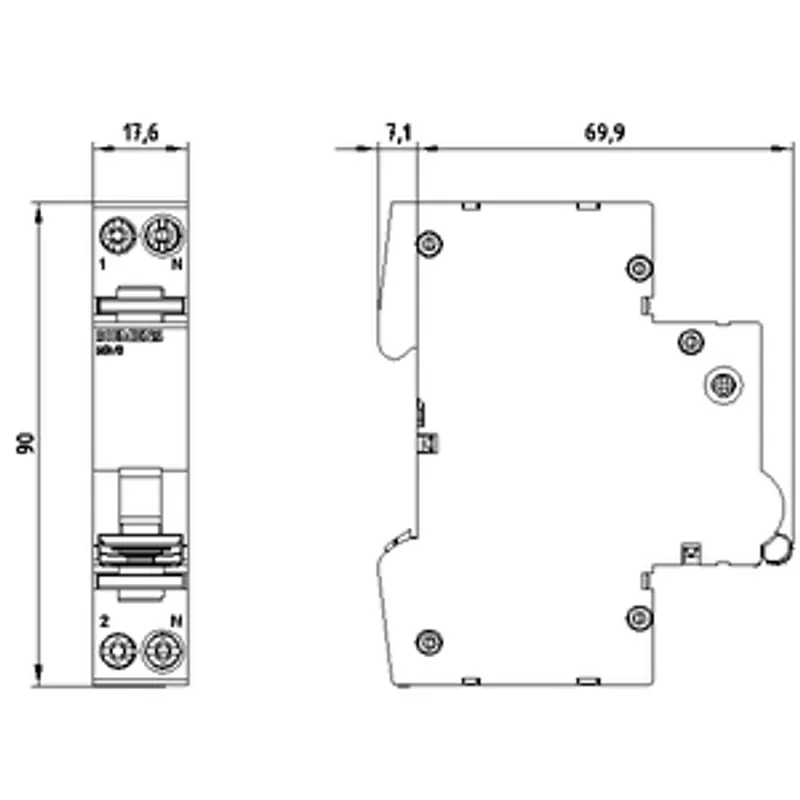

height90 mm
width18 mm
depth68.5 mm
installation depth70 mm
number of modular width units1
fastening methodDIN rail
mounting positionany
Net Weight138 g

Environmental conditions

standard for shocksIEC 61373
standard for environmental sinusoidal oscillation checkIEC 60068-2-6
ambient temperature during operation — minimum-25 °C
ambient temperature during operation — maximum60 °C
ambient temperature during storage — minimum-40 °C
ambient temperature during storage — maximum75 °C
ambient temperature with relative humidity 95%55 °C
number of test cycles for environmental testing according to IEC 60068-2-3028

Certificates

reference code according to IEC 81346-2F

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5SV6016-7MC06: frequently asked questions

When can 5SV6016-7MC06 be shipped?

5SV6016-7MC06 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
