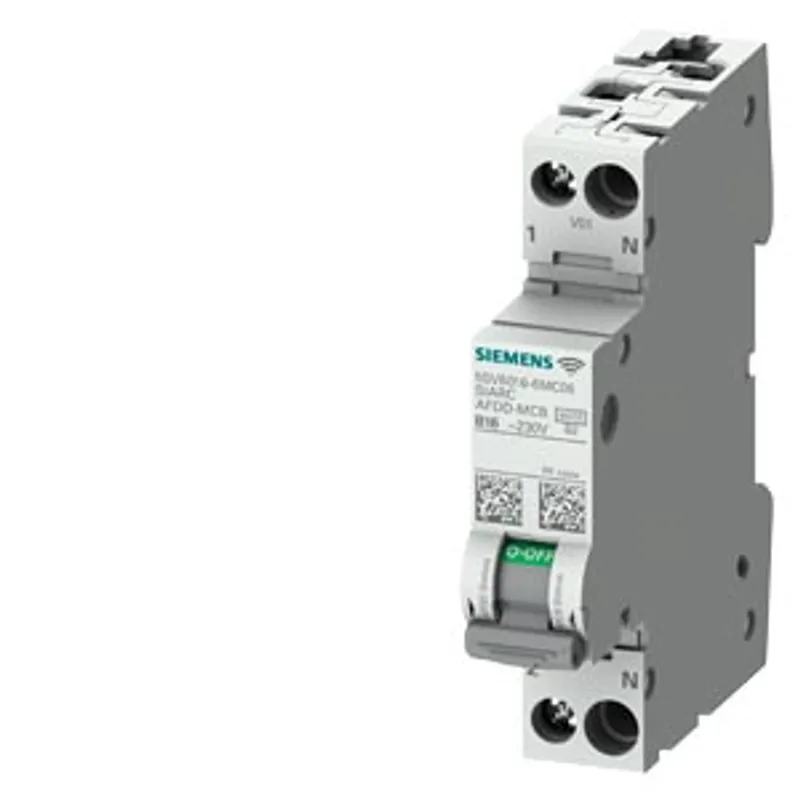

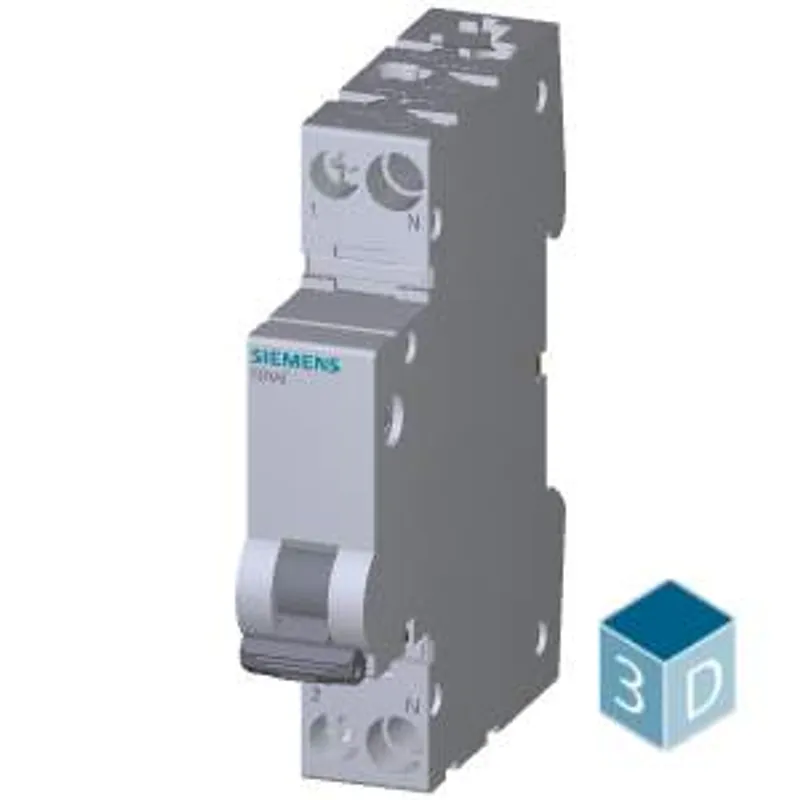

Siemens 5SV6016-6MC25
AFDD-MCB-Combination Measuring, Communication AC 230V 6kA, 1+N pole, B
- MPN
- 5SV6016-6MC25
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

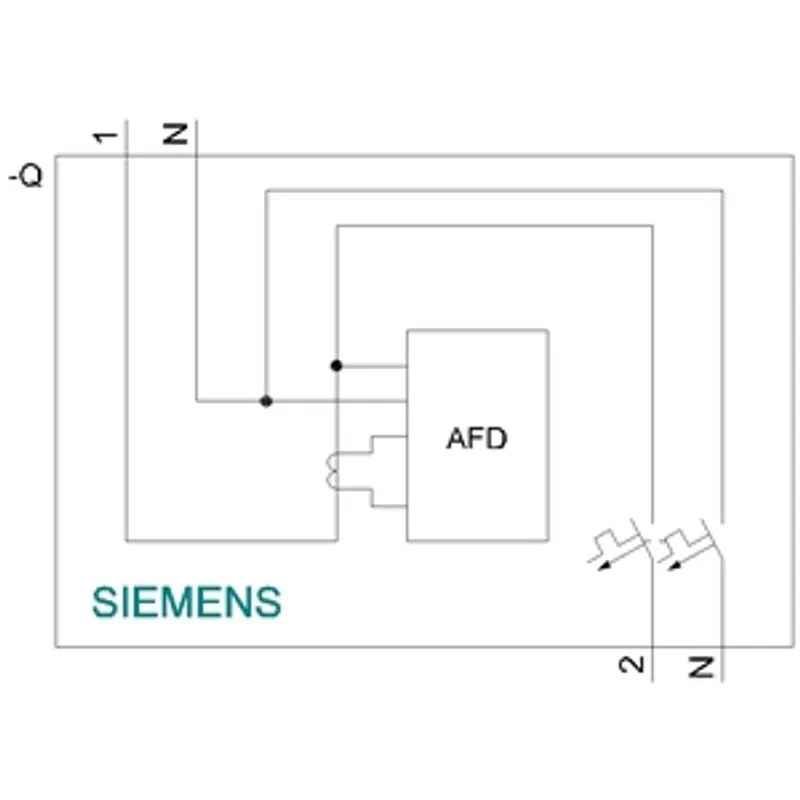

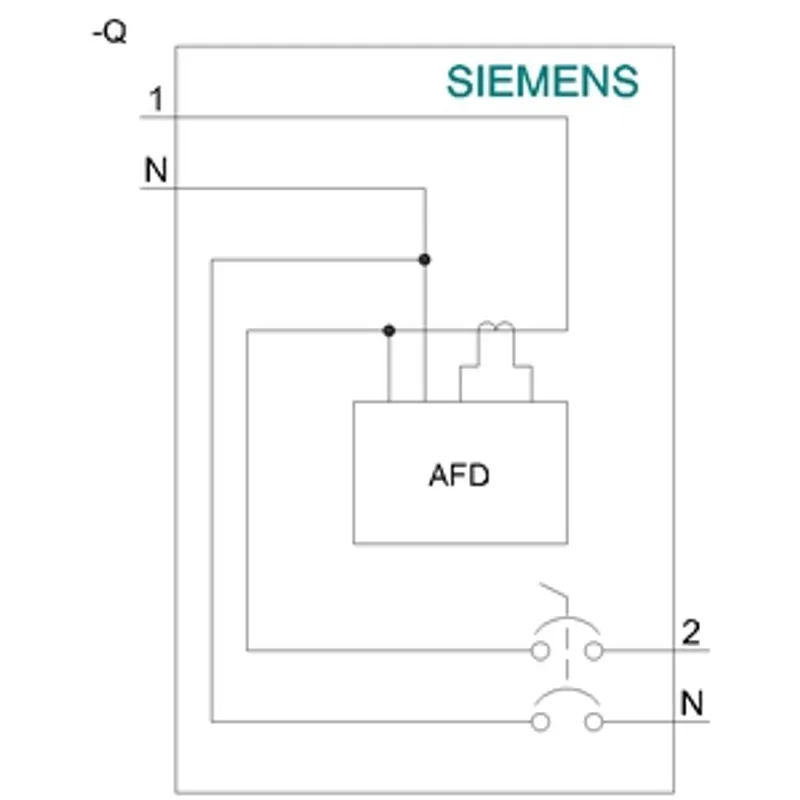

What is the Siemens 5SV6016-6MC25?
AFDD-MCB-Combination Measuring, Communication AC 230V 6kA, 1+N pole, B, 25A Please consider Radio approval! List of countries: see Certificates
Specifications
Model
| product brand name | SENTRON |
| product designation | AFDD/MCB |
| design of the product | Compact unit |
| type of measured value detection | seamless |
General technical data
| number of poles | 2 |
| design of pole | 1P+N |
| apparent power consumption of the power supply | 0.4 V·A |
| tripping characteristic class | B |
| size of installation devices according to DIN 43880 | 1 |
| touch protection against electrical shock according to EN 50274 | finger and back-of-hand safe |
| mechanical service life (operating cycles) typical | 10 000 |
| measurable line frequency initial value | 45 Hz |
| measurable line frequency full-scale value | 60 Hz |
| switching function short-term delayed | No |
| overvoltage category | 3 |
| degree of pollution | 2 |
| status display of the measured data | voltage, current, active power, apparent power, reactive power, active energy, line frequency, power factor, temperature, switching cycles, operating hours, tripping, warnings |
| type of voltage of the operating voltage | AC |
Supply voltage
| supply voltage — at AC | 230 V |
| supply voltage — for testing equipment minimum | 195 V |
| value range of the supply voltage frequency | 50Hz |
Protection class
| protection class IP | IP20, with connected protective device and conductors |
| protection class IP — on the front | IP40 |
| protection class IP — rear side | IP20 |
Breaking Capacity
| switching capacity current — according to EN 60898-1 rated value | 6 000 A |
| switching capacity current — according to IEC 60947-2 rated value | 6 000 A |
| energy limitation class | 3 |
Dissipation
| power loss [W] for rated value of the current at AC in hot operating state per pole | 3.4 W |
| suitability for use ammeter | Yes |
| suitability for use reactive power meter | Yes |
| suitability for use frequency meter | Yes |
| suitability for use voltmeter | Yes |
| suitability for use wattmeter | Yes |
Product details
| product feature halogen-free | Yes |
| product feature silicon-free | Yes |
| product extension installable supplementary devices | Yes |
| product function — communication function | Yes |
| product function — other measurement function | Yes |
Communication
| guideline via radio-controlled system | 2014/53/EU |
| frequency with radio transmission minimum | 2 400 MHz |
| frequency with radio transmission maximum | 2 483.5 MHz |
| protocol is supported | wireless protocol |
Fault limits
| standards for error limits | based on IEC61557-12, IEC62053-22, IEC62053-23 |
| relative symmetrical measurement uncertainty [%] — for measured variable current | 0.5 % |
| relative symmetrical measurement uncertainty [%] — for measured variable voltage | 0.5 % |
| relative symmetrical measurement uncertainty [%] — for measured variable electrical energy | 1 % |
| relative symmetrical measurement uncertainty [%] — for measured variable reactive power | 1 % |
| relative symmetrical measurement uncertainty [%] — for measured variable apparent power | 1 % |
| relative symmetrical measurement uncertainty [%] — for measured variable active power | 1 % |
Measuring inputs
| measurable supply voltage between (PE)N and L at AC — minimum | 185 V |
| measurable supply voltage between (PE)N and L at AC — maximum | 255 V |
| measuring category for voltage measurement | CATIII according to IEC 61010-2-030 |
| measuring procedure for current measurement | TRMS |
| measuring procedure for voltage measurement | TRMS |
Connections
| connectable conductor cross-section solid — minimum | 0.75 mm² |
| connectable conductor cross-section solid — maximum | 16 mm² |
| connectable conductor cross-section stranded — minimum | 0.75 mm² |
| connectable conductor cross-section stranded — maximum | 16 mm² |
| connectable conductor cross-section finely stranded with core end processing — minimum | 0.75 mm² |
| connectable conductor cross-section finely stranded with core end processing — maximum | 10 mm² |
| tightening torque with screw-type terminals — minimum | 1.2 N·m |
| tightening torque with screw-type terminals — maximum | 2 N·m |
| position of power supply cord | any |

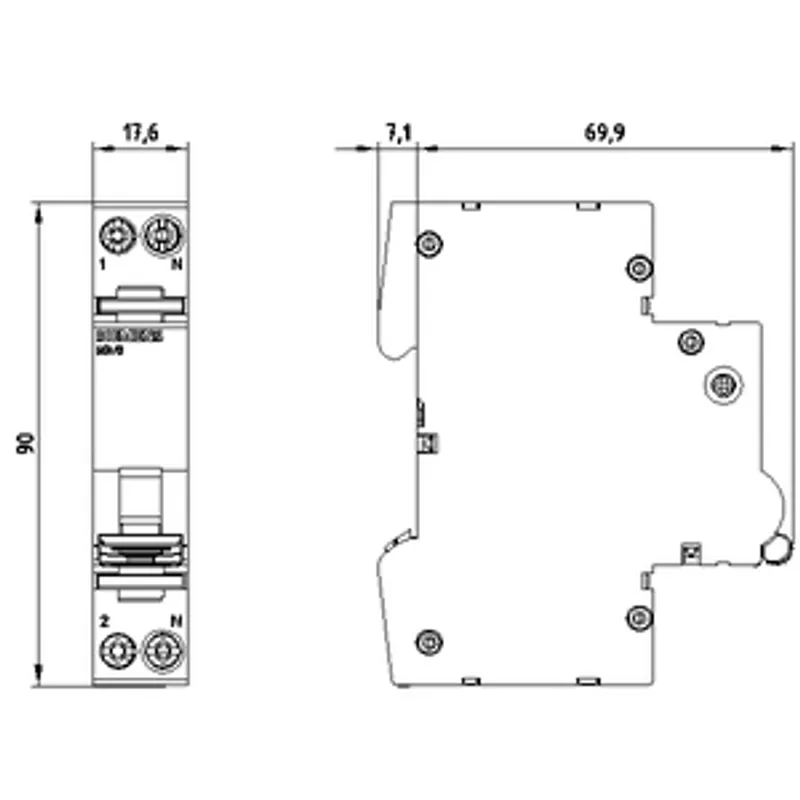

Mechanical Design
| height | 90 mm |
| width | 18 mm |
| depth | 68.5 mm |
| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | DIN rail |
| mounting position | any |
| Net Weight | 143 g |
Environmental conditions
| standard for shocks | IEC 61373 |
| standard for environmental sinusoidal oscillation check | IEC 60068-2-6 |
| ambient temperature during operation — minimum | -25 °C |
| ambient temperature during operation — maximum | 60 °C |
| ambient temperature during storage — minimum | -40 °C |
| ambient temperature during storage — maximum | 75 °C |
| ambient temperature with relative humidity 95% | 55 °C |
| number of test cycles for environmental testing according to IEC 60068-2-30 | 28 |
Certificates
| reference code according to IEC 81346-2 | F |
