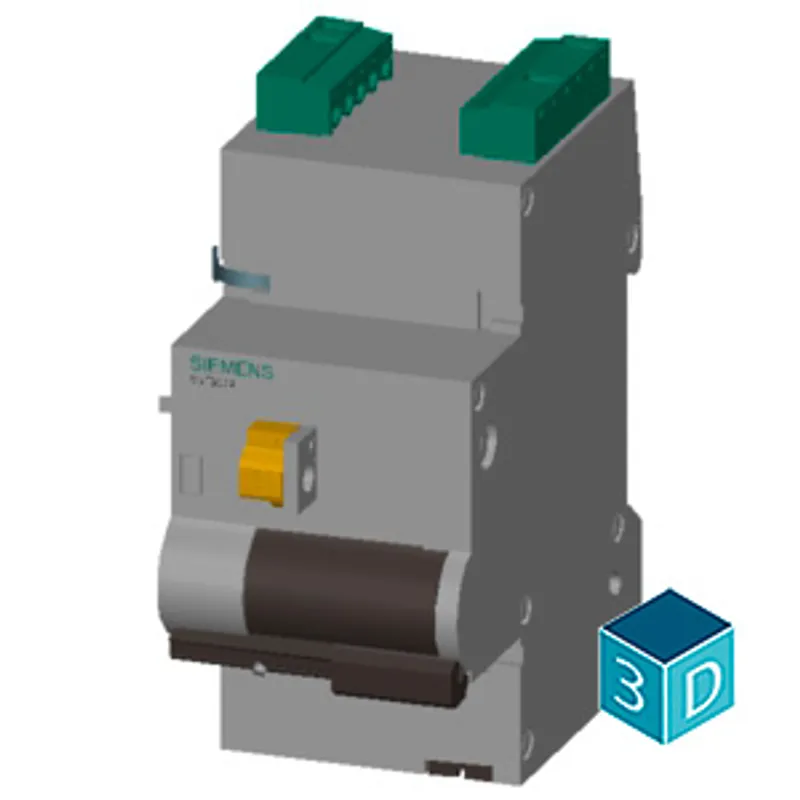

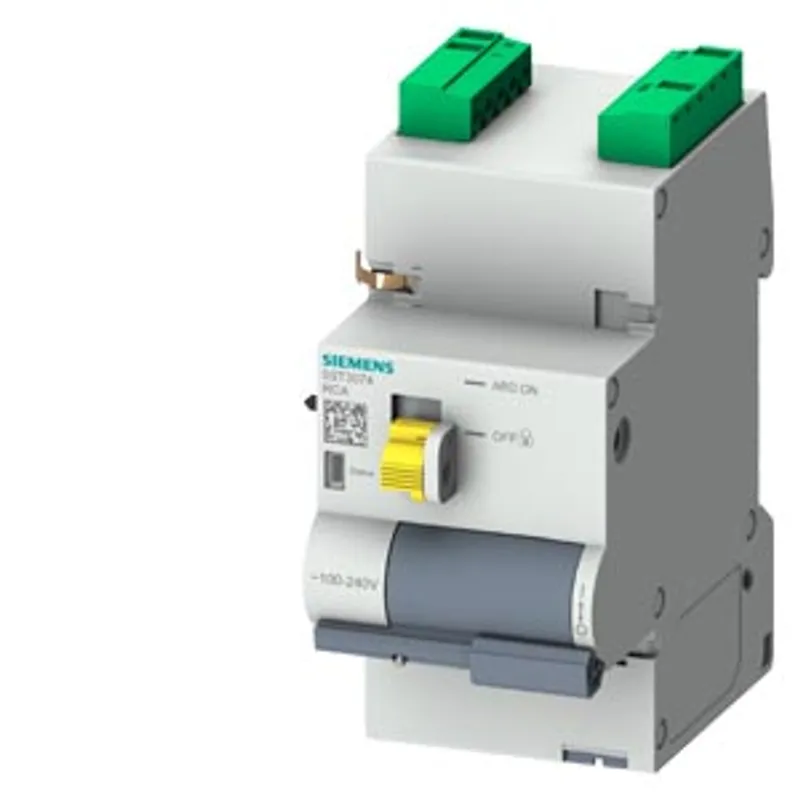

Siemens 5ST3074
Remote operating mechanism ARD with measurement of the insulation resistance; 100-240 V AC; 2.5 MW; for CB
- MPN
- 5ST3074
- Category
- Additional Components
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 5ST3074?
remote operating mechanism ARD with measurement of the insulation resistance; 100-240 V AC; 2.5 MW; for CB, RCCB, RC units, RCBO, ON/OFF switch
Specifications
Model
| product brand name | SENTRON |
| product designation | remote operating mechanism ARD with IR test |
| design of the product | Mountable |
| display version LED | Yes |
| design of the product factory mounted | No |
| electrical endurance (operating cycles) typical | 10 000 |
| overvoltage category | III |
Voltage
| insulation voltage rated value | 250 V |
| surge voltage resistance rated value | 4 kV |
Supply voltage
| operating voltage — rated value | 230 V |
| operating voltage — at AC rated value minimum | 100 V |
| operating voltage — at AC rated value maximum | 240 V |
| protection class IP | IP20 |
Dissipation
| power loss [V∙A] during standby | 1.5 W |
Control current
| type of voltage of control voltage | AC |
Product details
| product feature interlock | Yes |
| product component — fault signal contact | No |
| product component — auxiliary switch | No |
| number of fault signal contacts | 0 |
| number of NC contacts | 0 |
| number of NO contacts | 0 |
| number of CO contacts | 0 |
| product extension can be mounted | Universal |
| product extension | Remote operating mechanism ARD |
| number of remote reset per minute | 4 |
| number of attempts for automatic resetting (standard) | 3 |
| product function test function for fault current trip | No |
Connections
| wire length in the control circuit | 1 500 m |
| connectable conductor cross-section — minimum | 0.5 mm² |
| connectable conductor cross-section — maximum | 1.5 mm² |
| AWG number as coded connectable conductor cross section — minimum | 30 |
| AWG number as coded connectable conductor cross section — maximum | 14 |
| tightening torque with screw-type terminals — minimum | 0.2 N·m |
| tightening torque with screw-type terminals — maximum | 0 N·m |

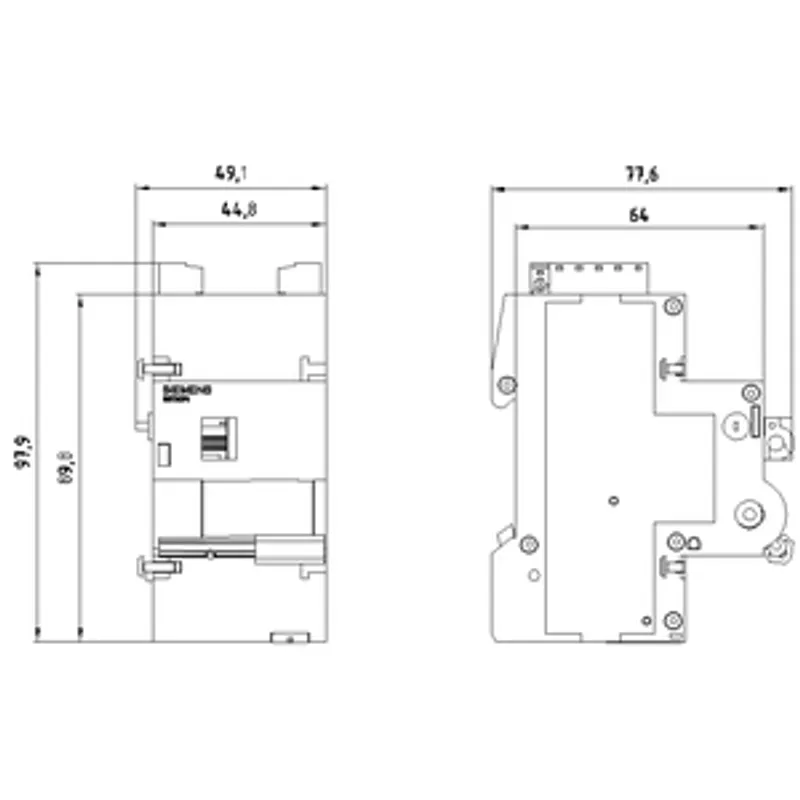

Mechanical Design
| height | 90 mm |
| width | 45 mm |
| depth | 72 mm |
| number of modular width units | 3 |
| Net Weight | 240 g |
Environmental conditions
| standard | IEC63024 |
| ambient temperature during operation — minimum | -40 °C |
| ambient temperature during operation — maximum | 70 °C |
| ambient temperature during storage minimum | -40 °C |
