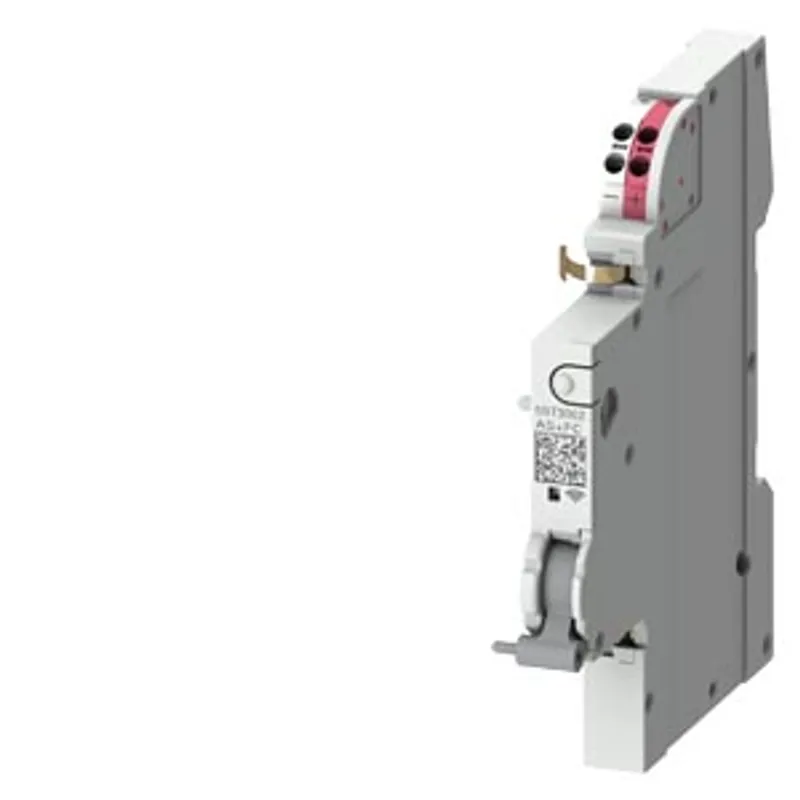

Siemens 5ST3062-0MC

5ST3 COM auxiliary switch

MPN
5ST3062-0MC
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5ST3062-0MC?

5ST3 COM auxiliary switch + fault signal contact, 0,5 MW for MCB, RCCB, RCBO, AFDD Disconnector 5TL1 Remote control mechanism Power supply DC 24V Please consider Radio approval! List of countries: see Certificates

Specifications

Model

product brand nameSENTRON
product designation5ST3 COM auxiliary switch / fault signal contact
design of the productMountable
display version LEDYes
design of the product factory mountedNo
electrical endurance (operating cycles) typical10 000
guideline via radio-controlled system2014/53/EU
frequency with radio transmission minimum2 400 MHz
frequency with radio transmission maximum2 483.5 MHz
status display of the measured datamanual ON/OFF, tripping, temperature, switching cycles, operating hours, warnings

Current

consumed current maximum20 mA

Supply voltage

supply voltage at DC rated value — minimum19.2 V
supply voltage at DC rated value — maximum28.8 V
operating voltage — rated value24 V
operating voltage — at DC rated value minimum19.2 V
operating voltage — at DC rated value maximum29 V
type of voltage of the supply voltage24 V DC SELV
protection class IPIP20

Dissipation

power loss [V∙A] during standby0.5 W

Control current

type of voltage of control voltageDC

Product details

product feature interlockNo
product component — fault signal contactYes
product component — auxiliary switchYes
number of fault signal contacts0
number of NC contacts0
number of NO contacts0
number of CO contacts0
product extension can be mountedUniversal
product extension5ST3 COM auxiliary switch / fault signal contact
product function test function for fault current tripNo

Connections

type of terminals screwlessyes
connectable conductor cross-section — minimum0.2 mm²
connectable conductor cross-section — maximum1.5 mm²
AWG number as coded connectable conductor cross section — minimum24
AWG number as coded connectable conductor cross section — maximum16

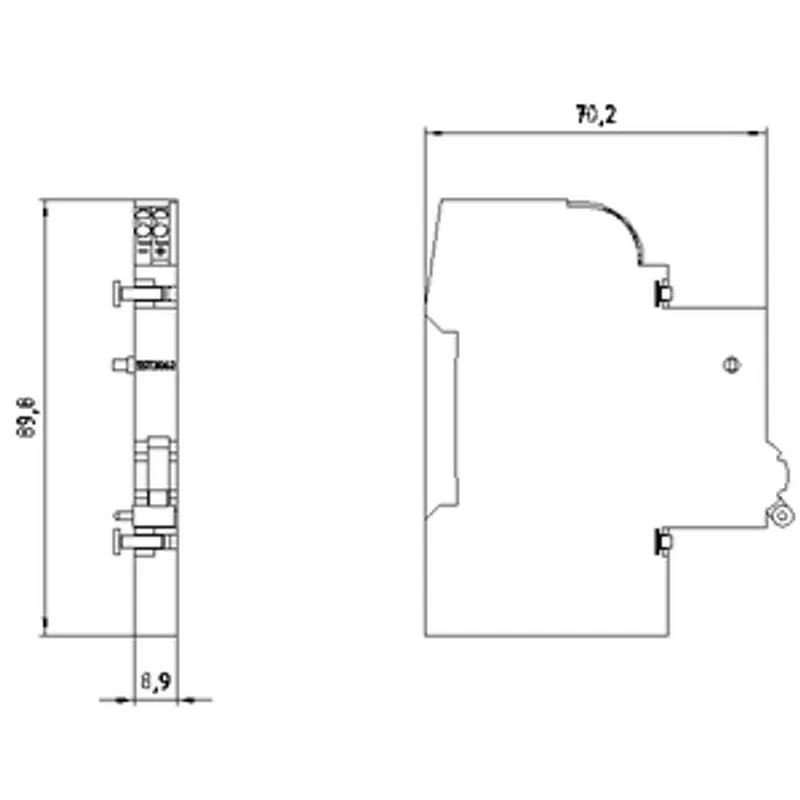

Mechanical Design

height90 mm
width9 mm
depth76.3 mm
number of modular width units1
Net Weight47 g

Environmental conditions

ambient temperature during operation — minimum-25 °C
ambient temperature during operation — maximum60 °C
ambient temperature during storage minimum-40 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5ST3062-0MC: frequently asked questions

When can 5ST3062-0MC be shipped?

5ST3062-0MC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5ST3062-0MC in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5ST3062-0MC and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ST3062-0MC, subject to availability and destination.
