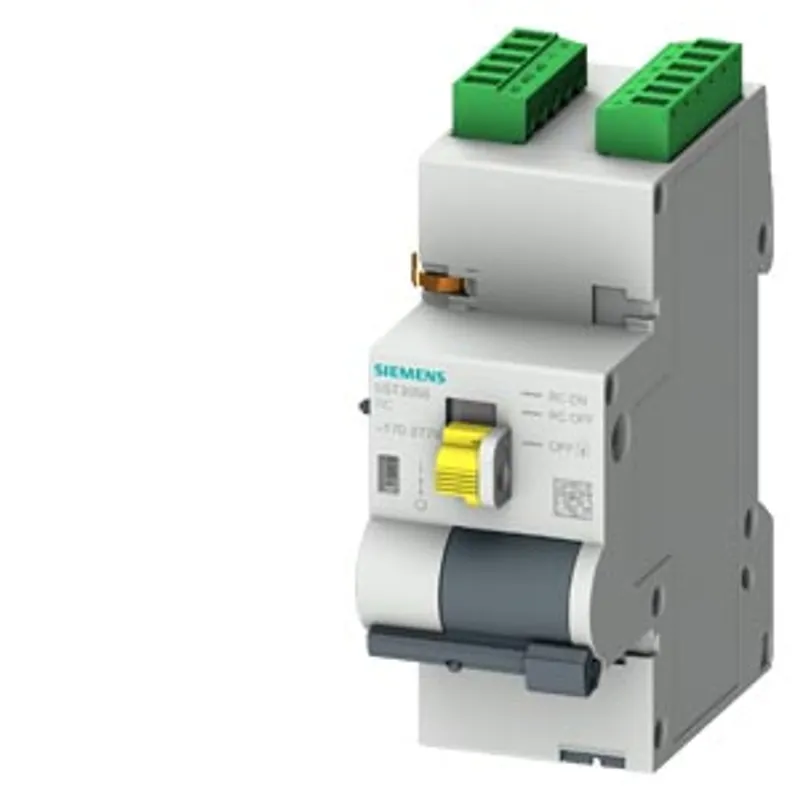

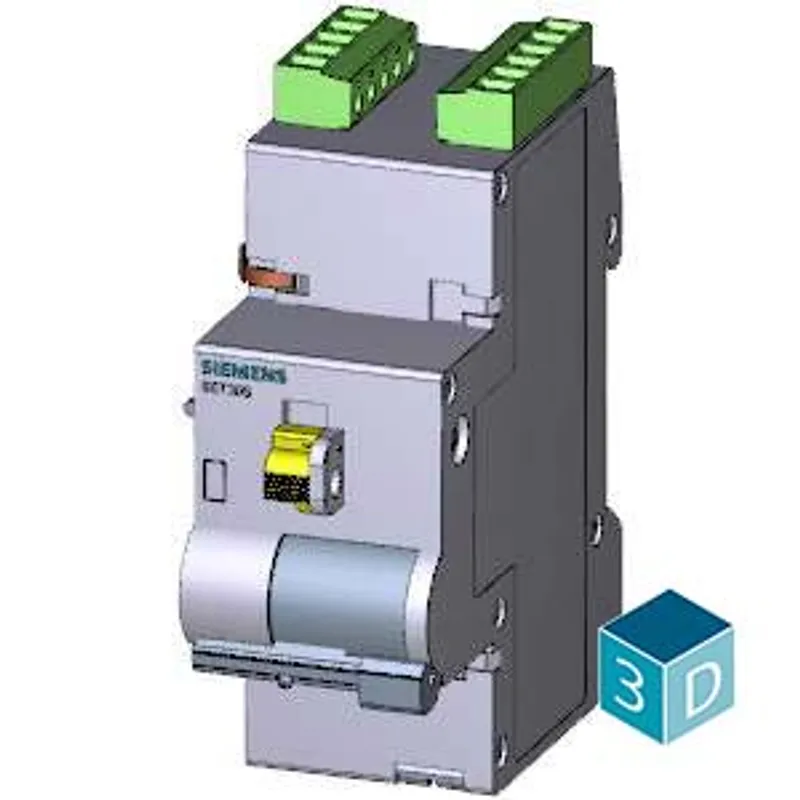

Siemens 5ST3057
Remote operating mechanism 5ST3 ARD 12-30 V AC / 12-48 V DC; 2 MW; for CB, RCCB, RC units, RCBO, ON/OFF switch
- MPN
- 5ST3057
- Category
- Additional Components
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 5ST3057?
remote operating mechanism 5ST3 ARD 12-30 V AC / 12-48 V DC; 2 MW; for CB, RCCB, RC units, RCBO, ON/OFF switch
Specifications
Model
| product brand name | SENTRON |
| product designation | Remote controlled mechanism Power + ARD |
| design of the product | Mountable |
| display version LED | Yes |
| design of the product factory mounted | No |
| electrical endurance (operating cycles) typical | 10 000 |
Supply voltage
| operating voltage — rated value | 24 V |
| operating voltage — at AC rated value minimum | 12 V |
| operating voltage — at AC rated value maximum | 30 V |
| operating voltage — at DC rated value minimum | 12 V |
| operating voltage — at DC rated value maximum | 48 V |
| protection class IP | IP20 |
Dissipation
| power loss [V∙A] during standby | 1 W |
Control current
| type of voltage of control voltage | AC/DC |
Product details
| product feature interlock | Yes |
| product component — fault signal contact | Yes |
| product component — auxiliary switch | Yes |
| number of fault signal contacts | 1 |
| number of NC contacts | 0 |
| number of NO contacts | 0 |
| number of CO contacts | 1 |
| design of the auxiliary switch | 1 CO contact, 2 A, 250 V AC |
| product extension can be mounted | Universal |
| product extension | Remote operating mechanism ARD |
| type of fault signal contact | 1 CO, 5 A, 250 V AC |
| number of remote reset per minute | 2 |
| number of attempts for automatic resetting (standard) | 3 |
Connections
| wire length in the control circuit | 1 500 m |
| connectable conductor cross-section — minimum | 0.5 mm² |
| connectable conductor cross-section — maximum | 1.5 mm² |
| AWG number as coded connectable conductor cross section — minimum | 30 |
| AWG number as coded connectable conductor cross section — maximum | 14 |
| tightening torque with screw-type terminals — minimum | 0.2 N·m |
| tightening torque with screw-type terminals — maximum | 0.25 N·m |

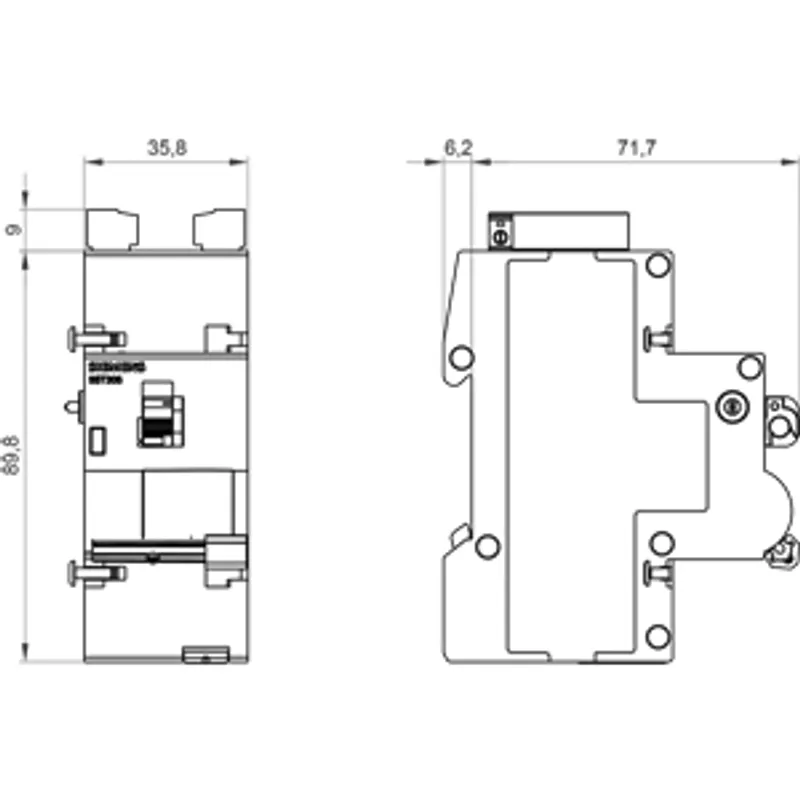

Mechanical Design
| height | 90 mm |
| width | 36 mm |
| depth | 70 mm |
| number of modular width units | 2 |
| Net Weight | 212.5 g |
Environmental conditions
| ambient temperature during operation — minimum | -25 °C |
| ambient temperature during operation — maximum | 45 °C |
| ambient temperature during storage minimum | -40 °C |
