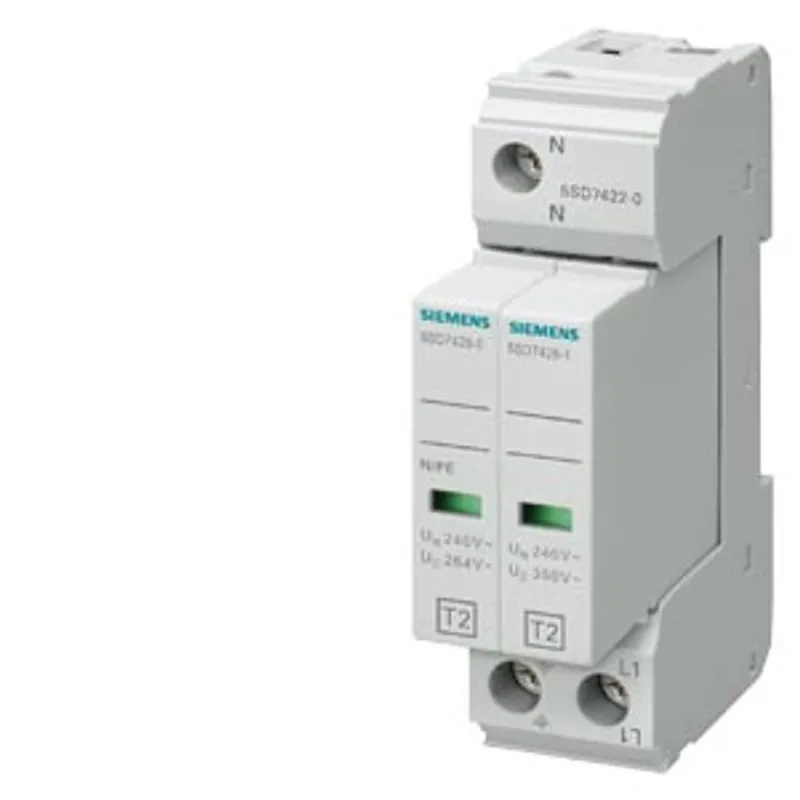

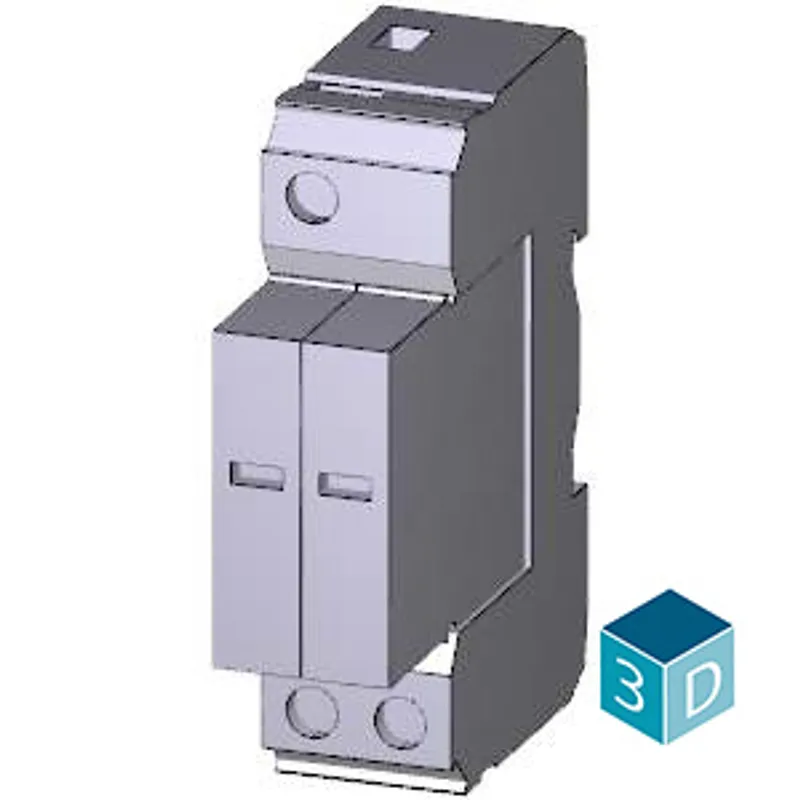

Siemens 5SD7422-0
Surge arrester type, 2, requirement class C, Uc 350 V, protective modules, plug-in, 2-pole
- MPN
- 5SD7422-0
- Category
- Basic devices
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 5SD7422-0?
surge arrester type, 2, requirement class C, Uc 350 V, protective modules, plug-in, 2-pole, 1+1 circuit for TN-S and TT systems, narrow design
Specifications
General data
| standard | IEC 61643-11: 2011, EN 61643-11: 2012 |
| product designation | Surge protection device |
| SPD classification according to EN 61643-11 — Test Class I, Type 1 | No |
| SPD classification according to EN 61643-11 — Test Class II, Type 2 | Yes |
| SPD classification according to EN 61643-11 — Test Class III, Type 3 | No |
| number of SPD ports | 1 |
| design of the product | Surge arrester |
| design of pole | 1+N/PE |
| designation of the protective paths | L-N, N-PE |
| accessories | 1 x 5SD7428-1 + 1 x 5SD7428-0 |
| fastening method | TH35 DIN rail |
| material of the enclosure | PBT |
| size of surge arrester | 1.4 MW |
| degree of pollution | 2 |
| overvoltage category according to IEC 61010-1 | III |
| protection class IP at connection all terminals | IP20 |
| shock acceleration | 30 gn |
| vibrational acceleration at 5 Hz ... 500 Hz limited to 2,5 h per axis | 5 gn |
| relative humidity during operation | 5 ... 95 % |
| installation altitude at height above sea level maximum | 2 000 m |

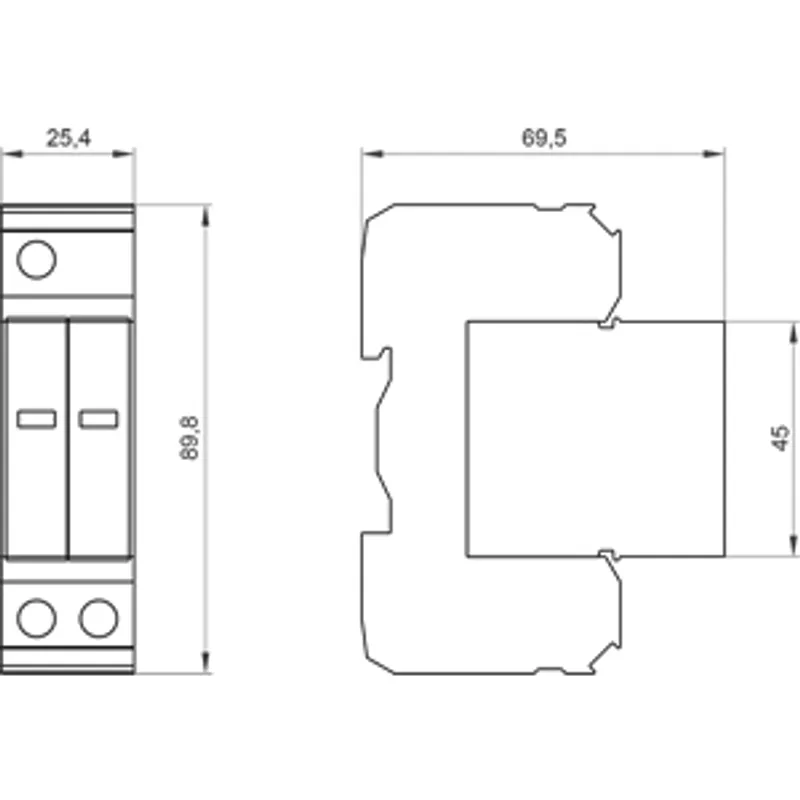

| width | 25.4 mm |
| height | 90 mm |
| depth | 71.5 mm |
Electrical data
| type of distribution system | TN-S, TT |
| operating voltage — at AC | 230 V |
| value range of the operating frequency | 50 / 60 Hz |
| continuous operating voltage — at AC maximum | 350 V |
| continuous operating voltage — between N and PE at AC maximum | 264 V |
| continuous operating voltage — between L and (PE)N at AC maximum | 350 V |
| discharge current at (8/20) µs | 20 kA |
| discharge current 1 phase at (8/20) µs maximum | 40 kA |
| follow current extinguishing capability — between N and PE | 100 A (264 V a.c.) |
| short-circuit rating (SCCR) at 264 V | 25 kA |
| protection level — maximum | 1.5 kV |
| protection level — between N and L | 1.4 kV |
| protection level — between PE and N and/or L | 1.5 kV |
| residual voltage — between L and (PE)N — at rated value of discharge current maximum | 1.5 kV |
| residual voltage — between L and (PE)N — at 10 kA maximum | 1.3 kV |
| residual voltage — between L and (PE)N — at 5 kA maximum | 1.2 kV |
| residual voltage — between L and (PE)N — at 4 kA maximum | 1.1 kV |
| residual voltage — between L and (PE)N — at 2 kA maximum | 1 kV |
| residual voltage — between N and PE — at rated value of discharge current maximum | 0.5 kV |
| residual voltage — between N and PE — at 10 kA maximum | 0.5 kV |
| residual voltage — between N and PE — at 5 kA maximum | 0.5 kV |
| residual voltage — between N and PE — at 4 kA maximum | 0.5 kV |
| residual voltage — between N and PE — at 2 kA maximum | 0.5 kV |
| response value of the surge voltage at 6 kV at (1.2/50) µs — between N and PE | 1.5 kV |
| response time between L and (PE)N | 25 ns |
| response time between N and PE | 100 ns |
| adjustable response factor of tripping current | 1.6 |
| fuse protection type at V-shaped connection | 63 A AC (gG) |
| fuse protection type for T-connector | 315 A AC (gG) |
Connections/ Terminals
| type of electrical connection | Screw terminal |
| stripped length | 16 mm |
| tightening torque | 4.3 ... 4.7 N·m |
| connectable conductor cross-section — for finely stranded conductor | 2.5 ... 16 mm² |
| connectable conductor cross-section — for rigid conductor | 2.5 ... 25 mm² |
| connectable conductor cross-section — finely stranded | 2.5 ... 16 mm² |
| AWG number as coded connectable conductor cross section | 12 ... 4 |
| design of the thread of the connection screw | M5 |
| signal design | Optical, remote signaling contact |
Indicator/remote signaling
| product component remote signaling contact | No |
NEMA/UL - Data
| type of surge protective device (SPD) according to UL | 4CA |
| type of distribution system according to UL | 1 |
| type of distribution system | TN-S, TT |
| designation of the protective paths according to UL | L-N, L-G, N-G |
| Measured Limiting Voltage (MLV) — between L and Ground (GND) | 2.08 kV |
| Measured Limiting Voltage (MLV) — between L and N | 2 kV |
| Measured Limiting Voltage (MLV) — between N and Ground (GND) | 0.95 kV |
| Maximum Continuous Operating Voltage (MCOV) — between L and Ground (GND) | 350 V |
| Maximum Continuous Operating Voltage (MCOV) — between L and N | 350 V |
| Maximum Continuous Operating Voltage (MCOV) — between N and Ground (GND) | 264 V |
| discharge current — between N and Ground (GND) according to UL rated value | 20 kA |
| discharge current — between L and N according to UL rated value | 20 kA |
| discharge current — between L and Ground (GND) according to UL rated value | 20 kA |
| AWG number as coded connectable conductor cross section — according to UL | 14 ... 2 |
| ambient temperature — during operation | -40 ... +80 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| installation altitude above sea level according to UL | 6 562 ft |
| combustibility class according to UL 94 | V0 |
| standards according to UL | UL 1449 edition 4 |
