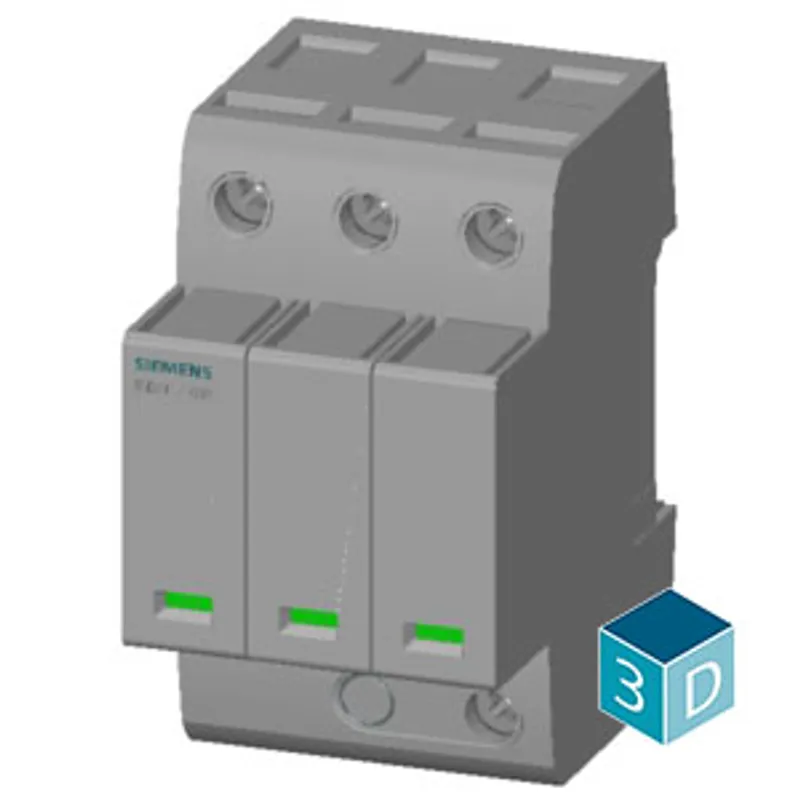

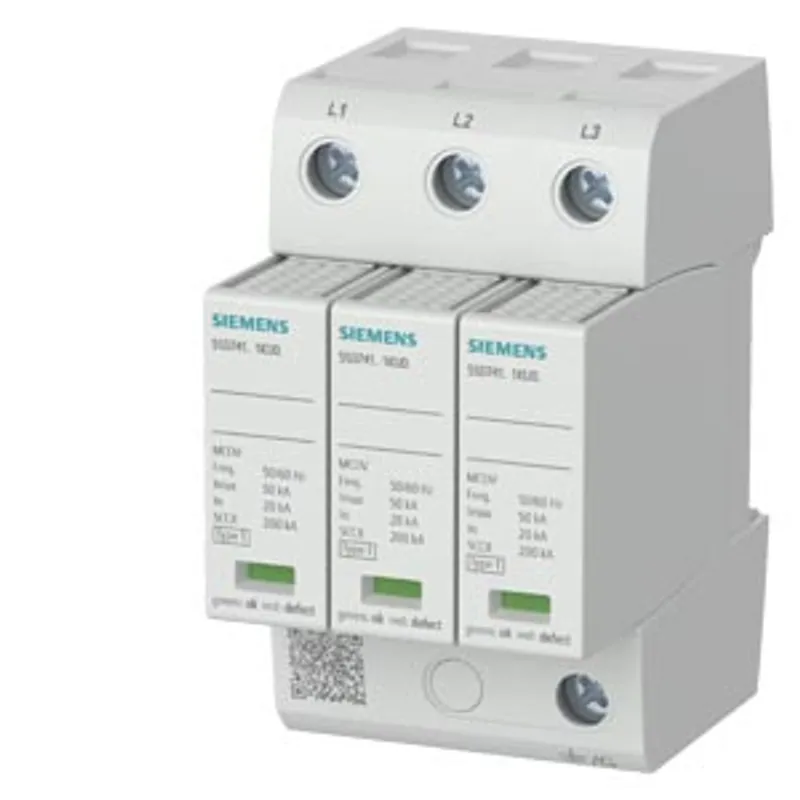

Siemens 5SD7413-1KU02

Surge arrester UL, type 1 3-pole

MPN
5SD7413-1KU02
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SD7413-1KU02?

surge arrester UL, type 1 3-pole, 480Y/277V (wye) with remote signaling contact The device only has cULus certification and no CE marking

Specifications

General data

number of SPD ports1
design of the productSurge arrester
design of pole3
fastening methodTH35 DIN rail
material of the enclosurethermoplast
size of surge arrester3 MW
protection class IP at connection all terminalsIP20
relative humidity during operation0 ... 95 %
installation altitude at height above sea level maximum2 000 m

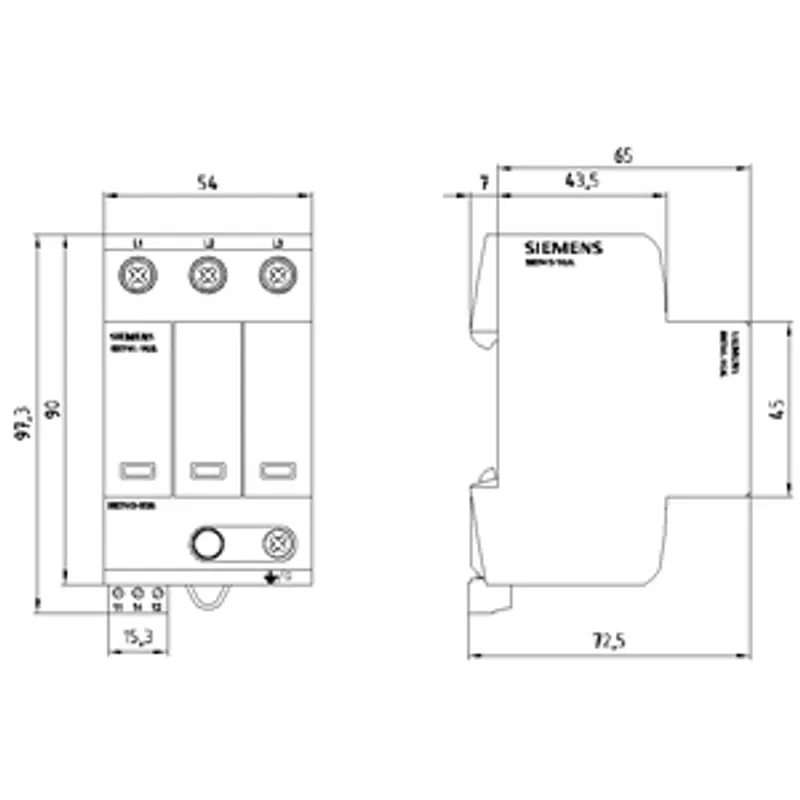

width54 mm
height90 mm
depth66 mm

Electrical data

operating voltage — at AC277 V
value range of the operating frequency50 / 60 Hz
discharge current 1 phase at (8/20) µs maximum50 kA
protection level — between L and L maximum2.5 kV
protection level — between L and PE maximum1.2 kV

Connections/ Terminals

type of electrical connectionScrew terminal
stripped length12 mm
tightening torque4 ... 5.1 N·m
connectable conductor cross-section — for finely stranded conductor2.5 ... 25 mm²
connectable conductor cross-section — for rigid conductor2.5 ... 25 mm²
connectable conductor cross-section — finely stranded2.5 ... 25 mm²
AWG number as coded connectable conductor cross section14 ... 4

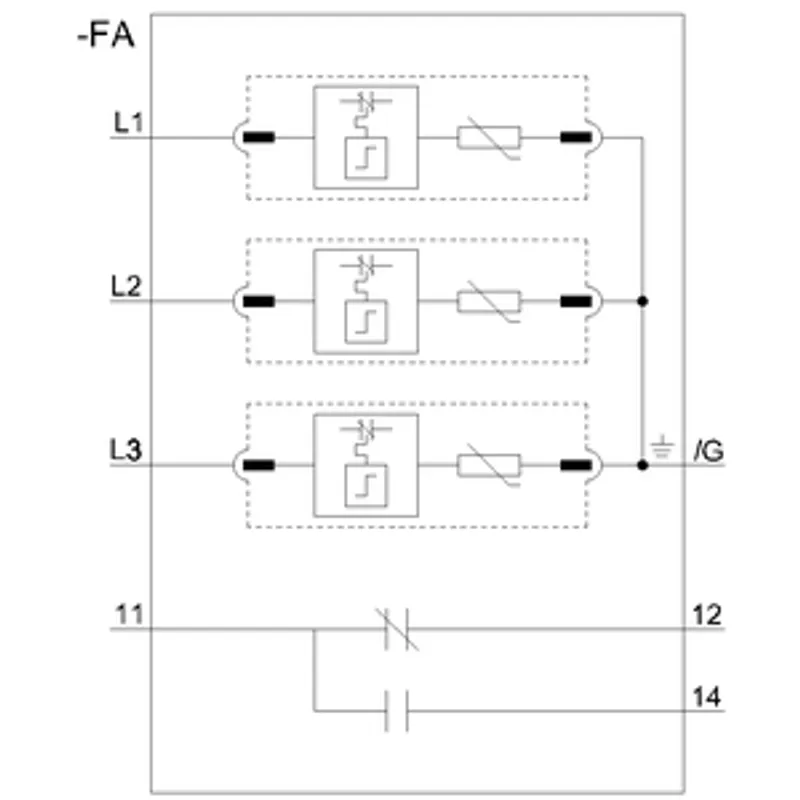

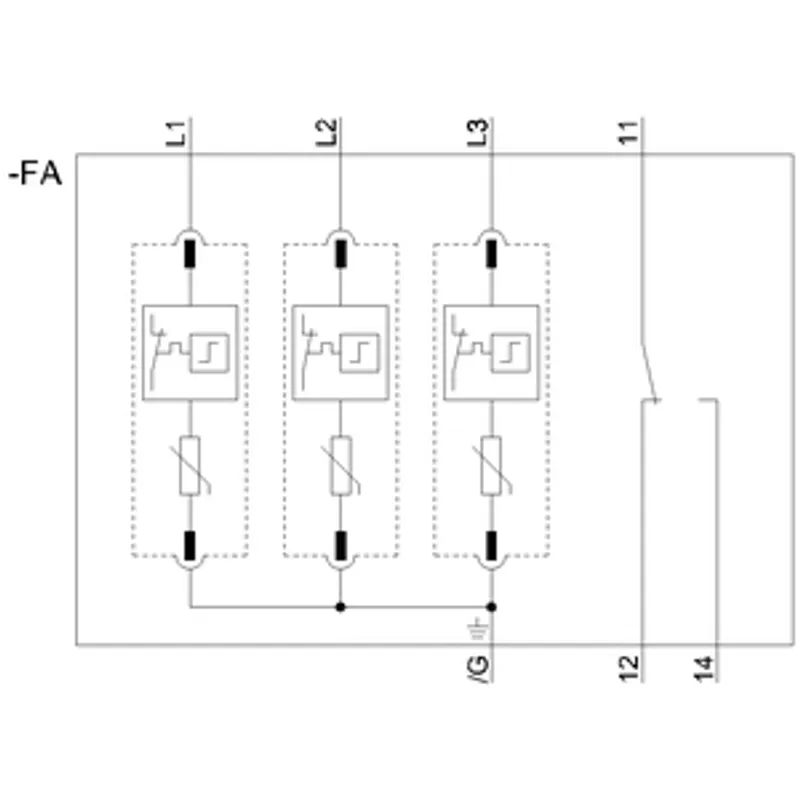

signal designOptical, remote signaling contact

Indicator/remote signaling

type of voltage supplyNEC class 2 circuits
product component remote signaling contactYes
switching function of the remote signaling contactschangeover contact
connectable conductor cross-section for remote signaling contacts for rigid conductor0.34 ... 1.5 mm²
connectable conductor cross-section for remote signaling contacts for finely stranded conductor0.34 ... 1.5 mm²
AWG number as coded connectable conductor cross section for remote signaling contacts22 ... 16
tightening torque for remote signaling contacts0.2 N·m

NEMA/UL - Data

short-circuit rating (SCCR) according to UL200 kA
type of surge protective device (SPD) according to ULopen type 1 SPD
Maximum Continuous Operating Voltage (MCOV) — between L and L770 V
Maximum Continuous Operating Voltage (MCOV) — between L and Ground (GND)385 V
discharge current — between L and Ground (GND) according to UL rated value20 kA
discharge current — between L and L according to UL rated value20 kA
tightening torque [lbf·in] — with screw-type terminals35 ... 45 lbf·in
tightening torque [lbf·in] — for remote signaling contacts3 lbf·in
stripped length [in]0.5 in
AWG number as coded connectable conductor cross section — according to UL14 ... 4
AWG number as coded connectable conductor cross section — for remote signaling contacts according to UL22 ... 16
ambient temperature — during operation-40 ... +85 °C
ambient temperature — during storage-40 ... +85 °C
installation altitude above sea level according to UL6 562 ft
combustibility class according to UL 94V0
standards according to ULUL 1449 Edition 5; CSA - C22.2 No. 269.1

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5SD7413-1KU02: frequently asked questions

When can 5SD7413-1KU02 be shipped?

5SD7413-1KU02 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5SD7413-1KU02 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5SD7413-1KU02 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SD7413-1KU02, subject to availability and destination.
