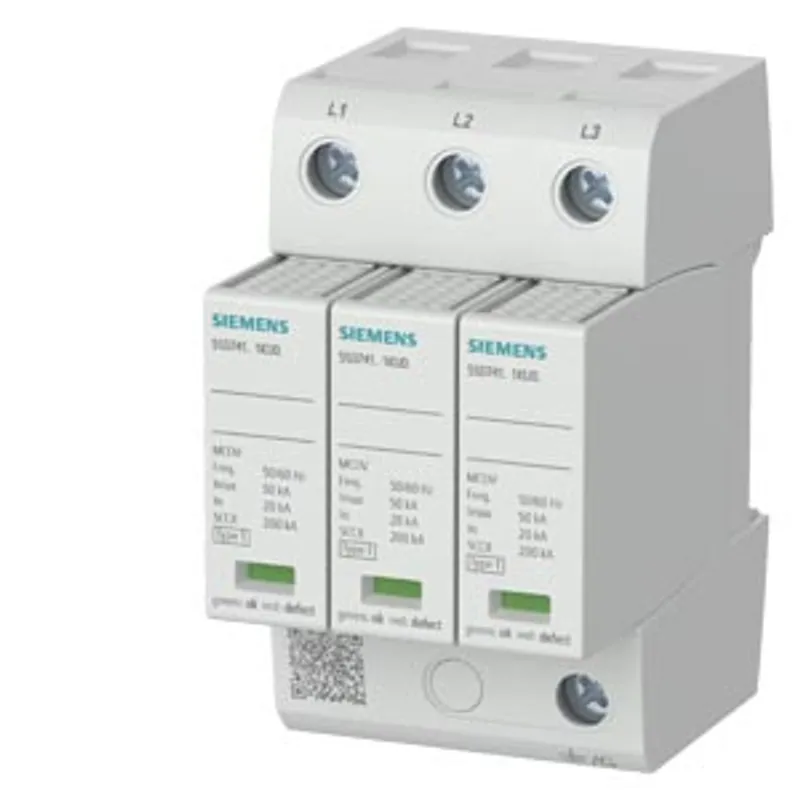

Siemens 5SD7413-1KU03
Surge arrester UL, type 1 3-pole
- MPN
- 5SD7413-1KU03
- Category
- Basic devices
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 5SD7413-1KU03?
surge arrester UL, type 1 3-pole, 600Y/347V (wye) with remote signaling contact The device only has cULus certification and no CE marking
Specifications
General data
| number of SPD ports | 1 |
| design of the product | Surge arrester |
| design of pole | 3 |
| fastening method | TH35 DIN rail |
| material of the enclosure | thermoplast |
| size of surge arrester | 3 MW |
| protection class IP at connection all terminals | IP20 |
| relative humidity during operation | 0 ... 95 % |
| installation altitude at height above sea level maximum | 2 000 m |

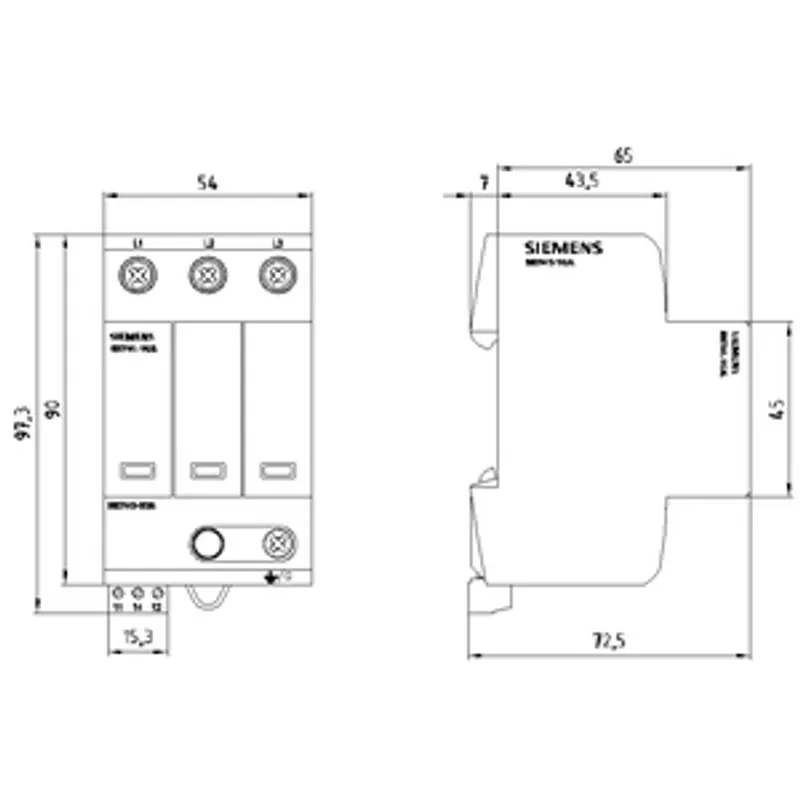

| width | 54 mm |
| height | 90 mm |
| depth | 66 mm |
Electrical data
| operating voltage — at AC | 347 V |
| value range of the operating frequency | 50 / 60 Hz |
| discharge current 1 phase at (8/20) µs maximum | 50 kA |
| protection level — between L and L maximum | 3 kV |
| protection level — between L and PE maximum | 1.5 kV |
Connections/ Terminals
| type of electrical connection | Screw terminal |
| stripped length | 12 mm |
| tightening torque | 4 ... 5.1 N·m |
| connectable conductor cross-section — for finely stranded conductor | 2.5 ... 25 mm² |
| connectable conductor cross-section — for rigid conductor | 2.5 ... 25 mm² |
| connectable conductor cross-section — finely stranded | 2.5 ... 25 mm² |
| AWG number as coded connectable conductor cross section | 14 ... 4 |
| signal design | Optical, remote signaling contact |
Indicator/remote signaling
| type of voltage supply | NEC class 2 circuits |
| product component remote signaling contact | Yes |
| switching function of the remote signaling contacts | changeover contact |
| connectable conductor cross-section for remote signaling contacts for rigid conductor | 0.34 ... 1.5 mm² |
| connectable conductor cross-section for remote signaling contacts for finely stranded conductor | 0.34 ... 1.5 mm² |
| AWG number as coded connectable conductor cross section for remote signaling contacts | 22 ... 16 |
| tightening torque for remote signaling contacts | 0.2 N·m |
NEMA/UL - Data
| short-circuit rating (SCCR) according to UL | 200 kA |
| type of surge protective device (SPD) according to UL | open type 1 SPD |
| Maximum Continuous Operating Voltage (MCOV) — between L and L | 1 020 V |
| Maximum Continuous Operating Voltage (MCOV) — between L and Ground (GND) | 510 V |
| discharge current — between L and Ground (GND) according to UL rated value | 20 kA |
| discharge current — between L and L according to UL rated value | 20 kA |
| tightening torque [lbf·in] — with screw-type terminals | 35 ... 45 lbf·in |
| tightening torque [lbf·in] — for remote signaling contacts | 3 lbf·in |
| stripped length [in] | 0.5 in |
| AWG number as coded connectable conductor cross section — according to UL | 14 ... 4 |
| AWG number as coded connectable conductor cross section — for remote signaling contacts according to UL | 22 ... 16 |
| ambient temperature — during operation | -40 ... +85 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| installation altitude above sea level according to UL | 6 562 ft |
| combustibility class according to UL 94 | V0 |
| standards according to UL | UL 1449 Edition 5; CSA - C22.2 No. 269.1 |
