Siemens 3SE6315-1BB02-1AP0

Contact-free safety switch RFID rectangular 106 mm x 25 mm individually encoded, multiple teach-in capability

MPN: 3SE6315-1BB02-1AP0
Category: 3SE63 RFID safety switches

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

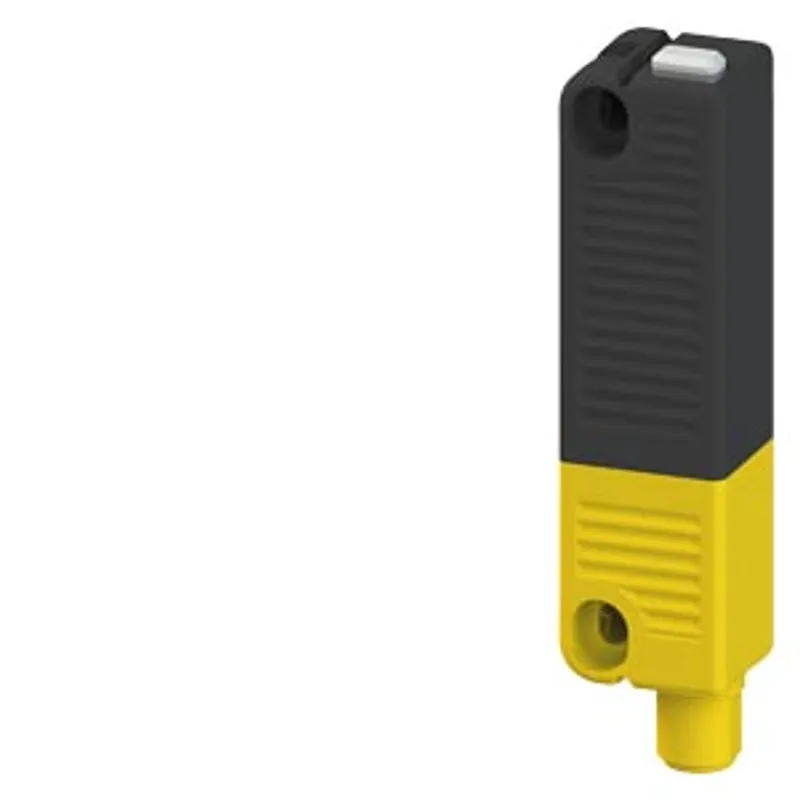

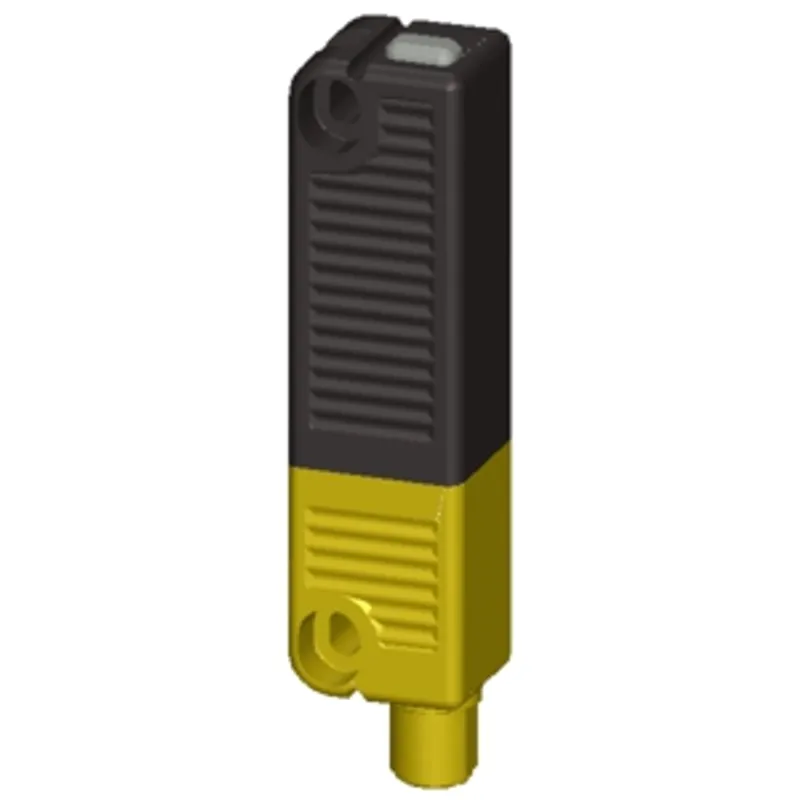

What is the Siemens 3SE6315-1BB02-1AP0?

contact-free safety switch RFID rectangular 106 mm x 25 mm individually encoded, multiple teach-in capability, with M12 plug 8-pole and magnet latching 18 N, order actuator separately: 3SE6310-1BC01

Specifications

General

product brand name	SIRIUS
product designation	RFID safety switch
design of the product	Rectangular sensor unit
product type designation	3SE63
suitability for use safety-related circuits	Yes

General technical data

product function — positive opening	No
product function — cross-circuit/short-circuit recognition	Yes
product feature	individually coded, learnable multiple times, with magnet latching
type of voltage of the operating voltage	DC
protection class IP	IP65, IP67, IP69k
shock resistance according to IEC 60068-2-27	Sinusoidal half-wave 30 g / 11 ms
vibration resistance according to IEC 60068-2-6	10 ... 55 Hz: 1 mm
Substance Prohibitance (day/month/year)	07/01/2006
Net Weight	0.11 kg
height of the sensor	22 mm
length of the sensor	106 mm
width of the sensor	25 mm
material of the active sensor area	plastic

Ambient conditions

ambient temperature during operation

-25 ... +70 °C

Control circuit/ Control

type of voltage	DC
operating voltage rated value	24 V
operational current rated value	600 mA

Enclosure

material of the enclosure	plastic
material of cable sheath	PVC

Actuator

design of the actuating element

RFID

Display

evaluation unit required

yes

Contact

switching frequency	1 Hz
operating distance	12 mm
assured operating distance OFF	16 mm
assured operating distance ON	10 mm
design of the switching function	positive switching
number of switching contacts for signaling function — safety-related	1

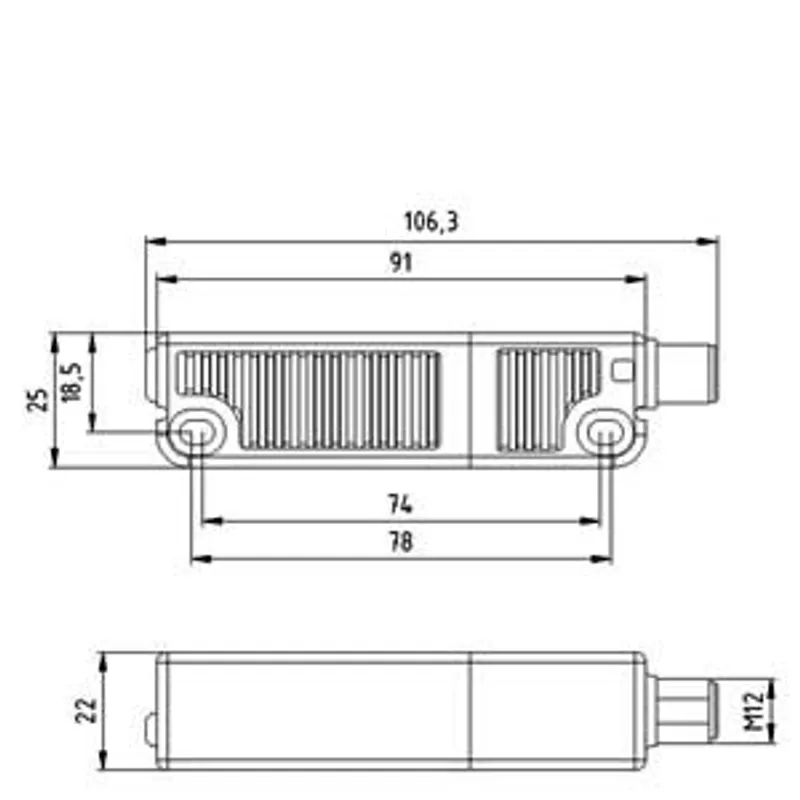

Installation/ mounting/ dimensions

fastening method

screw fixing

Connections/ Terminals

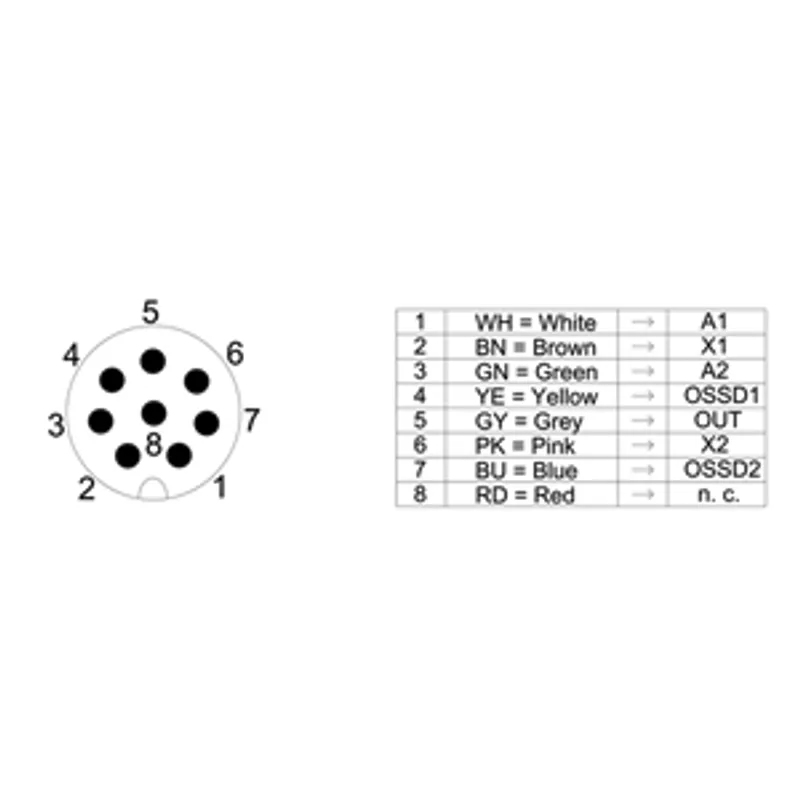

type of electrical connection	M12 plug, 8-pole
wire length maximum	30 m

Supply voltage

supply voltage

26.4 ... 20.4 V

Inputs/ Outputs

output current minimum	0.5 A
output current at safety-related output maximum	0.25 A
design of the interface for safety-related communication	connector M12
transmission frequency rated value	125 kHz

Safety related data

category according to EN 954-1	4
performance level (PL) according to EN ISO 13849-1	e
Safety Integrity Level (SIL) according to IEC 61508	3

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3SE6315-1BB02-1AP0PDF
