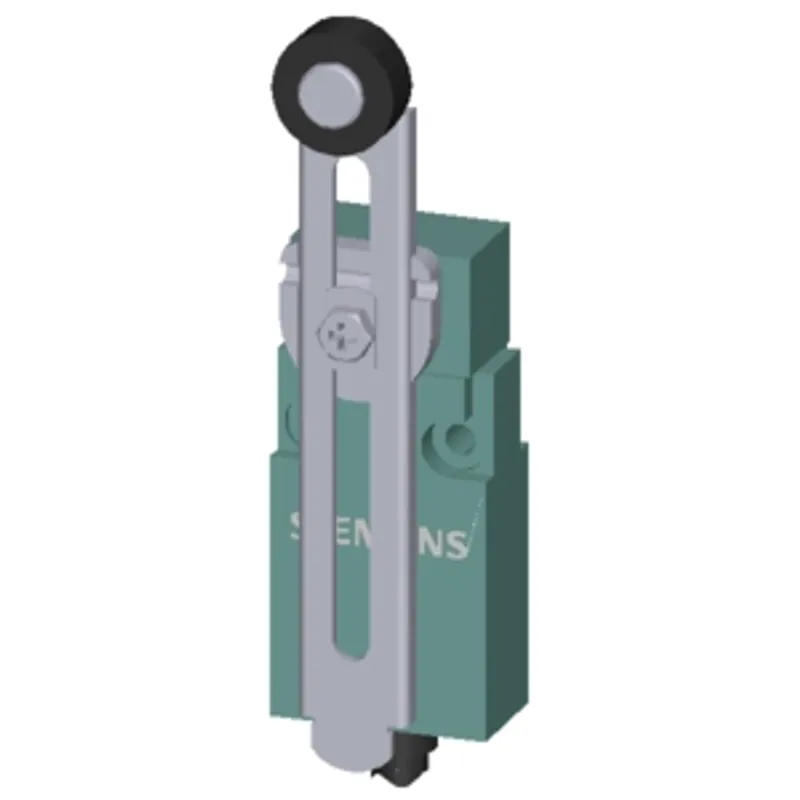

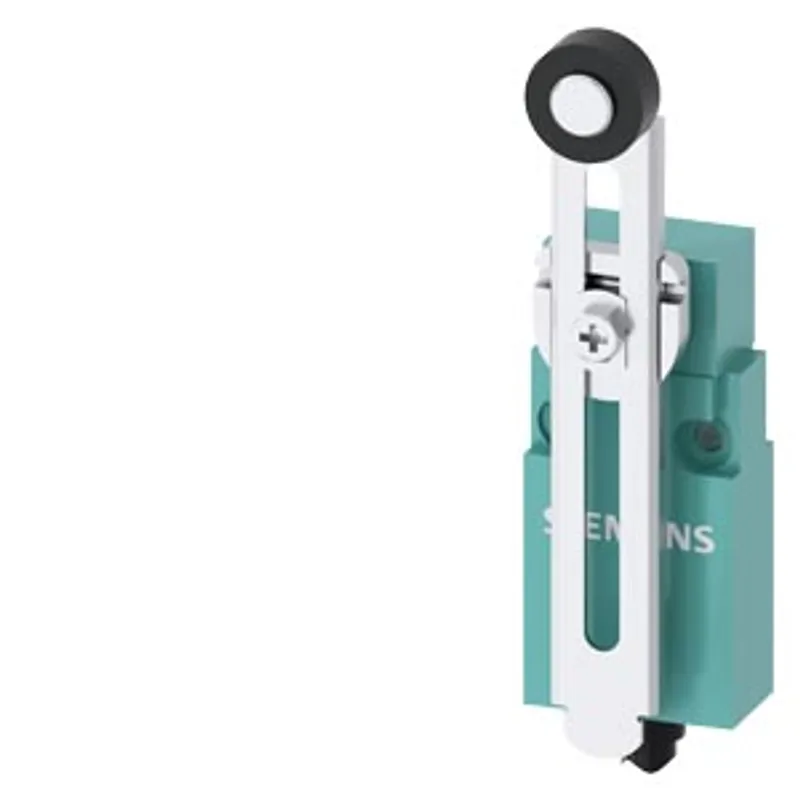

Siemens 3SE5413-0CQ20-1EA2
Position switch in compact design 30 mm wide with connection cable 2 m Snap-action contacts 1 NO+1 NC Twist…
- MPN
- 3SE5413-0CQ20-1EA2
- Category
- Compact design
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3SE5413-0CQ20-1EA2?
Position switch in compact design 30 mm wide with connection cable 2 m Snap-action contacts 1 NO+1 NC Twist lever, adjustable length
Specifications
General
| product brand name | SIRIUS |
| product designation | Mechanical position switches |
| product type designation | 3SE5 |
General technical data
| product function positive opening | No |
| insulation voltage rated value | 300 V |
| degree of pollution | 3 |
| protection class IP | IP67 |
| shock resistance — according to IEC 60068-2-27 | 30 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 0.35 mm/5 g |
| mechanical service life (operating cycles) typical | 5 000 000 |
| thermal current | 10 A |
| material of the enclosure of the switch head | metal |
| reference code according to IEC 81346-2 | B |
| active principle | mechanical |
| repeat accuracy | 0.05 mm |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| Net Weight | 0.354 kg |
| minimum actuating torque in directions of actuation | 0.2 N·m |
| length of the sensor | 145 mm |
| width of the sensor | 30 mm |
Ambient conditions
| ambient temperature — during operation | -25 ... +80 °C |
| ambient temperature — during storage | -25 ... +80 °C |
| explosion protection category for dust | none |
| design of the switching contact | mechanical |
| operating frequency rated value | 50 ... 60 Hz |

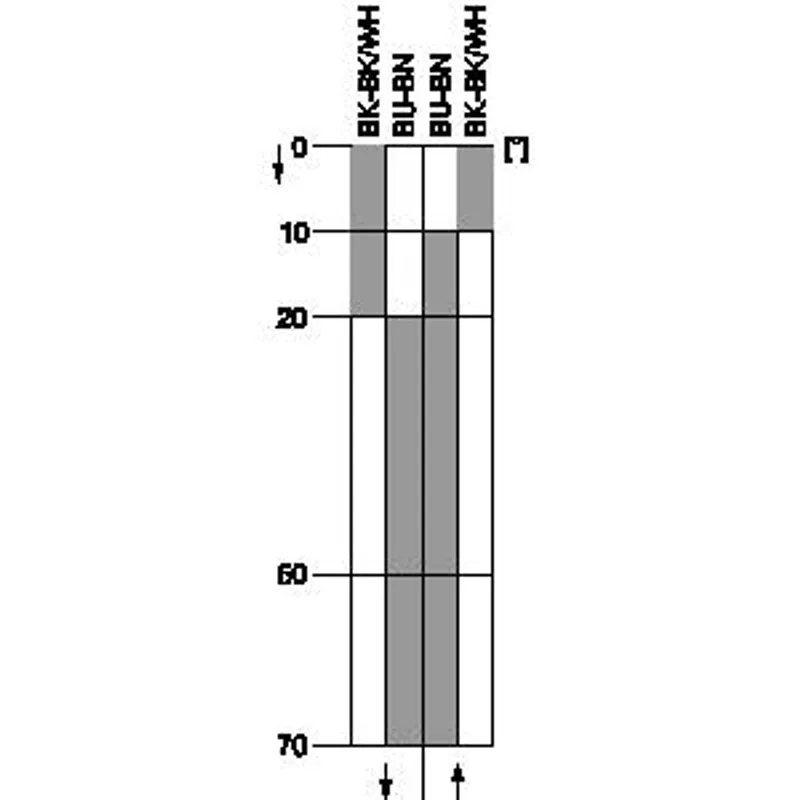

| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| operational current at AC-15 — at 125 V rated value | 3 A |
| operational current at AC-15 — at 230 V rated value | 3 A |
| operational current at DC-13 — at 125 V rated value | 0.27 A |
| operational current at DC-13 — at 230 V rated value | 0.27 A |
Enclosure
| design of the housing | block |
| material of the enclosure | metal |
| coating of the enclosure | painted |
| design of the housing according to standard | No |
| material of cable sheath | PVC |
Drive Head
| design of the actuating element | Metal lever, adjustable length, metal roller 18 mm |
| shape of the switch head | lever |
| design of the switching function | positive opening |
| circuit principle | snap-action contacts |
| number of switching contacts safety-related | 1 |

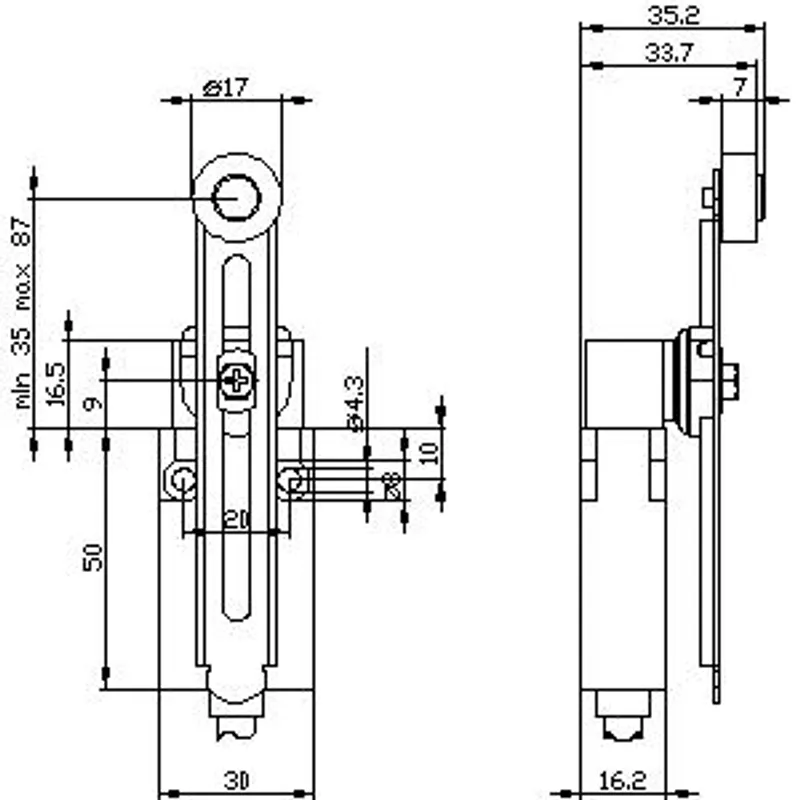

Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | screw fixing |
Connections/ Terminals
| type of electrical connection | cable, 5 x 0.75mm² |
| design of the interface for safety-related communication | without |
Communication/ Protocol
| design of the interface | without |
