Siemens 3SE6415-1CB01
RFID safety switch with tumbler, plastic, with escape release, red levers mountable on two sides
- MPN
- 3SE6415-1CB01
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

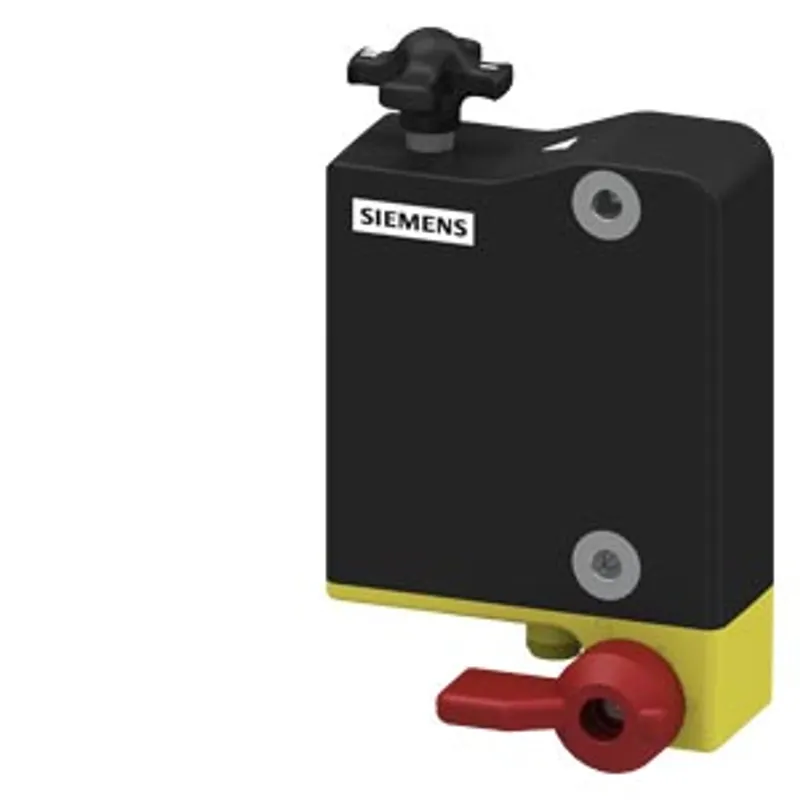

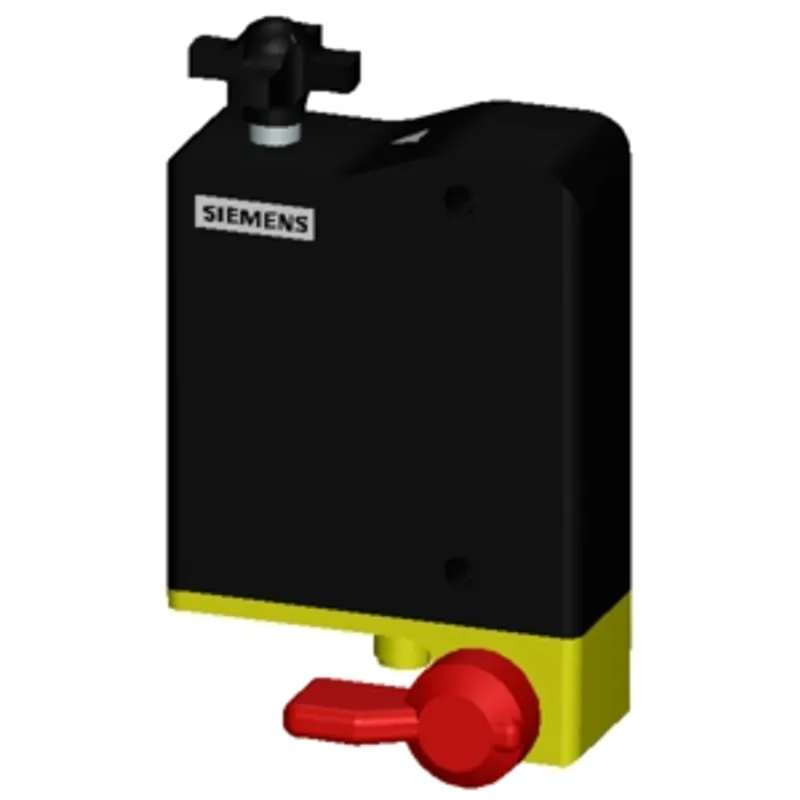

What is the Siemens 3SE6415-1CB01?
RFID safety switch with tumbler, plastic, with escape release, red levers mountable on two sides, quiescent current principle, tumbler monitoring, 24 V DC, IP69, locking force 1150 N, family-encoded, diagnostics output, M12 plug 8-pole, 3 LEDs for display of the operating states, 3 directions of actuation, latching force with turnstile adjustable: 25 N or 50 N, hygienic design, actuator 3SE6410-1AC01 to be ordered separately
Specifications
General
| product brand name | SIRIUS |
| product category | Non-contact safety switch |
| product designation | RFID safety switch with tumbler |
| design of the product | rectangular sensor unit |
| product type designation | 3SE64 |
Product Function
| product function — positive opening | No |
| product function — control function for downstream devices | No |
| product function — cross-circuit/short-circuit recognition | Yes |
| suitability for use safety-related circuits | Yes |
General technical data
| product feature | family-coded, catch 25N/50N |
| product feature suitable for series connection | Yes |
| locking force | 1 500 N |
| locking force — according to EN ISO 14119 | 1 150 N |
| design of the RFID coding | universal coding |
| insulation voltage rated value | 32 V |
| degree of pollution according to EN 60664-1 | 3 |
| overvoltage category | Class III |
| surge voltage resistance rated value | 0.8 kV |
| no-load current rated value | 100 mA |
| protection class IP | IP66 in accordance with EN 60529 IP67 in accordance with EN 60529 IP69 in accordance with EN 60529 |
| shock resistance — according to IEC 60068-2-27 | 30 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 10 ... 150 Hz, amplitude 0.35 mm |
| switching frequency | 0.5 Hz |
| mechanical service life (operating cycles) typical | 1 000 000 |
| mechanical service life (operating cycles) typical — note | when used as door stop: ≥ 50,000 switching cycles (door masses ≤ 5 kg and actuating speed ≤ 0.5 m/s) |
| relative ON period [%] of magnet coil | 100 % |
| reference code according to IEC 81346-2 | B |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| Net Weight | 0.63 kg |
Sensor
| height of the sensor | 55 mm |
| length of the sensor | 146 mm |
| width of the sensor | 87.5 mm |
Ambient conditions
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature — during operation | 0 ... 60 °C |
| ambient temperature — during storage and transport | -10 ... +90 °C |
| operating resource protection class according to IEC 61140 | III |
| relative humidity during operation maximum | 93 % |
| relative humidity during operation maximum — note | non-condensing, non-icing |
Control circuit/ Control
| current consumption of magnet coil rated value | 100 mA |
| pickup current peak of magnet coil | 250 mA |
| duration of pickup current peak | 200 ms |
Main circuit
| operating voltage rated value | 24 V |
| operational current rated value | 250 mA |
Enclosure
| design of the housing | special design |
| material of the enclosure | plastic, fiberglass reinforced thermoplast, self-extinguishing |
Actuator
| Product equipment auxiliary release of guard locking | Yes |
| product feature latching | Yes |
| locking mechanism design | quiescent current principle |
| detent force adjustable 1 | 25 N |
| detent force adjustable 2 | 50 N |
| angular offset between guard locking and actuator maximum | 2° |
Display
| product function status display | Yes |
| display version as status display by LED | 3 LEDs |
Contact
| circuit principle | spring-actuated lock (closed-circuit principle) |
| operating distance | 2 mm |
| assured operating distance OFF | 20 mm |
| assured operating distance ON | 1 mm |

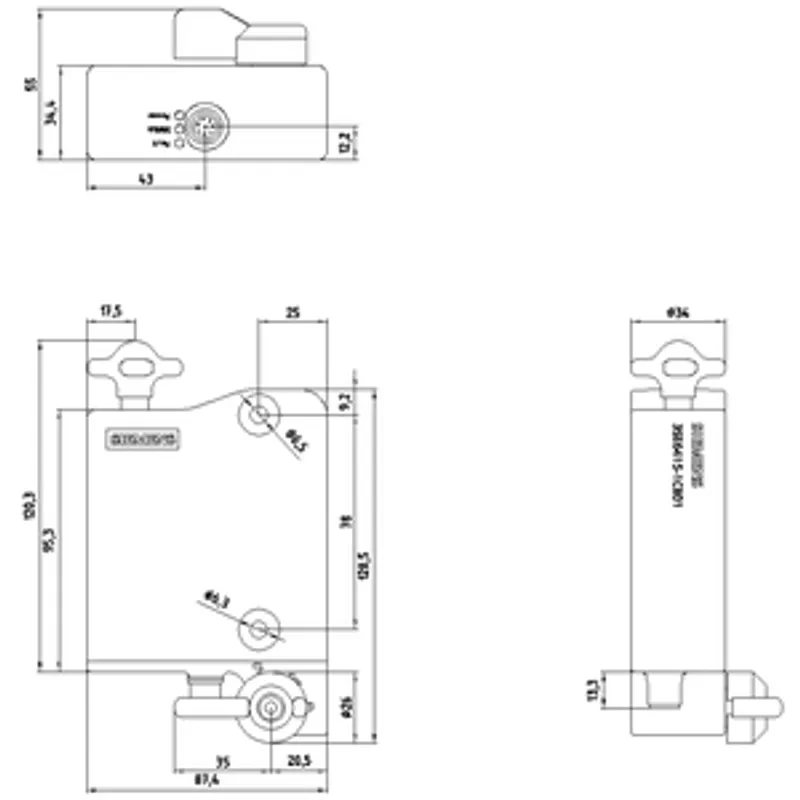

Installation/ mounting/ dimensions
| fastening method | screw fixing |
| design of the thread of the screw for securing the equipment | 2x M6 |
| tightening torque of fixing screw minimum | 6 N·m |
| tightening torque of fixing screw maximum | 7 N·m |
Connections/ Terminals
| type of electrical connection | M12 plug, 8-pole, A-coded |
| wire length maximum | 200 m |

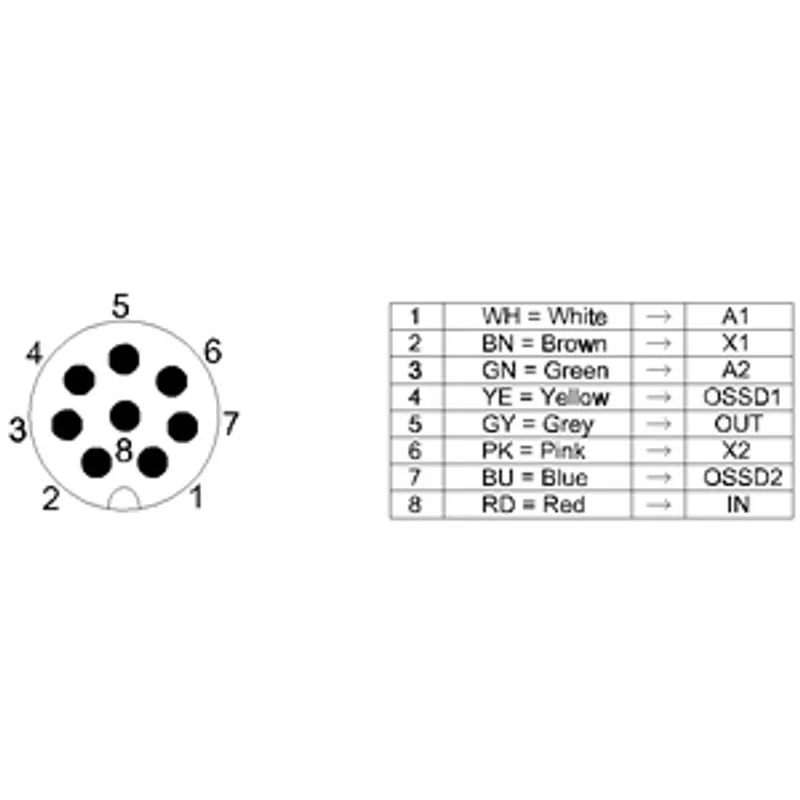

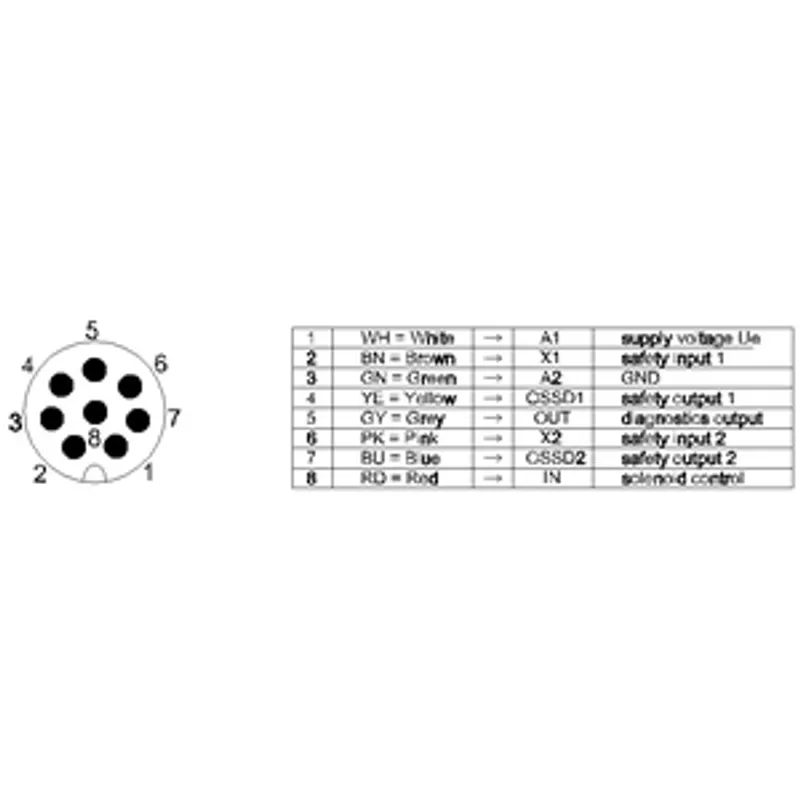

| contact assignment — of socket 1 at PIN 1 | A1 supply voltage Ub |
| contact assignment — of socket 1 at PIN 2 | X1 safety input 1 |
| contact assignment — of socket 1 at PIN 3 | A2 GND |
| contact assignment — of socket 1 at PIN 4 | OSSD1 safety output 1 |
| contact assignment — of socket 1 at PIN 5 | OUT diagnostic output |
| contact assignment — of the bushing 1 at PIN 6 | X2 safety input 2 |
| contact assignment — of the bushing 1 at PIN 7 | OSSD2 safety output 2 |
| contact assignment — of the bushing 1 at PIN 8 | IN magnet controller |
Supply voltage
| type of voltage of the supply voltage | DC |
| supply voltage rated value | 24 V |
| supply voltage | 26.4 ... 20.4 V |
| fuse protection type for external auxiliary power supply required | 2 A gG |
Inputs/ Outputs
| input voltage at safety-related digital input — for signal <0> at DC | -3 ... +5 V |
| input voltage at safety-related digital input — for signal <1> at DC | 15 ... 30 V |
| input current at digital input for signal <1> typical | 10 mA |
| input current at safety-related digital input for signal <1> typical | 5 mA |
| number of semiconductor outputs — for signaling function | 1 |
| number of semiconductor outputs — safety-related | 2 |
| design of the contactless switching element safety-related | short-circuit proof, sourcing output |
| type of diagnostic output | short-circuit proof, sourcing output |
| dark period at safety-related digital output maximum | 0.5 ms |
| dark period test duration — at digital input maximum | 5 ms |
| dark period test duration — at safety-related digital input maximum | 1 ms |
| dark period test interval — at digital input minimum | 40 ms |
| dark period test interval — at safety-related digital input minimum | 100 ms |
| dark period test interval — at safety-related digital output maximum | 1 000 ms |
| residual current at digital output with signal <0> maximum | 0.5 mA |
| voltage drop — at safety-related output maximum | 2 V |
| voltage drop — at diagnostic output maximum | 2 V |
| output current minimum | 0.5 mA |
| output current at safety-related output maximum | 0.25 A |
| output current at diagnostic output maximum | 0.05 A |
Communication/ Protocol
| design of the interface for safety-related communication | connector M12 |
| transmission frequency rated value | 125 kHz |
Safety related data
| product function suitable for safety function | Yes |
| category according to EN 954-1 | 4 |
| Safety Integrity Level (SIL) — for position monitoring according to IEC 62061 | 3 |
| Safety Integrity Level (SIL) — for guard locking according to IEC 62061 | 2 |
| PFHD with high demand rate — for position monitoring according to IEC 62061 | 5.2E-9 1/h |
| PFHD with high demand rate — for guard locking according to IEC 62061 | 2E-9 1/h |
| performance level (PL) according to EN ISO 13849-1 | e |
| category according to EN ISO 13849-1 | 4 |
| performance level (PL) — for position monitoring according to ISO 13849-1 | e |
| performance level (PL) — for guard locking according to ISO 13849-1 | d |
| category — for position monitoring according to ISO 13849-1 | 4 |
| category — for guard locking according to ISO 13849-1 | 2 |
| Safety Integrity Level (SIL) according to IEC 61508 | 3 |
| PFDavg with low demand rate — for position monitoring according to IEC 62061 | 4.5E-4 |
| PFDavg with low demand rate — for guard locking according to IEC 62061 | 0.0018 |
| T1 value for proof test interval or service life — for position monitoring according to IEC 61508 | 20 a |
| T1 value for proof test interval or service life — for guard locking according to IEC 61508 | 20 a |
| type of monitoring | guard locking |
| response delay maximum | 5 000 ms |
| OFF-delay time with safety-related request — when switched off via control inputs maximum | 1.5 ms |
| OFF-delay time with safety-related request — for safety-related shutdown via actuator maximum | 100 ms |
| conditional short-circuit current (Iq) at 400 V according to IEC 60947-4-1 rated value | 100 A |
