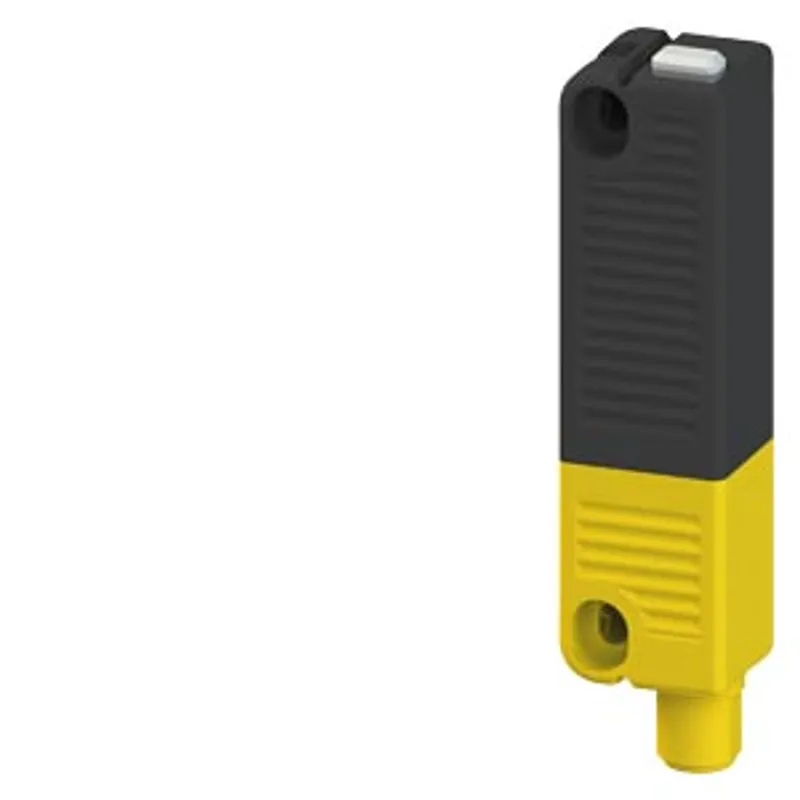

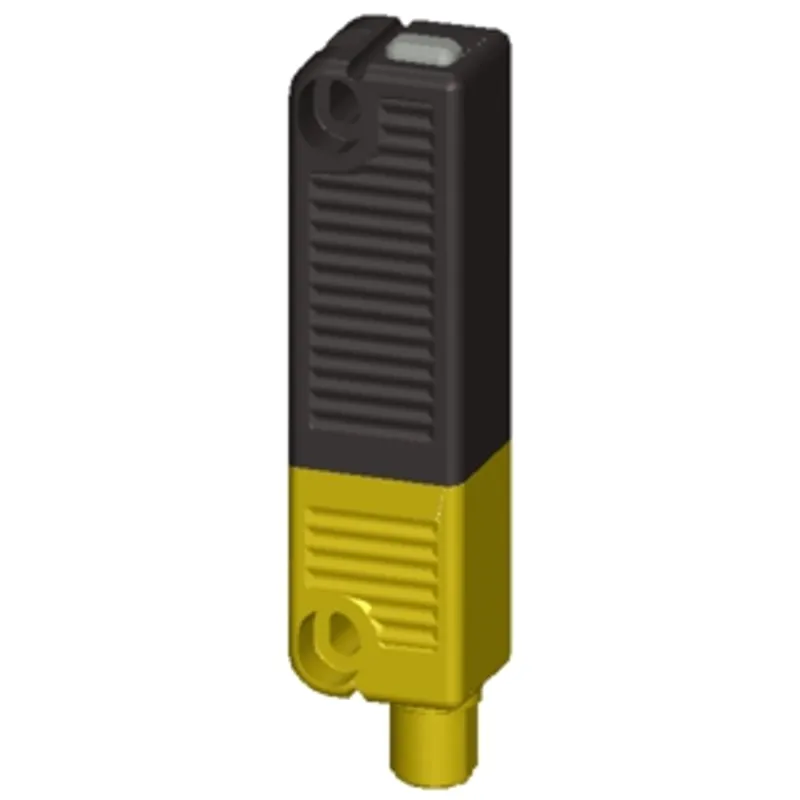

Siemens 3SE6315-1BB01-1AP0
Contact-free safety switch RFID rectangular 106 mm x 25 mm family-encoded
- MPN
- 3SE6315-1BB01-1AP0
- Category
- 3SE63 RFID safety switches
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3SE6315-1BB01-1AP0?
contact-free safety switch RFID rectangular 106 mm x 25 mm family-encoded, with M12 plug 8-pole and magnet latching 18 N, delivery status: ready for operation, actuator with magnet latching 18 N, to be ordered separately: 3SE6310-1BC01
Specifications
General
| product brand name | SIRIUS |
| product designation | RFID safety switch |
| design of the product | Rectangular sensor unit |
| product type designation | 3SE63 |
| suitability for use safety-related circuits | Yes |
General technical data
| product function — positive opening | No |
| product function — cross-circuit/short-circuit recognition | Yes |
| product feature | Family coded, with magnetic catch |
| type of voltage of the operating voltage | DC |
| protection class IP | IP65, IP67, IP69k |
| shock resistance according to IEC 60068-2-27 | Sinusoidal half-wave 30 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 10 ... 55 Hz: 1 mm |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| Net Weight | 0.115 kg |

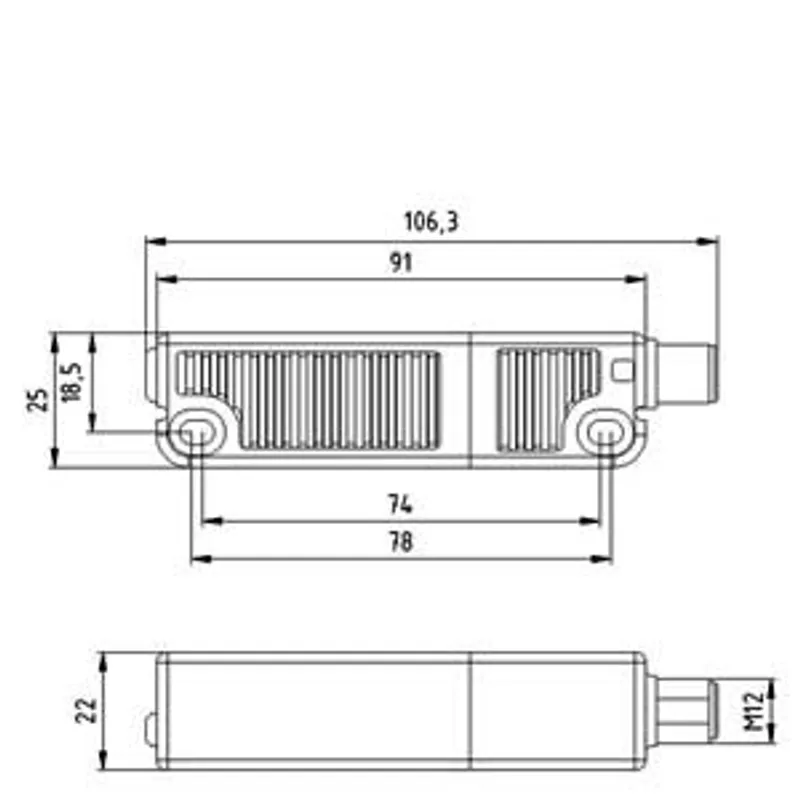

| height of the sensor | 22 mm |
| length of the sensor | 106 mm |
| width of the sensor | 25 mm |
| material of the active sensor area | plastic |
Ambient conditions
| ambient temperature during operation | -25 ... +70 °C |
Control circuit/ Control
| type of voltage | DC |
| operating voltage rated value | 24 V |
| operational current rated value | 600 mA |
Enclosure
| material of the enclosure | plastic |
| material of cable sheath | PVC |
Actuator
| design of the actuating element | RFID |
Display
| evaluation unit required | yes |
Contact
| switching frequency | 1 Hz |
| operating distance | 12 mm |
| assured operating distance OFF | 16 mm |
| assured operating distance ON | 10 mm |
| design of the switching function | positive switching |
| number of switching contacts for signaling function — safety-related | 1 |
Installation/ mounting/ dimensions
| fastening method | screw fixing |
Connections/ Terminals

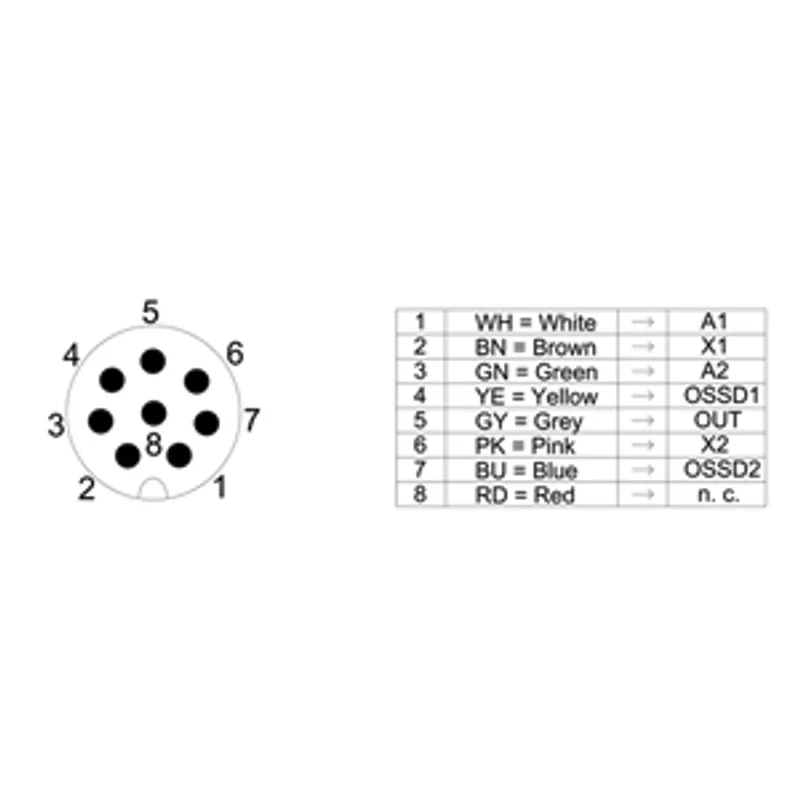

| type of electrical connection | M12 plug, 8-pole |
| wire length maximum | 30 m |
Supply voltage
| supply voltage | 26.4 ... 20.4 V |
Inputs/ Outputs
| output current minimum | 0.5 A |
| output current at safety-related output maximum | 0.25 A |
| design of the interface for safety-related communication | connector M12 |
| transmission frequency rated value | 125 kHz |
Safety related data
| category according to EN 954-1 | 4 |
| performance level (PL) according to EN ISO 13849-1 | e |
| Safety Integrity Level (SIL) according to IEC 61508 | 3 |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3SE6315-1BB01-1AP0: frequently asked questions
When can 3SE6315-1BB01-1AP0 be shipped?
3SE6315-1BB01-1AP0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3SE6315-1BB01-1AP0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3SE6315-1BB01-1AP0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SE6315-1BB01-1AP0, subject to availability and destination.
