Compact design Parts
Compare Compact design
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product function positive opening | insulation voltage rated value | mechanical service life (operating cycles) typical | Net Weight | length of the sensor |
|---|---|---|---|---|---|

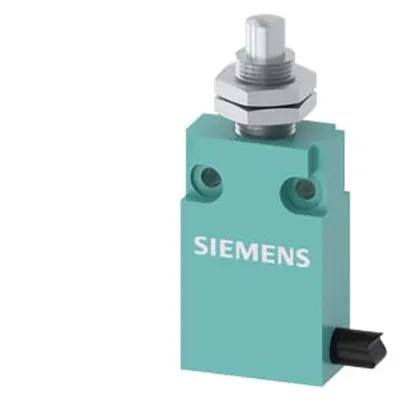

| 3SE5413-0CC21-1EA2 | Yes | 400 V | 10 000 000 | 0.296 kg | 60 mm |

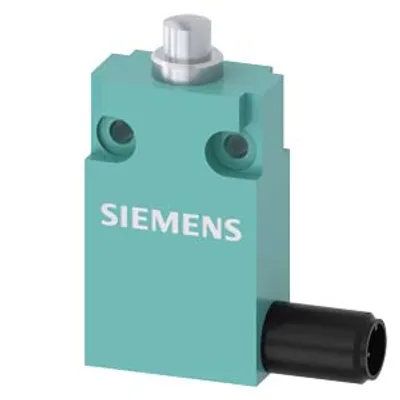

| 3SE5413-0CC20-1EB1 | Yes | 400 V | 10 000 000 | 0.094 kg | 60 mm |

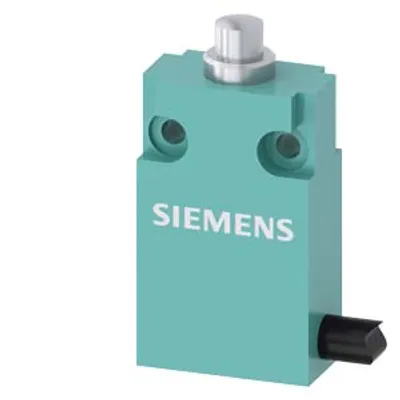

| 3SE5413-0CC20-1EA5 | Yes | 400 V | 10 000 000 | 0.555 kg | 60 mm |

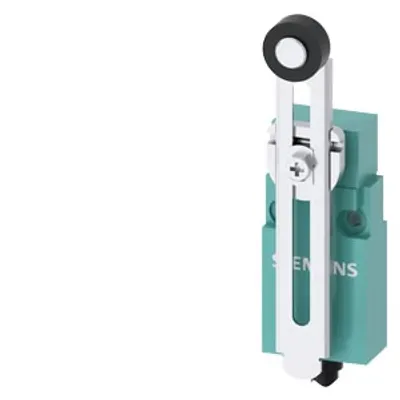

| 3SE5413-0CQ20-1EA2 | No | 300 V | 5 000 000 | 0.354 kg | 145 mm |

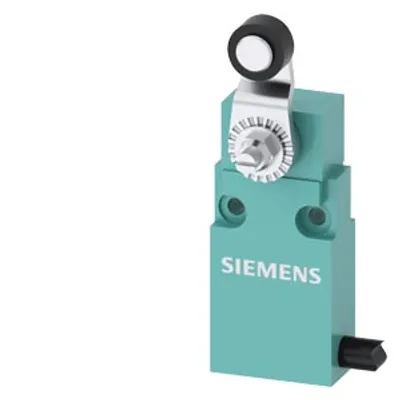

| 3SE5413-0CP20-1EA2 | Yes | 400 V | 5 000 000 | 0.314 kg | 95 mm |

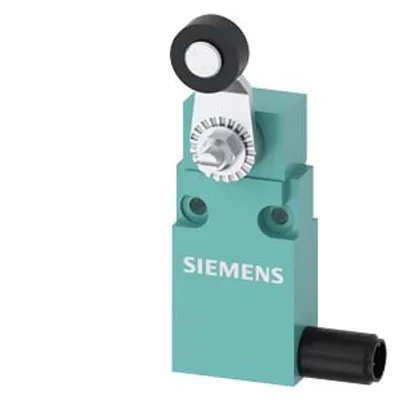

| 3SE5413-0CN20-1EB1 | Yes | 400 V | 5 000 000 | 0.133 kg | 95 mm |
| 3SE5413-0CC20-1EA2 | Yes | 400 V | 10 000 000 | 0.291 kg | 60 mm |
Common to all listed parts
| product designation | Mechanical position switches |
| product type designation | 3SE5 |
| degree of pollution | 3 |
| protection class IP | IP67 |
| shock resistance — according to IEC 60068-2-27 | 30 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 0.35 mm/5 g |
| thermal current | 10 A |
| material of the enclosure of the switch head | metal |
