Siemens 3SE5413-0CC20-1EA2

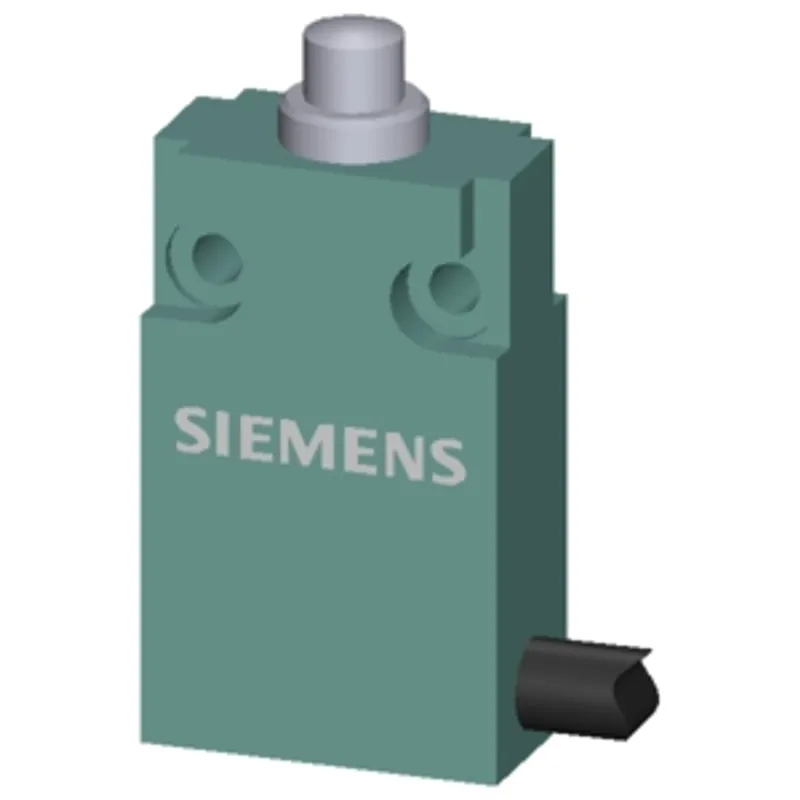

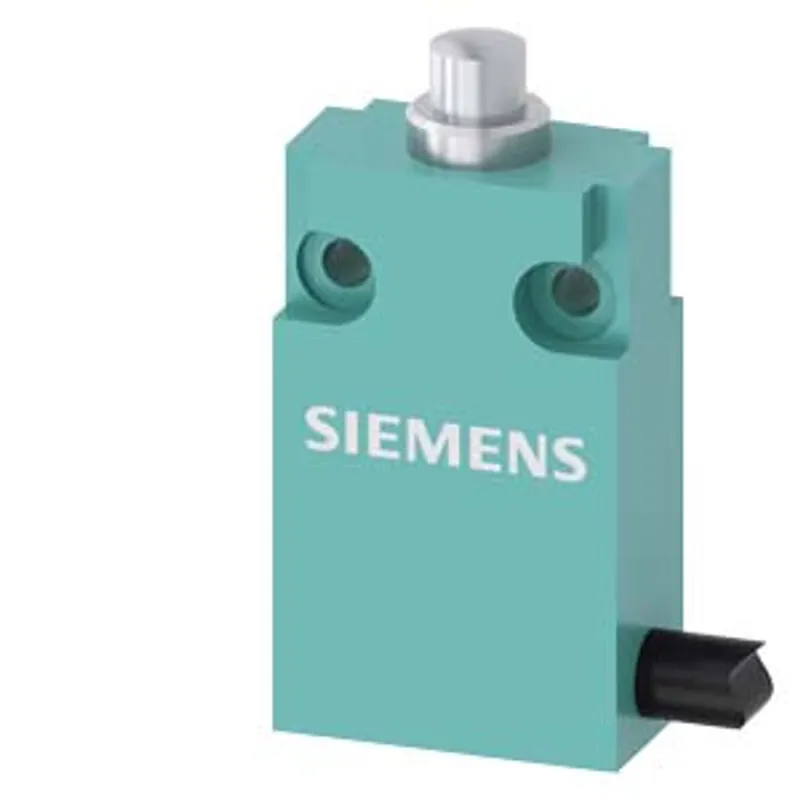

Position switch in compact design 30 mm wide with connection cable 2 m Snap-action contacts 1 NO+1 NC Rounded…

MPN: 3SE5413-0CC20-1EA2
Category: Compact design

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3SE5413-0CC20-1EA2?

Position switch in compact design 30 mm wide with connection cable 2 m Snap-action contacts 1 NO+1 NC Rounded plunger

Specifications

General

product brand name	SIRIUS
product designation	Mechanical position switches
product type designation	3SE5

General technical data

product function positive opening	Yes
insulation voltage rated value	400 V
degree of pollution	3
surge voltage resistance rated value	4 kV
protection class IP	IP67
shock resistance — according to IEC 60068-2-27	30 g / 11 ms
vibration resistance according to IEC 60068-2-6	0.35 mm/5 g
mechanical service life (operating cycles) typical	10 000 000
electrical endurance (operating cycles) at AC-15 at 230 V typical	100 000
thermal current	10 A
material of the enclosure of the switch head	metal
reference code according to IEC 81346-2	B
active principle	mechanical
repeat accuracy	0.05 mm
Substance Prohibitance (day/month/year)	07/01/2006
Net Weight	0.291 kg
minimum actuating force in directions of actuation	20 N
length of the sensor	60 mm
width of the sensor	30 mm

Ambient conditions

ambient temperature — during operation	-25 ... +85 °C
ambient temperature — during storage	-25 ... +85 °C
explosion protection category for dust	none
design of the switching contact	mechanical
operating frequency rated value	50 ... 60 Hz
number of NC contacts for auxiliary contacts	1
number of NO contacts for auxiliary contacts	1
operational current at AC-15 — at 125 V rated value	6 A
operational current at AC-15 — at 230 V rated value	3 A
operational current at DC-13 — at 125 V rated value	0.55 A
operational current at DC-13 — at 230 V rated value	0.27 A

Enclosure

design of the housing	block
material of the enclosure	metal
coating of the enclosure	painted
design of the housing according to standard	No
material of cable sheath	PVC

Drive Head

design of the actuating element	rounded plunger
shape of the switch head	rounded

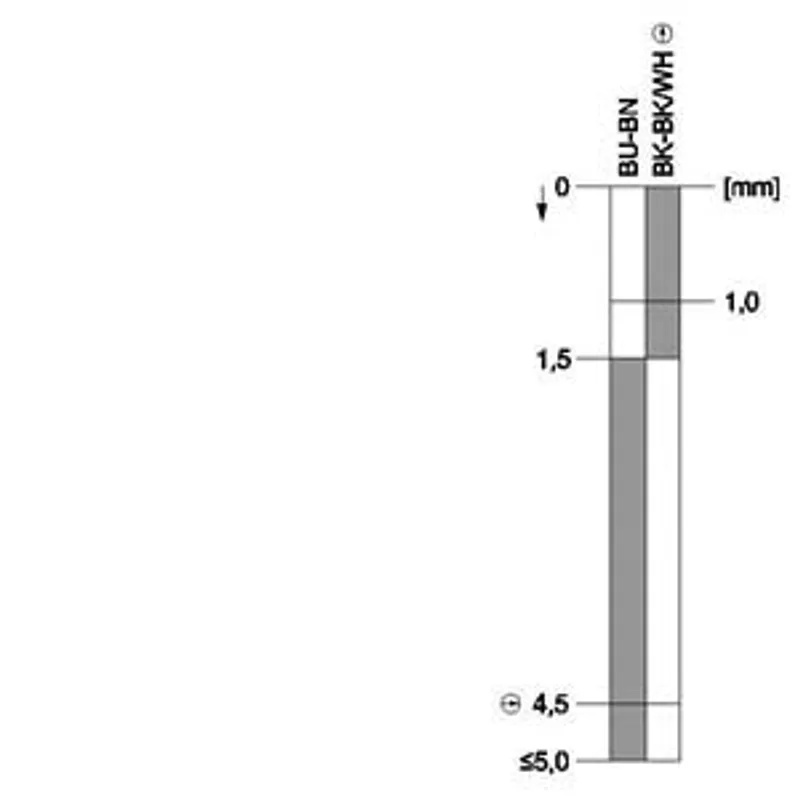

design of the switching function	positive opening
circuit principle	snap-action contacts
number of switching contacts safety-related	1

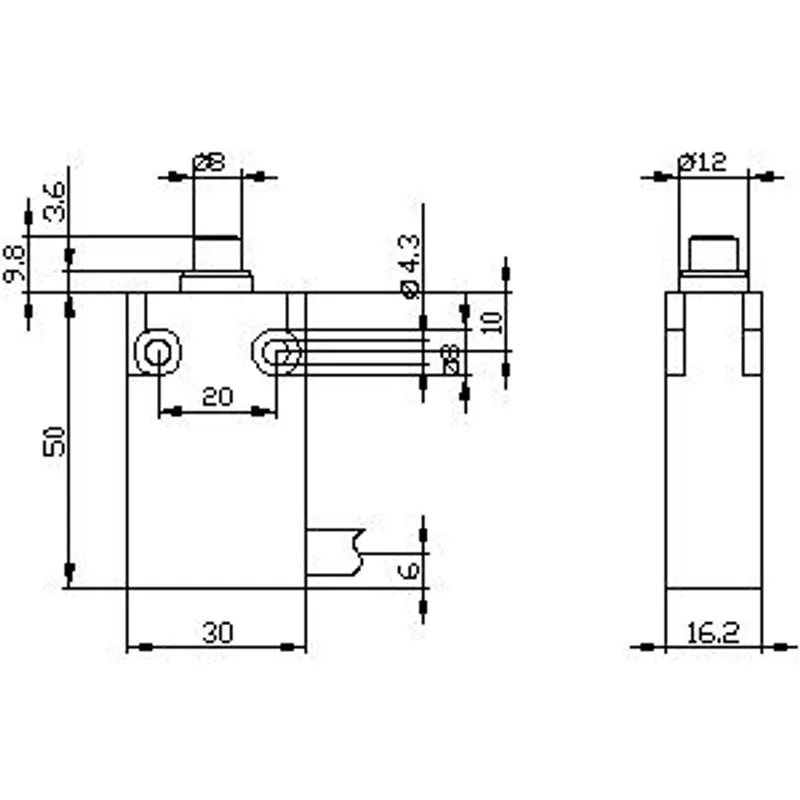

Installation/ mounting/ dimensions

mounting position	any
fastening method	screw fixing

Connections/ Terminals

type of electrical connection	cable, 5 x 0.75mm²
design of the interface for safety-related communication	without

Communication/ Protocol

design of the interface

without
