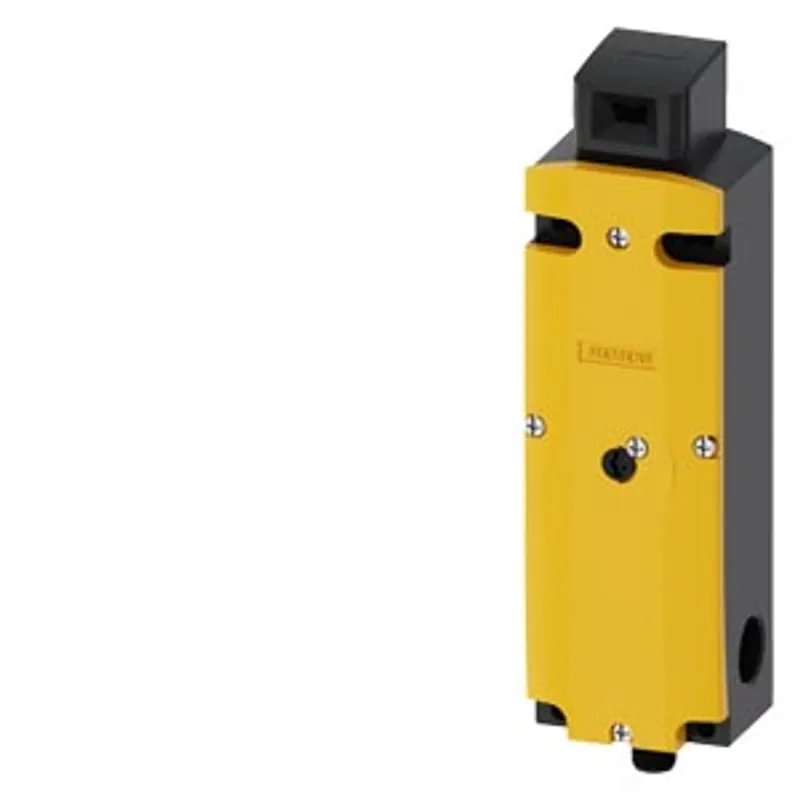

Siemens 3SE5324-0SD21-1AE5

Safety switch with tumbler, without solenoid monitoring, locking force 1300 N, for SIMATIC ET 200eco PN-F

MPN: 3SE5324-0SD21-1AE5
Category: 3SE5, plastic enclosures with locking force greater than 1 000 N

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

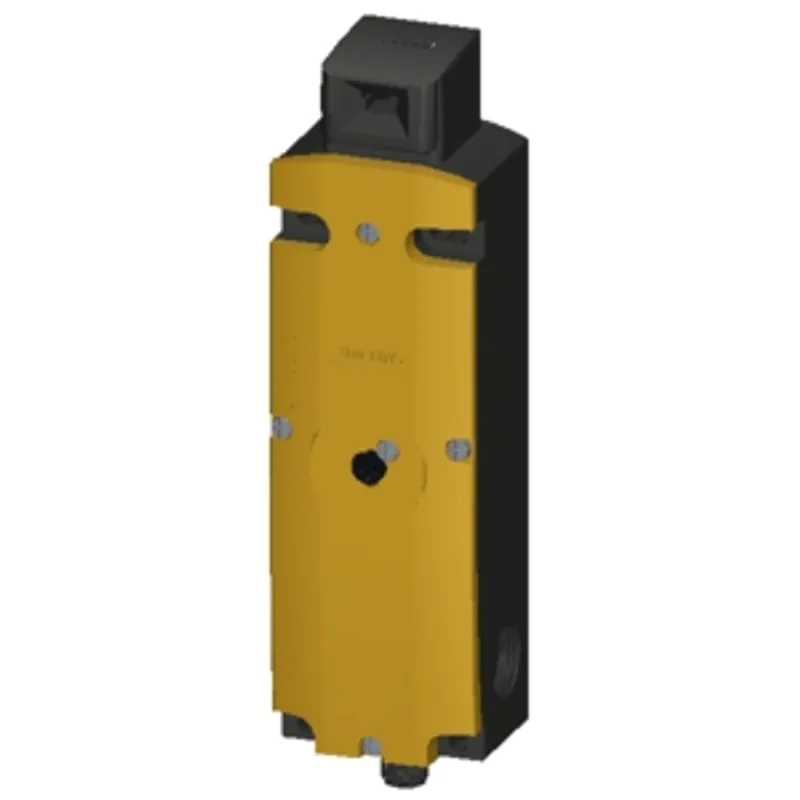

What is the Siemens 3SE5324-0SD21-1AE5?

safety switch with tumbler, without solenoid monitoring, locking force 1300 N, for SIMATIC ET 200eco PN-F, 5 approach directions, spring-locked, magnet voltage 24 V DC, wired with M12 plug, 8-pole, monitoring 2x door monitoring 0x interlock, pin 1 = 11, pin 2 = 12, pin 3 = 21, pin 4 = 22, pin 5 = n.a., pin 6 = n.a., pin 7 = E1, pin 8 = E2, actuator 3SE5000-0AV0. /-0AW.. must be ordered separately, connection accessory e.g. for SIMATIC ET 200eco PN-F: Y-cable 6ES7194-6KC00-0XA0,

Specifications

General

product brand name	SIRIUS
product designation	Mechanical safety switches
design of the product	with separate actuator and with tumbler
product type designation	3SE5

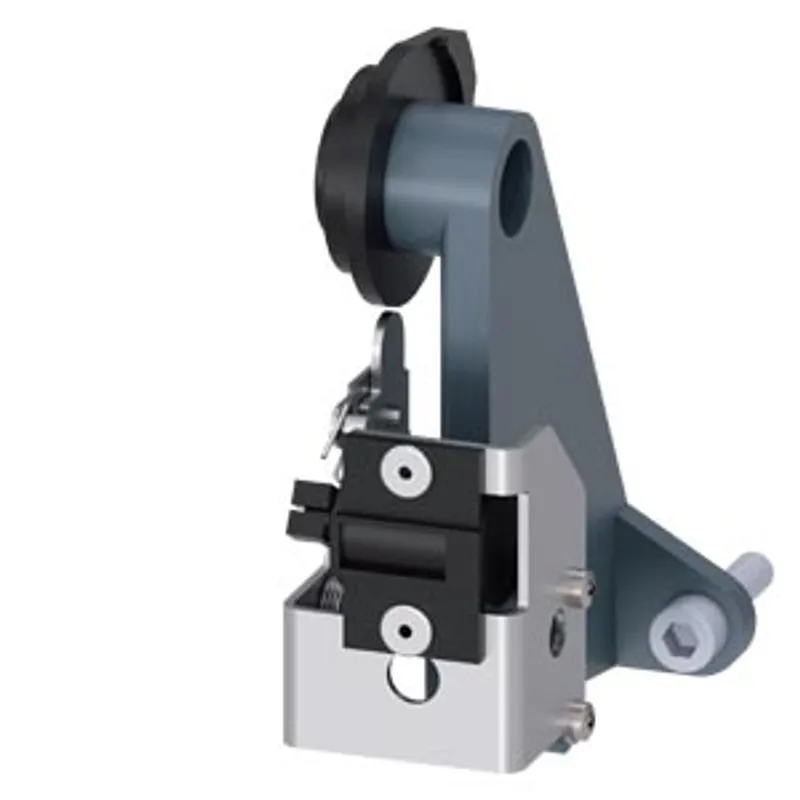

manufacturer's article number of the optional actuators	3SE5000-0AV01 standard actuator, 3SE5000-0AV02 actuator with vertical fixing, 3SE5000-0AV03 actuator with transverse fixing, 3SE5000-0AV04 radius actuator, approach from left, 3SE5000-0AV05 universal actuator, 3SE5000-0AV06 radius actuator, approach from right, 3SE5000-0AV07 Heavy Duty actuator, 3SE5000-0AW42 actuator with vertical fixing, stainless steel socket, 3SE5000-0AW43 actuator with transverse fixing, stainless steel socket, 3SE5000-0AW51 stainless steel actuator, 3SE5000-0AW52 stainless steel actuator with vertical fixing, 3SE5000-0AW53 stainless steel actuator with transverse fixing

General technical data

product function positive opening	Yes
locking force	1 300 N
locking force — according to EN ISO 14119	1 000 N
insulation voltage rated value	30 V
degree of pollution	class 3
surge voltage resistance rated value	0.8 kV
protection class IP	IP66/IP67
shock resistance	30g / 11 ms
shock resistance — according to IEC 60068-2-27	30 g / 11 ms
vibration resistance	0.35 mm / 5 g
vibration resistance — according to IEC 60068-2-6	0.35 mm/5 g
mechanical service life (operating cycles) typical	1 000 000
thermal current	1.5 A
material of the enclosure of the switch head	plastic
reference code according to IEC 81346-2	B
continuous current of the C characteristic MCB	1 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link	1 A; for a short-circuit current smaller than 400 A
continuous current of the DIAZED fuse link gG	1 A; for a short-circuit current smaller than 400 A
repeat accuracy	0.05 mm
Substance Prohibitance (day/month/year)	10/01/2011
SVHC substance name	Lead CAS-No. 7439-92-1 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1
Net Weight	0.496 kg
actuating force in tension force vector typical	20 N

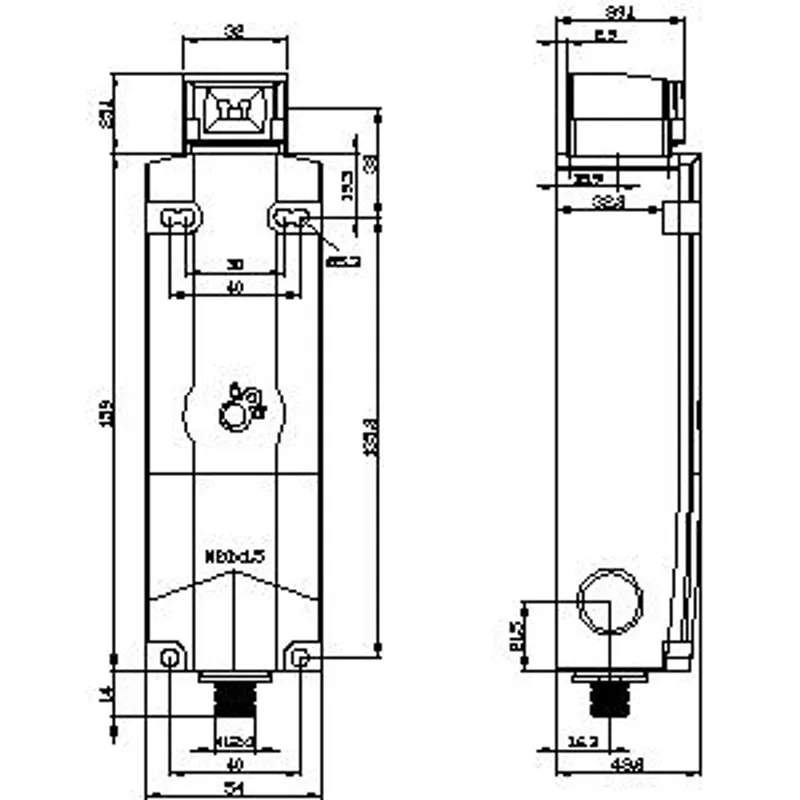

length of the sensor	198 mm
width of the sensor	54 mm

Ambient conditions

ambient temperature — during operation	-25 ... +60 °C
ambient temperature — during storage	-40 ... +80 °C
explosion protection category for dust	none
consumed active power of magnet coil	3.5 W
operational current at AC-15 — at 24 V rated value	1.5 A
operational current at DC-13 — at 24 V rated value	1.5 A

Enclosure

design of the housing	special design
material of the enclosure	plastic
design of the housing according to standard	No
locking mechanism design	spring-actuated lock (closed-circuit principle) with auxiliary release

Drive Head

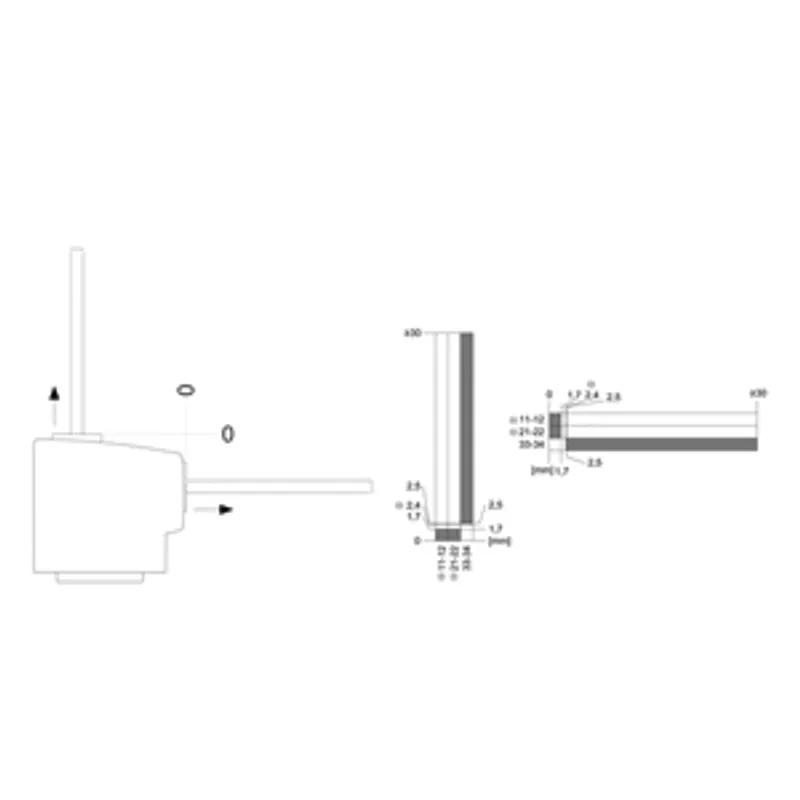

design of the actuating element	5 directions of approach
design of the switching function	positive opening
number of directions of actuation	5
circuit principle	slow-action contacts
number of switching contacts safety-related	2
cable entry type	M12 plug

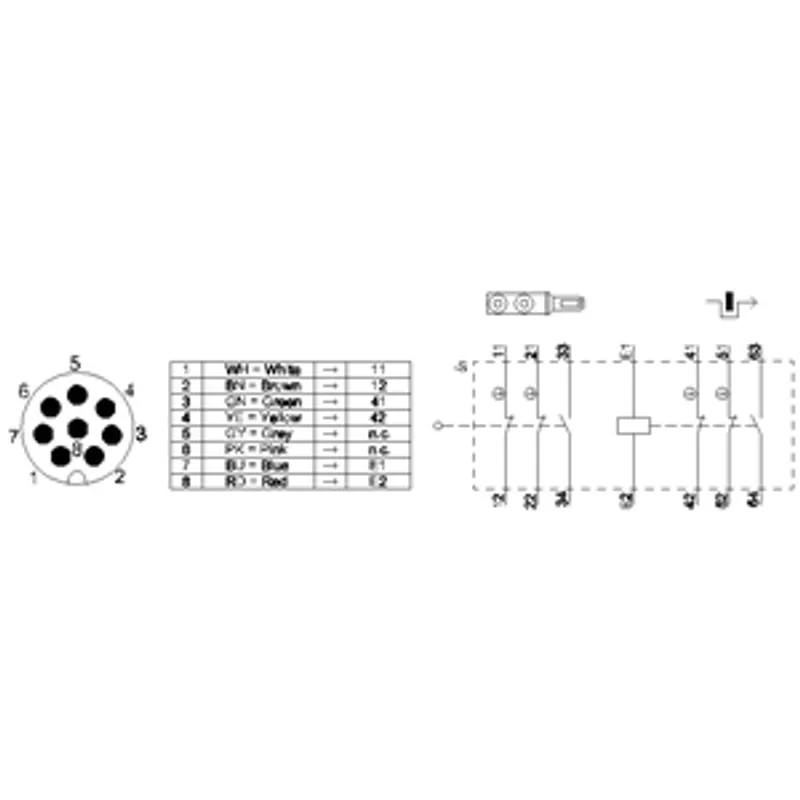

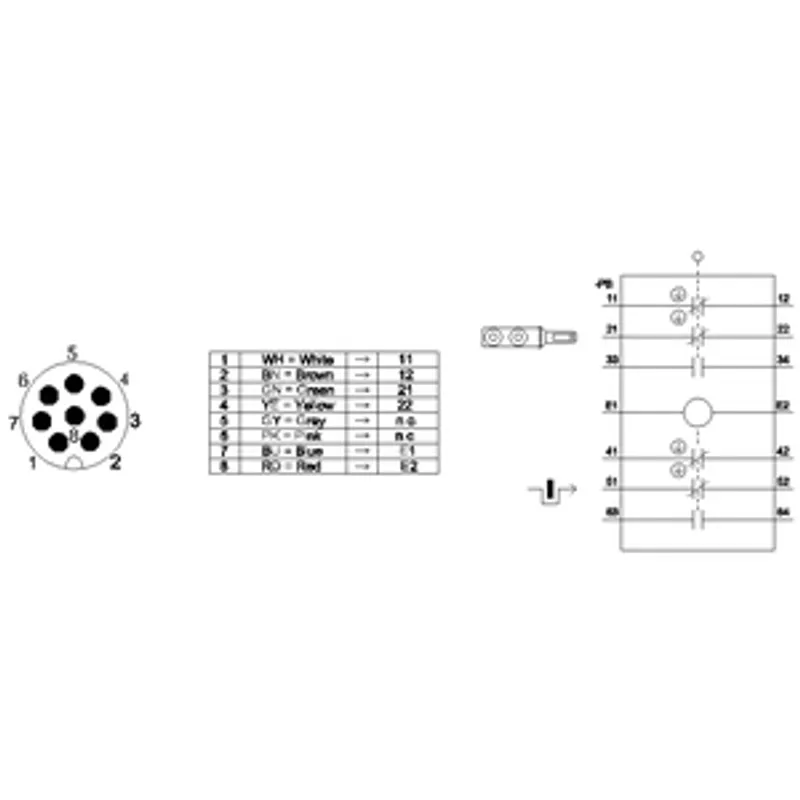

design of plug-in connection	M12 connector, 8-pole: Pin 1= 11, pin 2= 12, pin 3= 21, pin 4= 22, pin 5= n.c., pin 6= n.c., pin 7= E1, pin 8= E2
