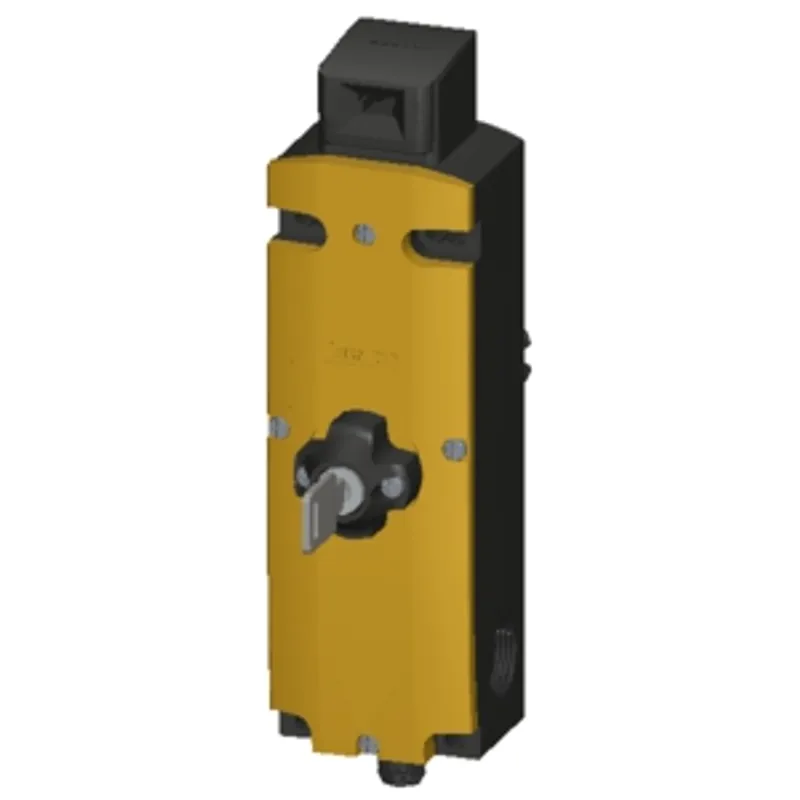

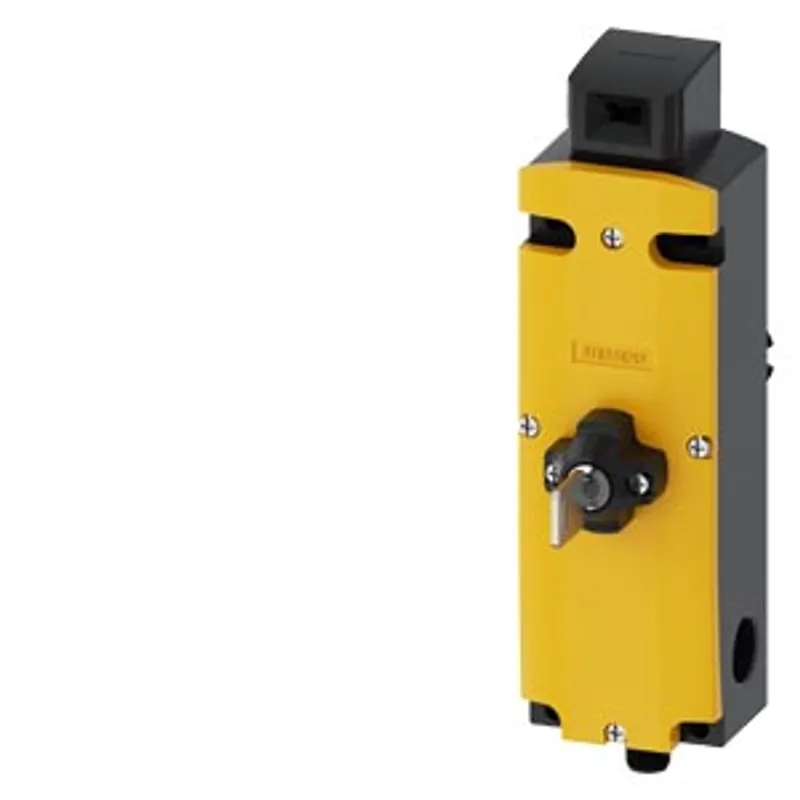

Siemens 3SE5324-0SH21-1AE4
Safety switch with tumbler, plastic, locking force 1300 N, e.g. for SIMATIC ET 200eco PN-F, spring-locked
- MPN
- 3SE5324-0SH21-1AE4
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3SE5324-0SH21-1AE4?
safety switch with tumbler, plastic, locking force 1300 N, e.g. for SIMATIC ET 200eco PN-F, spring-locked, with escape release at the back, auxiliary release with lock front, magnet voltage 24 V, monitoring 1x door, monitoring 1x interlock, M12 plug 8-pole, pin 1 = 11, pin 2 = 12, pin 3 = 41, pin 4 = 42, pin 5 = n.a.; pin 6 = n.a., pin 7 = E1, pin 8 = E2, actuator 3SE5000-0AV0. /-0AW.. must be ordered separately, connection accessory e.g. for SIMATIC ET 200eco PN-F: Y-cable 6ES7194-6KC00-0XA0,
Specifications
General
| product brand name | SIRIUS |
| product designation | Mechanical safety switches |
| design of the product | with separate actuator and with tumbler |
| product type designation | 3SE5 |
| manufacturer's article number of the optional actuators | 3SE5000-0AV01 standard actuator, 3SE5000-0AV02 actuator with vertical fixing, 3SE5000-0AV03 actuator with transverse fixing, 3SE5000-0AV04 radius actuator, approach from left, 3SE5000-0AV05 universal actuator, 3SE5000-0AV06 radius actuator, approach from right, 3SE5000-0AV07 Heavy Duty actuator, 3SE5000-0AW42 actuator with vertical fixing, stainless steel socket, 3SE5000-0AW43 actuator with transverse fixing, stainless steel socket, 3SE5000-0AW51 stainless steel actuator, 3SE5000-0AW52 stainless steel actuator with vertical fixing, 3SE5000-0AW53 stainless steel actuator with transverse fixing |
General technical data
| product function positive opening | Yes |
| locking force | 1 300 N |
| locking force — according to EN ISO 14119 | 1 000 N |
| insulation voltage rated value | 30 V |
| degree of pollution | class 3 |
| surge voltage resistance rated value | 0.8 kV |
| protection class IP | IP66/IP67 |
| shock resistance | 30g / 11 ms |
| shock resistance — according to IEC 60068-2-27 | 30 g / 11 ms |
| vibration resistance | 0.35 mm / 5 g |
| vibration resistance — according to IEC 60068-2-6 | 0.35 mm/5 g |
| mechanical service life (operating cycles) typical | 1 000 000 |
| thermal current | 1.5 A |
| material of the enclosure of the switch head | plastic |
| reference code according to IEC 81346-2 | B |
| continuous current of the C characteristic MCB | 1 A; for a short-circuit current smaller than 400 A |
| continuous current of the quick DIAZED fuse link | 1 A; for a short-circuit current smaller than 400 A |
| continuous current of the DIAZED fuse link gG | 1 A; for a short-circuit current smaller than 400 A |
| repeat accuracy | 0.05 mm |
| Substance Prohibitance (day/month/year) | 10/01/2011 |
| SVHC substance name | Lead CAS-No. 7439-92-1 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 |
| Net Weight | 0.422 kg |
| actuating force in tension force vector typical | 20 N |
| length of the sensor | 198 mm |
| width of the sensor | 54 mm |
Ambient conditions
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| explosion protection category for dust | none |
| consumed active power of magnet coil | 3.5 W |
| operational current at AC-15 — at 24 V rated value | 1.5 A |
| operational current at DC-13 — at 24 V rated value | 1.5 A |
Enclosure

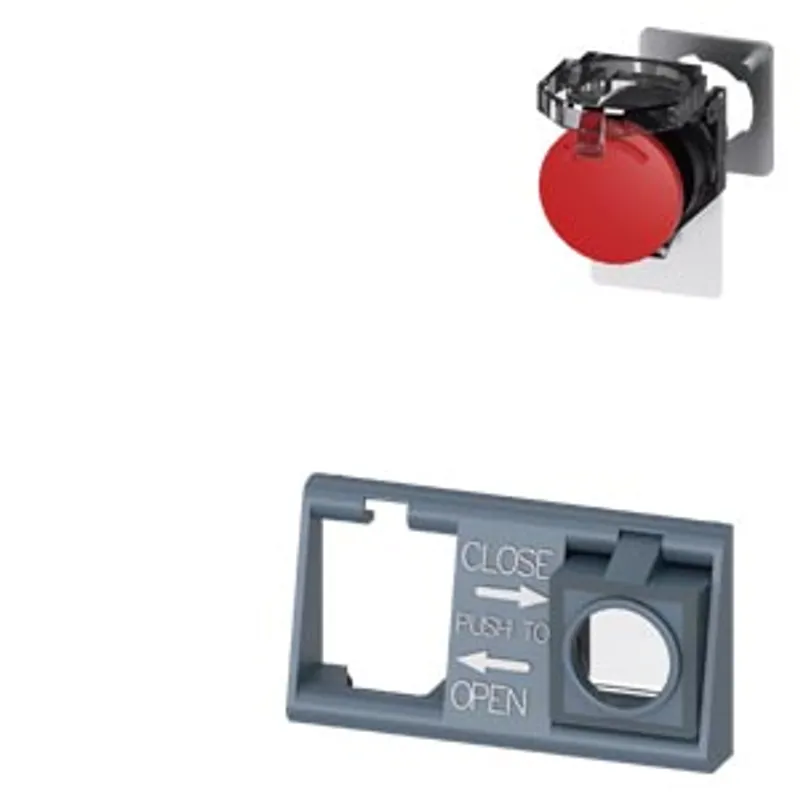

| design of the housing | special design |
| material of the enclosure | plastic |
| design of the housing according to standard | No |
| locking mechanism design | spring-locked (closed-circuit current principle) with escape unlocking at the rear and lock on the front |

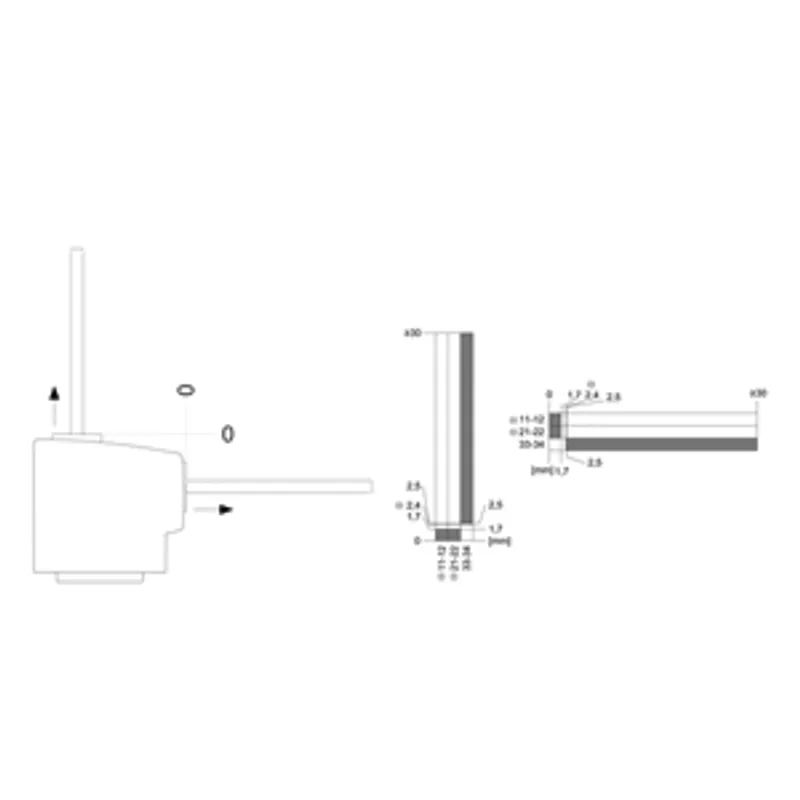

Drive Head
| design of the actuating element | 5 directions of approach |
| design of the switching function | positive opening |
| number of directions of actuation | 5 |
| circuit principle | slow-action contacts |
| number of switching contacts safety-related | 2 |
| cable entry type | M12 plug |

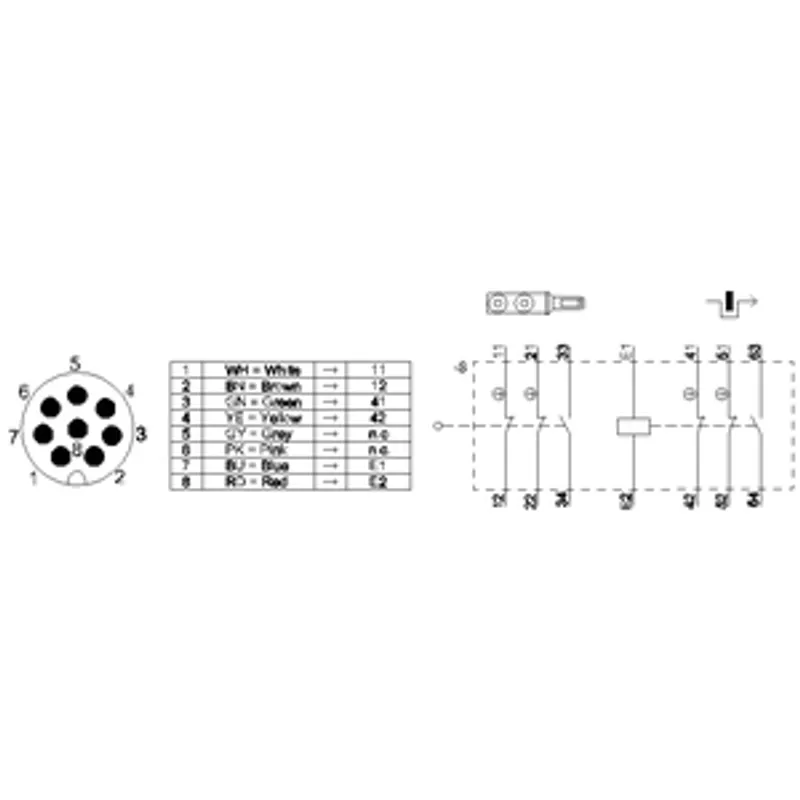

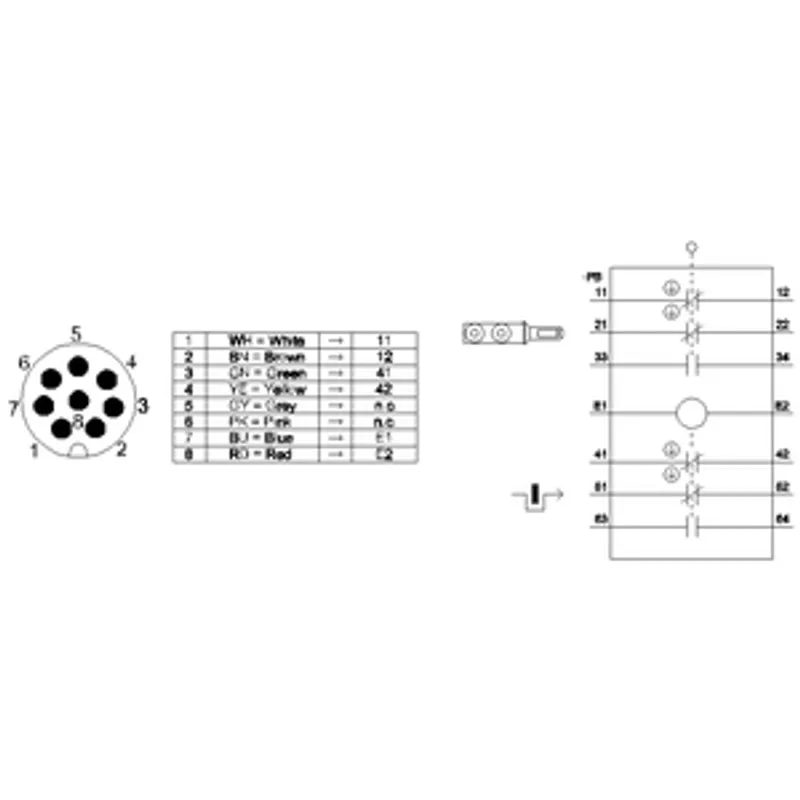

| design of plug-in connection | M12 connector, 8-pole: Pin 1= 11, pin 2= 12, pin 3= 41, pin 4= 42, pin 5= n.c., pin 6= n.c., pin 7= E1, pin 8= E2 |

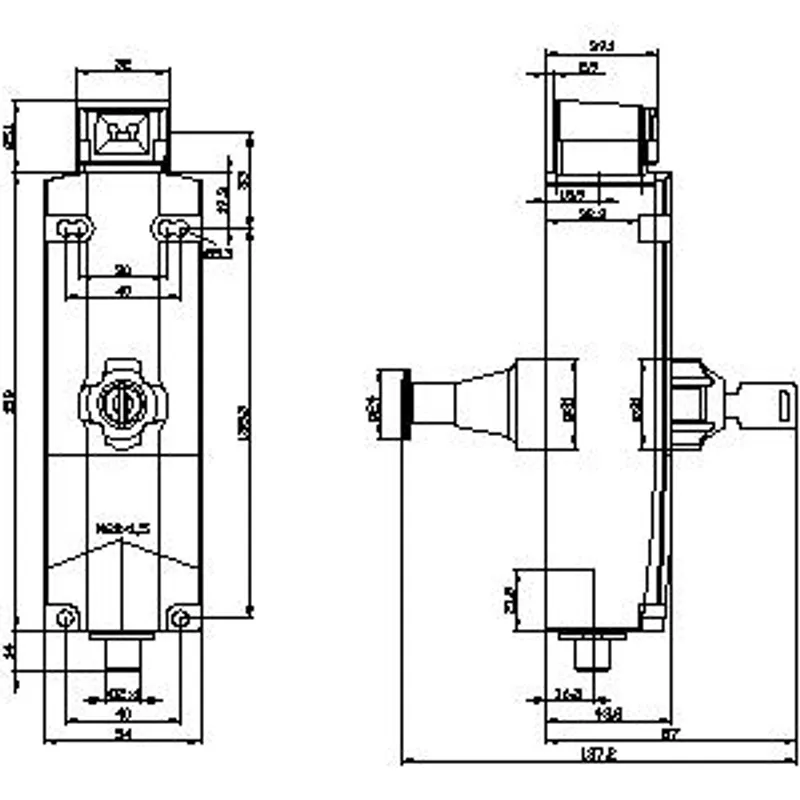

Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | screw fixing |
Connections/ Terminals
| type of electrical connection | screw terminal |
Supply voltage
| supply voltage of magnet coil | 24 V |
| design of the interface for safety-related communication | without |
Communication/ Protocol
| design of the interface | without |
Safety related data
| product function suitable for safety function | Yes |
| service life maximum | 20 a |
| test wear-related service life necessary | Yes |
| proportion of dangerous failures — with low demand rate according to SN 31920 | 20 % |
| proportion of dangerous failures — with high demand rate according to SN 31920 | 50 % |
| B10 value with high demand rate according to SN 31920 | 1 000 000 |
| failure rate [FIT] with low demand rate according to SN 31920 | 100 FIT |
| device type according to ISO 13849-1 | 3 |
| safety device type according to IEC 61508-2 | A |
