Siemens 3RX9801-0AA01
M12 branch for AS-Interface flat cable, with M12 socket, with lever
- MPN
- 3RX9801-0AA01
- Category
- Addressing units
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

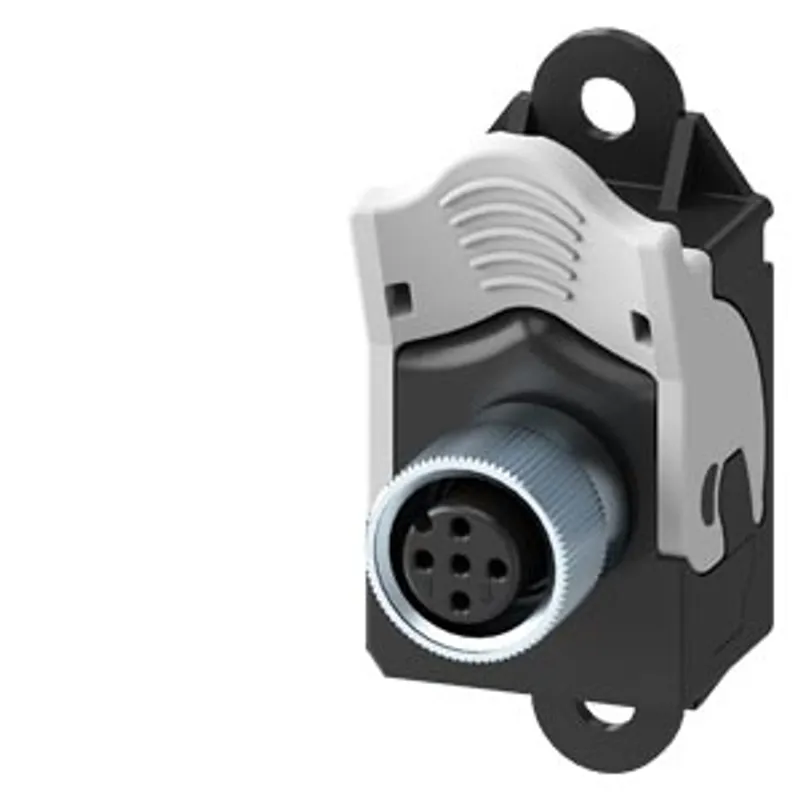

What is the Siemens 3RX9801-0AA01?
M12 branch for AS-Interface flat cable, with M12 socket, with lever
Specifications
General
| product brand name | SIRIUS |
| product category | AS-Interface accessories |
| product designation | AS-i flat cable transition to M12 |
| design of the product | AS-i M12 branch, for AS-i flat cable, M12 socket, 2-pole, IP67, lever-type connection |
| suitability for use | can be used for AS-i flat cable (yellow) and AUX flat cable (black) connections |
General technical data
| number of sockets | 1 |
| operating voltage at DC rated value | 60 V |
| operating voltage at AC rated value | 50 V |
| operational current rated value | 4 A |
| number of poles | 2 |
| contact rating maximum | 4 A |
| operating resource protection class when installed | 3 |
| degree of pollution | 3 |
| overvoltage category | III |
| protection class IP | IP67 |
| Substance Prohibitance (day/month/year) | 05/01/2012 |
| Net Weight | 0.017 kg |
| material — of the flat cable contacts | bronze, tin-coated |
| material — of the enclosure | PA, glass-fiber reinforced, UL94-HB |
| material — of the threaded bushing | brass, nickel-plated |
| material — of the plug-in connectors | PA, glass-fiber reinforced, UL94-HB |
| material — of the plug-in connector seal | FKM |
| material — of the plug-in connector contacts | bronze, tin-coated |
| material — of packaging | LDPE |
Installation/ mounting/ dimensions

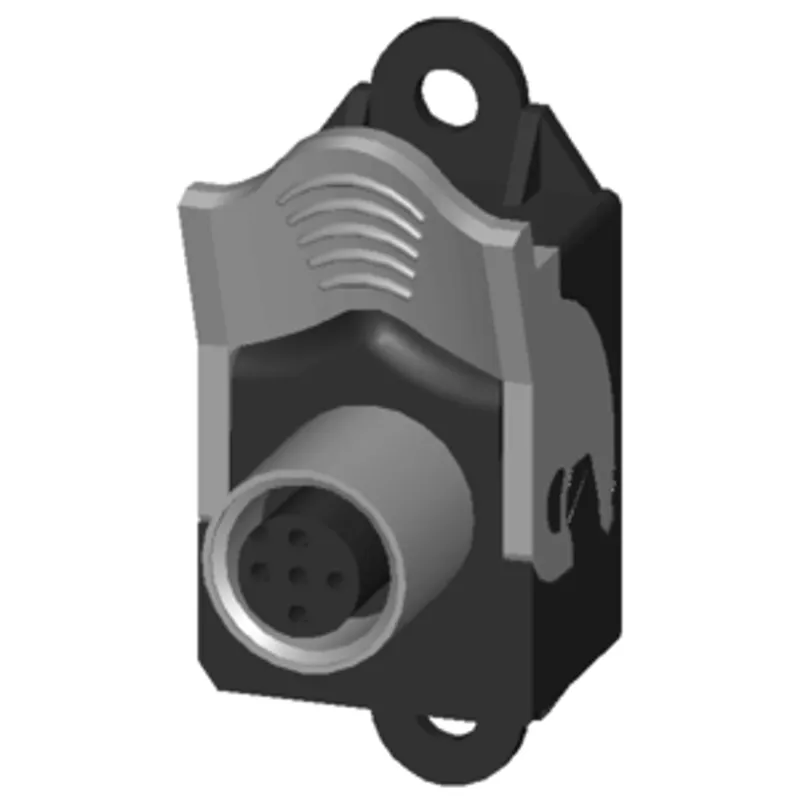

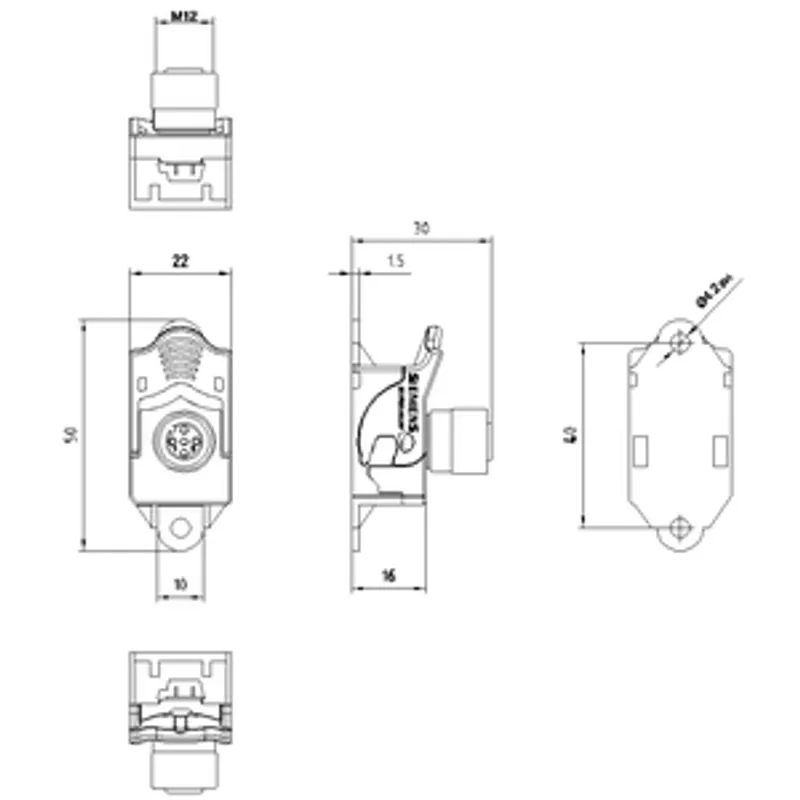

| mounting type | screw mounting with fixing lugs |
| height | 30 mm |
| width | 22 mm |
| length | 50 mm |
Ambient conditions
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature — during operation | -25 ... +75 °C |
| ambient temperature — during storage | -25 ... +75 °C |
Connections/ Terminals
| type of electrical connection | insulation piercing method for AS-Interface flat cable |
| design of the AS-Interface connection | 1x M12 socket |
| feeder type | M12 socket, A-coding |
| mounting type of the flat cable | lever-type connection |
| installation or assembly note | flat cable end not permitted in the branch (without end cap) |
| tightening torque at the M12 connection | 0.4 ... 0.6 N·m |

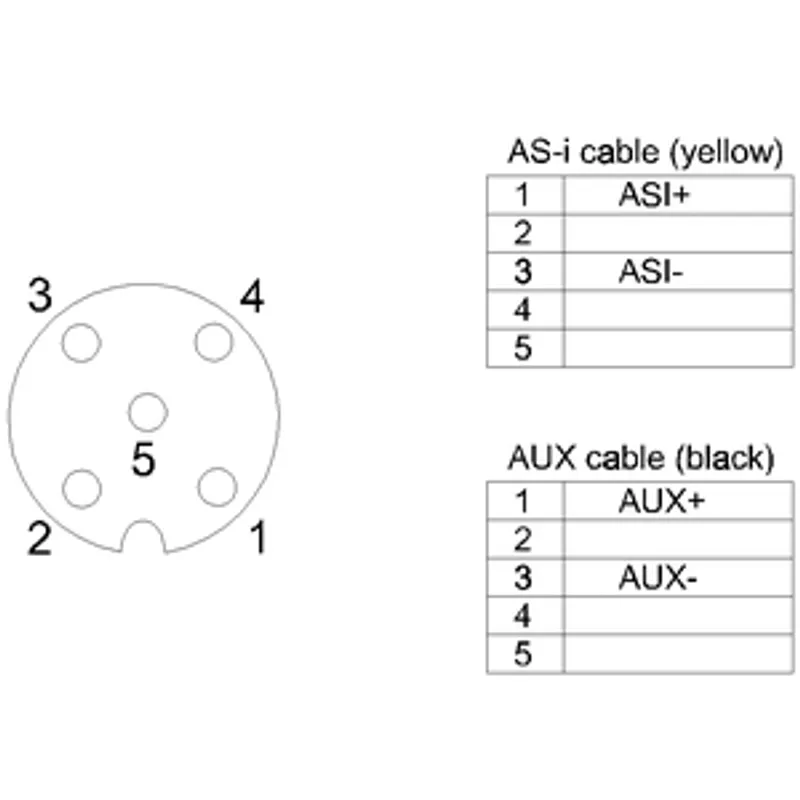

| contact assignment of the M12 connection for connecting an AS-i flat cable — at pin 1 | ASI+ |
| contact assignment of the M12 connection for connecting an AS-i flat cable — at pin 2 | not connected |
| contact assignment of the M12 connection for connecting an AS-i flat cable — at pin 3 | ASI- |
| contact assignment of the M12 connection for connecting an AS-i flat cable — at pin 4 | not connected |
| contact assignment of the M12 connection for connecting an AS-i flat cable — at pin 5 | not connected |
| contact assignment of the M12 connection for connecting an AUX flat cable — at pin 1 | AUX+ |
| contact assignment of the M12 connection for connecting an AUX flat cable — at pin 2 | not connected |
| contact assignment of the M12 connection for connecting an AUX flat cable — at pin 3 | AUX- |
| contact assignment of the M12 connection for connecting an AUX flat cable — at pin 4 | not connected |
| contact assignment of the M12 connection for connecting an AUX flat cable — at pin 5 | not connected |
UL/CSA ratings
| operating voltage at DC according to UL rated value | 42 V |
| operating voltage at AC according to UL rated value | 30 V |
| operational current according to UL 508 rated value | 4 A |
| certificate of suitability UL approval | Yes |
| UL File Number (CCN) | E44653 (NKCR) |
