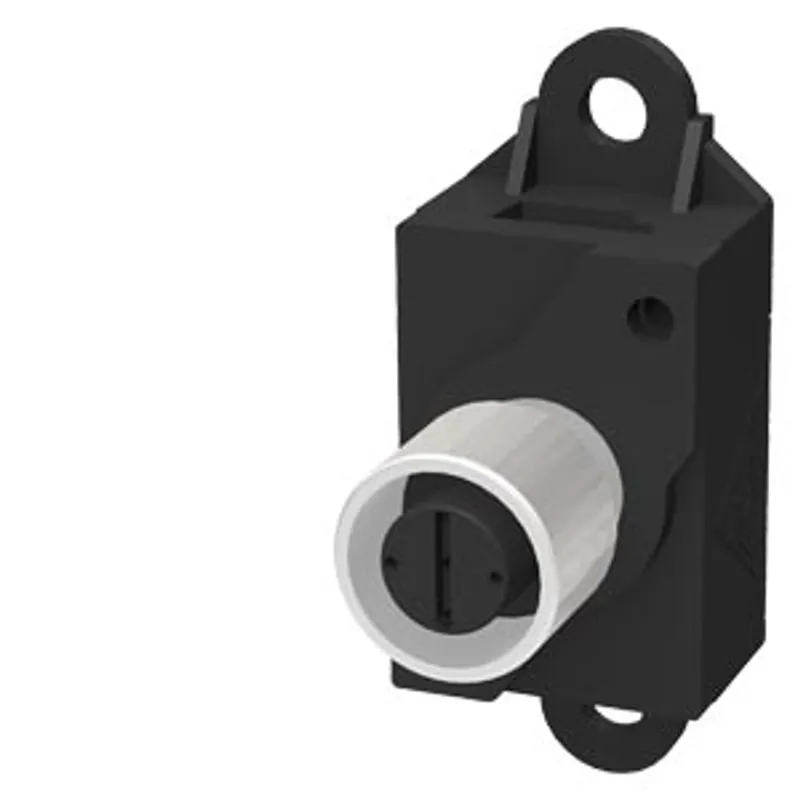

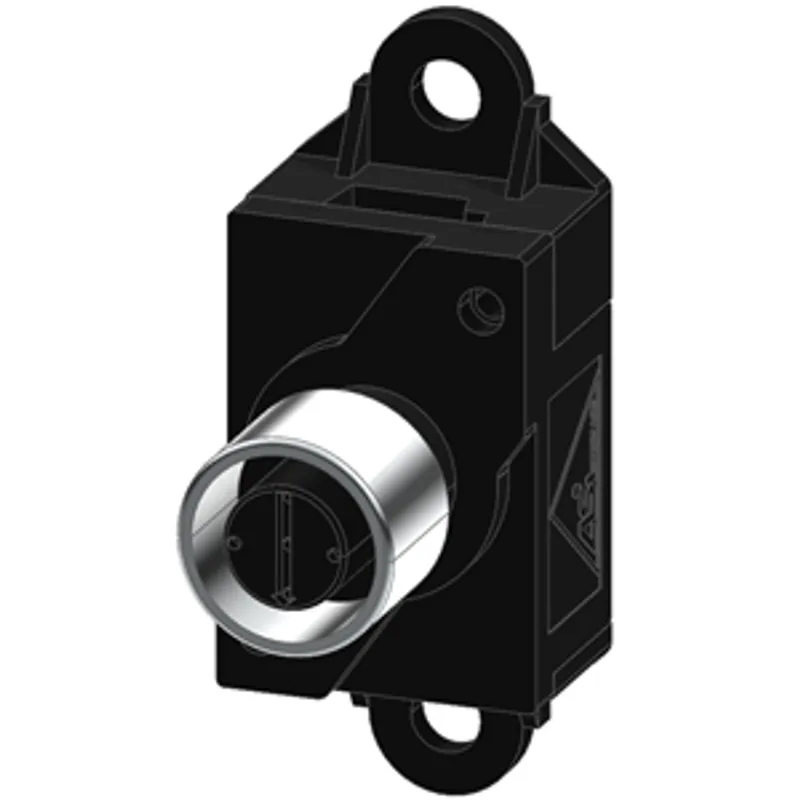

Siemens 3RX9801-0AA00
AS-Interface M12 branch U_ASI without Uaux, with M12 socket
- MPN
- 3RX9801-0AA00
- Category
- Miscellaneous accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RX9801-0AA00?
AS-Interface M12 branch U_ASI without Uaux, with M12 socket
Specifications
General
| product brand name | SIRIUS |
| product category | AS-Interface accessories |
| product designation | AS-i flat cable transition to M12 |
| design of the product | AS-i M12 branch |
| suitability for use | can be used for AS-i flat cable (yellow) and AUX flat cable (black) connections |
General technical data
| number of sockets | 1 |
| operating voltage according to AS-Interface specification | 26.5 ... 31.6 V |
| operational current rated value | 2 A |
| number of poles | 2 |
| contact rating maximum | 2 A |
| protection class IP | IP67 |
| Substance Prohibitance (day/month/year) | 05/01/2012 |
| Net Weight | 0.024 kg |

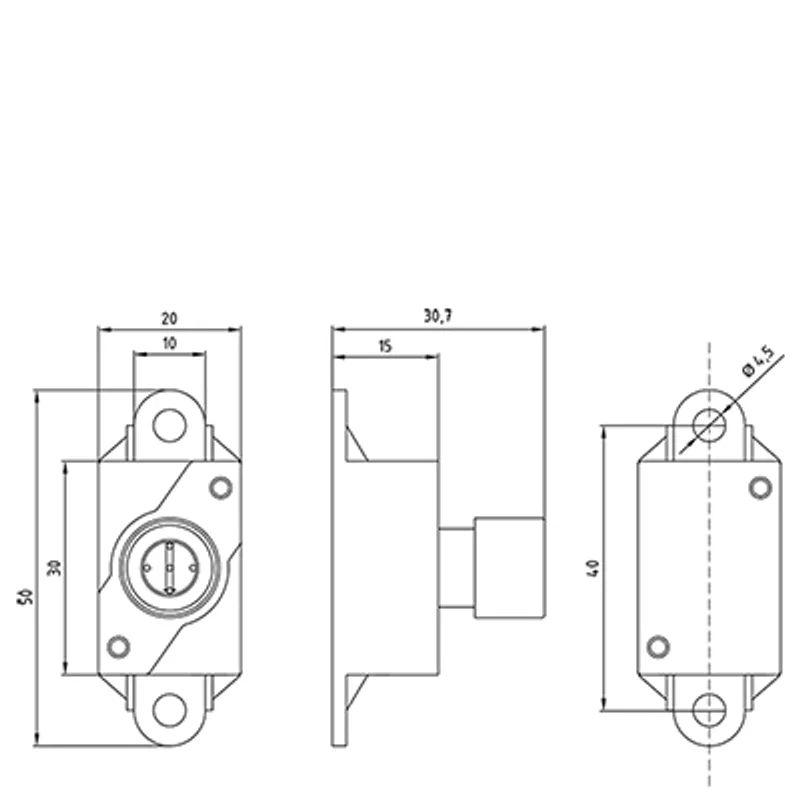

Installation/ mounting/ dimensions
| mounting type | screw mounting with fixing lugs |
| height | 30.7 mm |
| width | 20 mm |
| length | 50 mm |
Ambient conditions
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -25 ... +85 °C |
Connections/ Terminals
| type of electrical connection | insulation piercing method for AS-Interface flat cable |
| design of the AS-Interface connection | 1x M12 socket |
| feeder type | M12 socket, A-coding |
| mounting type of the flat cable | cover with 2 screws |
| contact assignment of the M12 connection for connecting an AS-i flat cable — at pin 1 | ASI+ |
| contact assignment of the M12 connection for connecting an AS-i flat cable — at pin 2 | not connected |
| contact assignment of the M12 connection for connecting an AS-i flat cable — at pin 3 | ASI- |
| contact assignment of the M12 connection for connecting an AS-i flat cable — at pin 4 | not connected |
| contact assignment of the M12 connection for connecting an AS-i flat cable — at pin 5 | not connected |
| contact assignment of the M12 connection for connecting an AUX flat cable — at pin 1 | AUX+ |
| contact assignment of the M12 connection for connecting an AUX flat cable — at pin 2 | not connected |
| contact assignment of the M12 connection for connecting an AUX flat cable — at pin 3 | AUX- |
| contact assignment of the M12 connection for connecting an AUX flat cable — at pin 4 | not connected |
| contact assignment of the M12 connection for connecting an AUX flat cable — at pin 5 | not connected |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3RX9801-0AA00: frequently asked questions
When can 3RX9801-0AA00 be shipped?
3RX9801-0AA00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3RX9801-0AA00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3RX9801-0AA00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RX9801-0AA00, subject to availability and destination.
