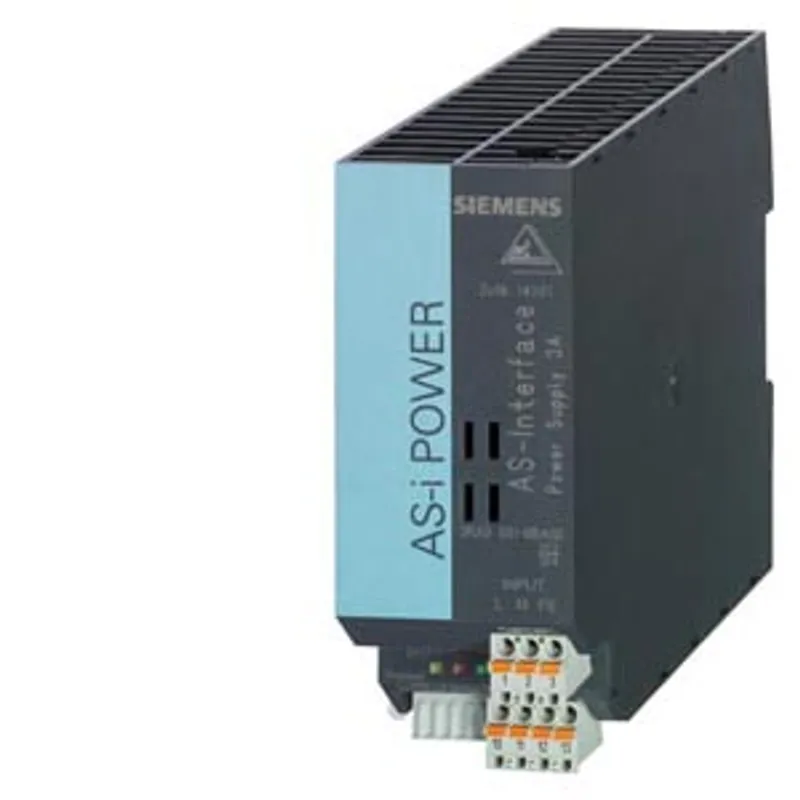

Siemens 3RX9501-0BA00
AS-i Power 3A 120 V/230 V AC AS-Interface power supply unit, IP20 IN: 120 V / 230 V AC OUT: AS-i
- MPN
- 3RX9501-0BA00
- Category
- AS-Interface power supply units
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RX9501-0BA00?
AS-i Power 3A 120 V/230 V AC AS-Interface power supply unit, IP20 IN: 120 V / 230 V AC OUT: AS-i, 3 A (30 V DC), IP20 with integrated ground fault detection, with integrated overload detection with AS-i data decoupling
Specifications
Efficiency/ heat loss
| power loss [W] maximum | 14.4 W |
Safety related data
| protection class IP | IP20 |
Ambient conditions
| ambient temperature — during operation | -10 ... +70 °C |
| ambient temperature — during storage | -25 ... +80 °C |
| fastening method | fixing on standard mounting rail DIN EN 59 022-35 x 7.5 mm snap-on |

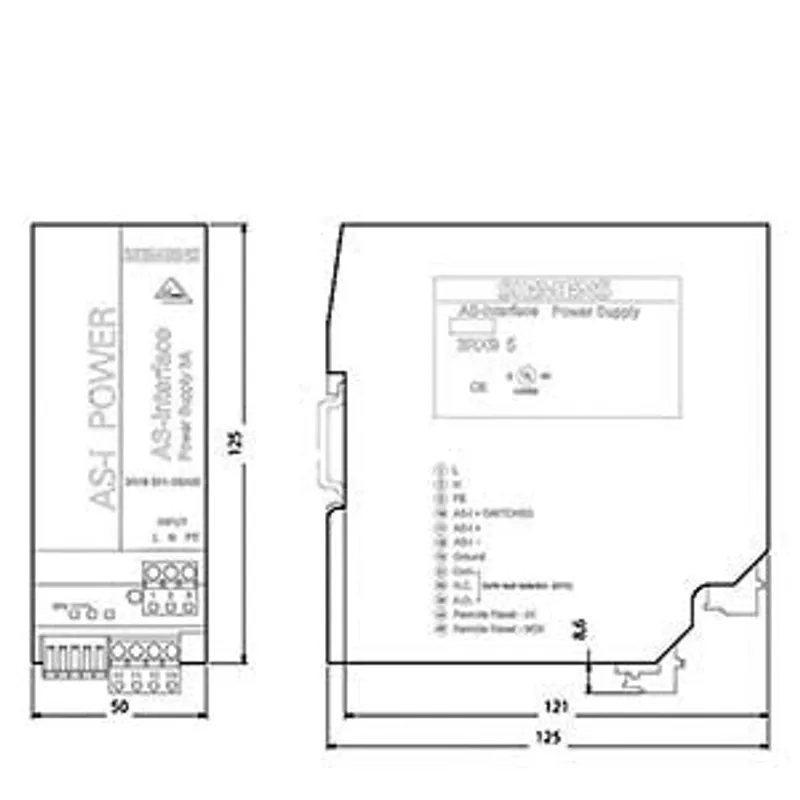

| width | 50 mm |
| height | 125 mm |
| depth | 125 mm |
Approvals Certificates
| global warming potential [CO2 eq] / during manufacturing | 20.7 kg |
| global warming potential [CO2 eq] / during sales | 0.127 kg |
| global warming potential [CO2 eq] / during operation | 763 kg |
| global warming potential [CO2 eq] / after end of life | 0.565 kg |
| global warming potential [CO2 eq] / total | 785 kg |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3RX9501-0BA00: frequently asked questions
When can 3RX9501-0BA00 be shipped?
3RX9501-0BA00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3RX9501-0BA00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3RX9501-0BA00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RX9501-0BA00, subject to availability and destination.
