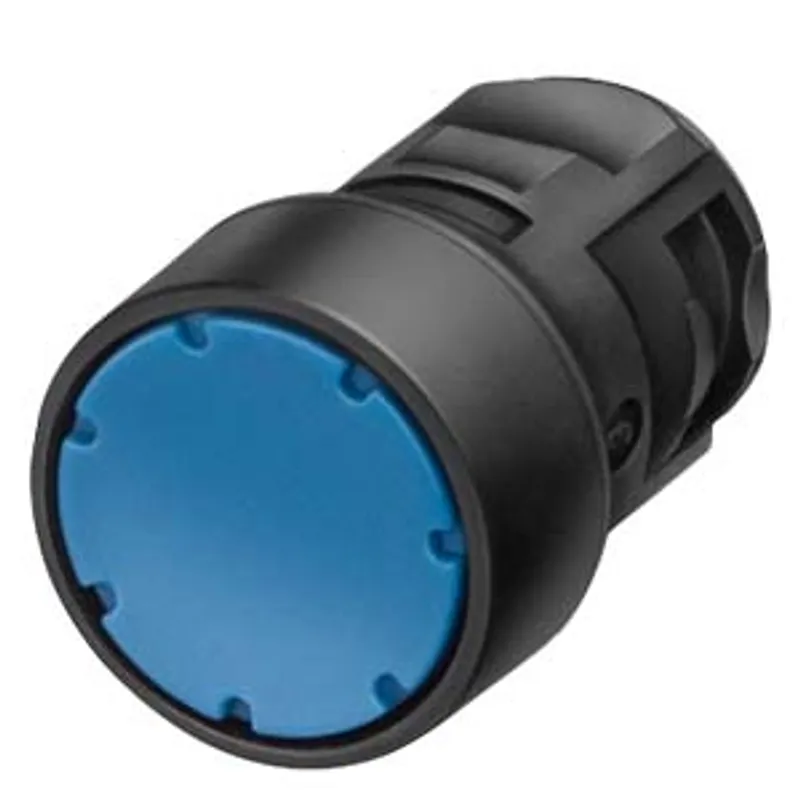

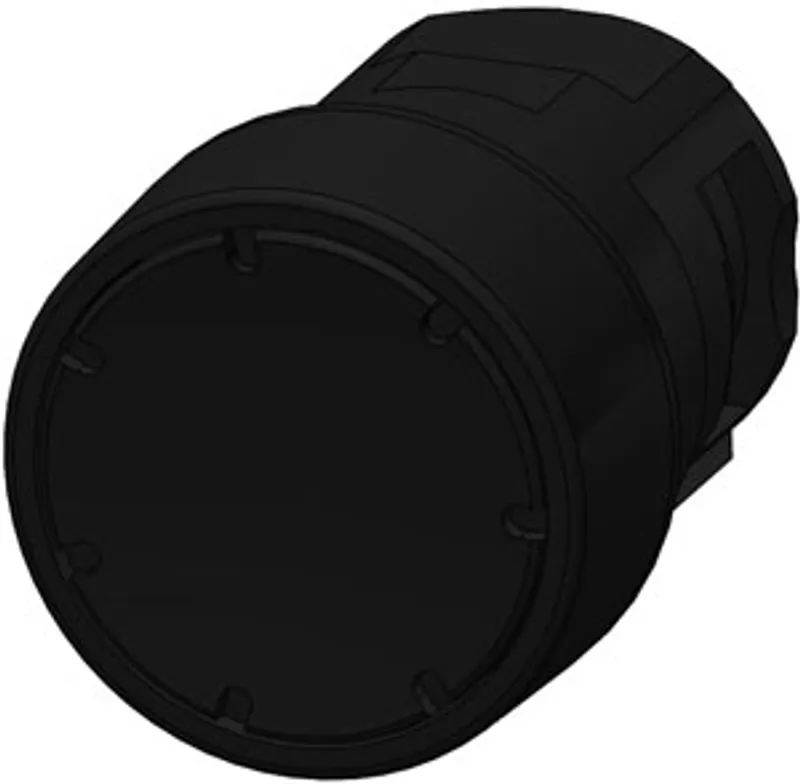

Siemens 3SB2000-0AB01
Pushbutton, 16 mm, round, plastic, black, pushbutton, flat
- MPN
- 3SB2000-0AB01
- Category
- Actuating and signaling elements
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3SB2000-0AB01?
Pushbutton, 16 mm, round, plastic, black, pushbutton, flat
Specifications
General
| product brand name | SIRIUS |
| product designation | Pushbuttons |
| design of the product | Single device round |
| product type designation | 3SB2 |
Enclosure
| number of command points | 1 |
Actuator
| design of the actuating element | Pushbutton |
| principle of operation of the actuating element | momentary contact type |
| product extension optional light source | No |
| color of the actuating element | black |
| material of the actuating element | plastic |
| shape of the actuating element | Flat pushbutton |
| outer diameter of the actuating element | 19 mm |
| type of unlocking device | without |
| number of switching positions | 2 |
Front ring
| product component front ring | Yes |
| design of the front ring | Standard |
| material of the front ring | plastic |
| color of the front ring | black |
Holder
| material of the holder | Plastic |
General technical data
| product function — EMERGENCY OFF function | No |
| product function — EMERGENCY STOP function | No |
| protection class IP | IP65 |
| vibration resistance according to IEC 60068-2-6 | 20 ... 200 Hz: 5 g |
| operating frequency maximum | 1 000 1/h |
| mechanical service life (operating cycles) typical | 10 000 000 |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| Net Weight | 3.758 g |
Connections/ Terminals
| tightening torque of the screws in the bracket maximum | 0.4 N·m |
Ambient conditions
| ambient temperature — during operation | -25 ... +70 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3K6 |
Installation/ mounting/ dimensions
| fastening method | front plate mounting |
| shape of the installation opening | round |
| mounting diameter | 16 mm |
| mounting height | 8 mm |
| installation width | 19 mm |
| installation depth | 50 mm |
