Siemens 3RT2916-1JJ00-Z X90 – Surge suppressor, varistor with LED, 24-48 V AC, 50/60 Hz
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Circuit Protection & Switching |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.01 kg |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 3RT2916-1JJ00-Z X90 be shipped?
3RT2916-1JJ00-Z X90 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3RT2916-1JJ00-Z X90 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3RT2916-1JJ00-Z X90 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RT2916-1JJ00-Z X90, subject to availability and destination.
surge suppressor, varistor with LED, 24-48 V AC, 50/60 Hz, 12-24 V DC, for contactors 3RT2.1 and auxiliary contactors 3RH2, multi-unit packaging, pack = 10 units
Specifications
General technical data
| certificate of suitability | CE / UL / CSA |
| size of contactor | S00 |
| Substance Prohibitance (day/month/year) | 10/01/2009 |
| Net Weight | 0.007 g |
| type of voltage of the control supply voltage | AC/DC |
| control supply voltage at AC – at 50 Hz rated value | 24 ... 48 V |
| control supply voltage at AC – at 60 Hz rated value | 24 ... 48 V |
| control supply voltage frequency – 1 rated value | 50 Hz |
| control supply voltage frequency – 2 rated value | 60 Hz |
| control supply voltage at DC rated value | 12 ... 24 V |
| design of the surge suppressor | Varistor |
Ambient conditions
| ambient temperature – during operation | -25 ... +60 °C |
| ambient temperature – during storage | -40 ... +80 °C |
Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | clip-on |
| height | 46 mm |
| width | 28 mm |
| depth | 9 mm |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet 3RT2916-1JJ00 |
More Siemens parts
Available on requestSiemens 3RT2916-1CE00-Z X90 – Surge suppressor, RC element, 240-400 V AC, 50/60 Hz
Available on requestSiemens 3RT2916-1CF00 – Surge suppressor, RC element, 400-600 V AC, 50/60 Hz
Available on requestSiemens 3RT2916-1GA00-Z X90 – Additional load unit, 180-255 V AC, 50/60 Hz
Available on requestSiemens 3RT2916-1JJ00 – Surge suppressor, varistor with LED, 24-48 V AC, 50/60 Hz
Available on requestSiemens 3RT2916-1JK00 – Surge suppressor, varistor with LED, 48-127 V AC, 50/60 Hz

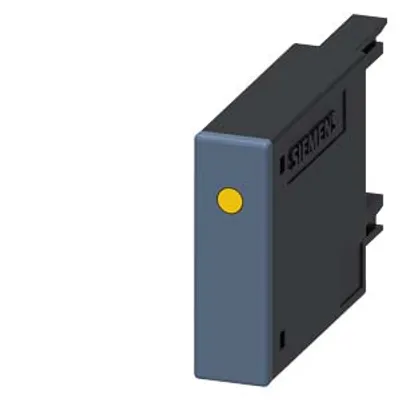

Available on requestSiemens 3RT2916-1JK00-Z X90 – Surge suppressor, varistor with LED, 48-127 V AC, 50/60 Hz
