Schneider Electric XB5RMA04
Pack with 1 wireless push button + 1 configurable receiver + 1 set of 10 colored caps, Harmony XB5, plastic, 22mm, 24...240V AC DC
- MPN
- XB5RMA04
- EAN
- 3606480334474
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric XB5RMA04?
This ready-to-use pack is part of the range diameter 22mm wireless and batteryless pushbuttons XB5R plastic. This pack comprises one wireless and batteryless pushbutton assembled on fixing collar, in handy box and one receiver. Pushbutton and receiver are factory-paired. It is uses a 24V to 240V AC/DC input. The wireless and batteryless pushbutton reduces installation time and cost by eliminating wiring and associated equipment between the transmitters and the control panel. The pushbutton is always available and requires no maintenance (no battery needed). It is supplied with a set of 10 colored caps. It weighs 250g. This wireless batteryless push button provides a simple and reliable solution for remote control of machines, conveyors and cranes.
Specifications
Specifications
| Range of product | Harmony XB5R |
| Product or component type | Wireless and batteryless package |
| Device short name | XB5R |
| Head material | Plastic |
| frequency | 2405 MHz for transmitter, 2405 MHz for receiver |
| emission class | 5M00G7W |
| Antenna type | Omnidirectional |
| Control type | Wireless and batteryless push-button handy box assembled on fixing collar |

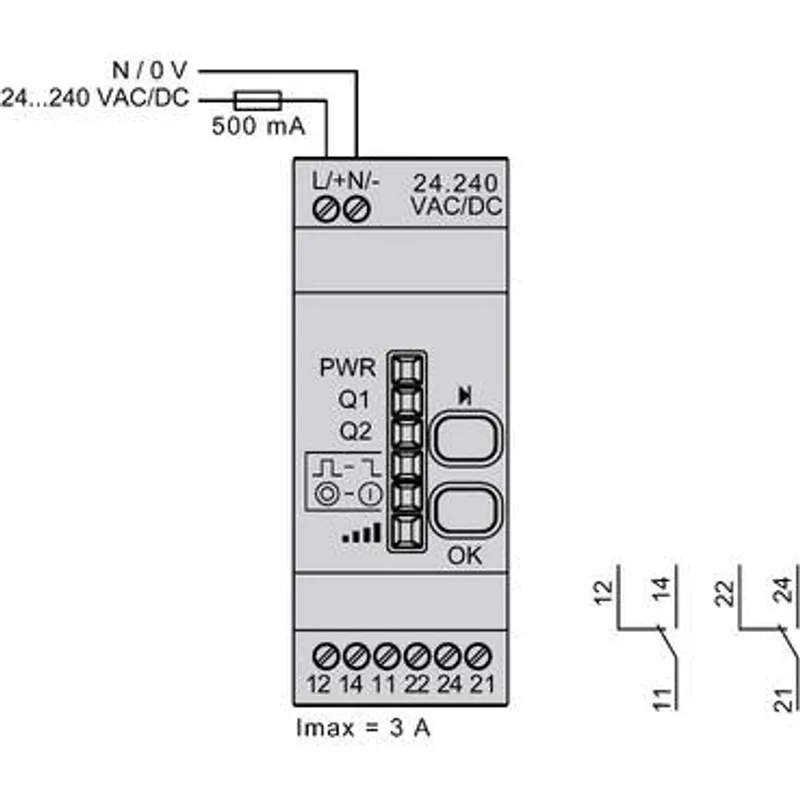

| Type of receiver | Programmable receiver (2 relays) |
| [Us] rated supply voltage | 24...240 V |
| Kit composition | 1 transmitter, 1 set of caps, 1 receiver, 1 fixing collars, 1 diameter: 22 mm, 1 push-button head diameter: 22 mm, 1 handy box |
| Status LED | 1 LED green for power ON, 2 LEDs green for relay ON, 2 LEDs green for function mode, 1 LED green and yellow for reception signal |
| Communication port protocol | Zigbee conforming to IEEE 802.15.4 |
| Max power consumption in W | 1 mW |
| Number of channels | 1 |
| Modulation Technique | O-QPSK |
| Bandwidth | 5 MHz |
| Antenna gain | 0 dBi |
| Product certifications | CCC, CSA, C-Tick, GOST, UL |
| Marking | CE |
| Standards | CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-1, UL 508 |
| Radio agreement | ANATEL, SRRC, ICASA, FCC, ARIB T66, RSS |
Packaging

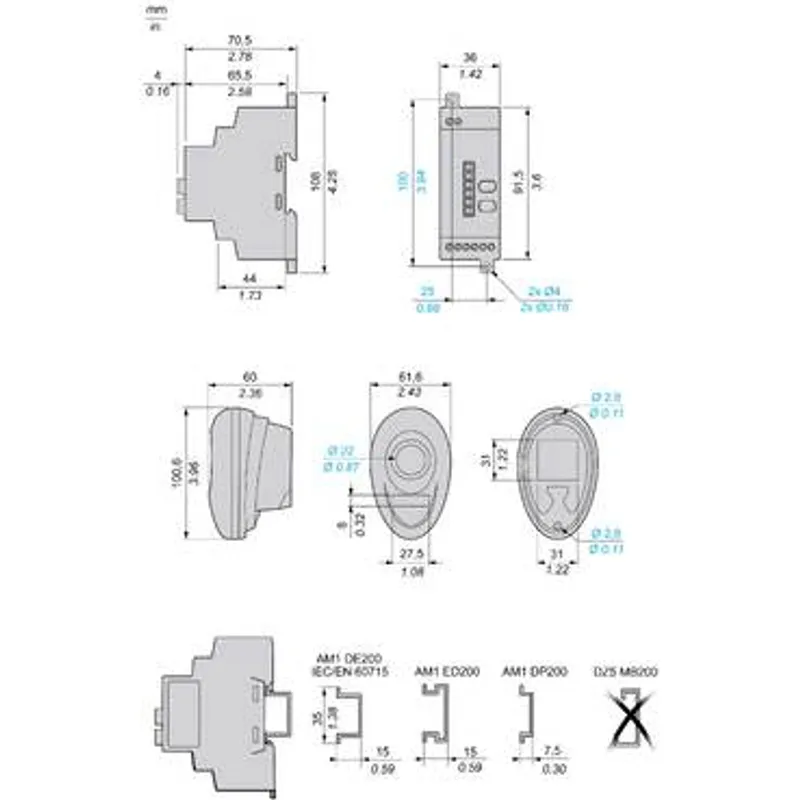

| Package 1 | 1 PCE, 11.000 cm × 10.500 cm × 9.300 cm (L × W × H), 299.000 g |
| Package 2 | 16 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 5.166 kg |
