Schneider Electric XB5RMB03
Pack with 1 wireless and batteryless push button +1 non configurable receiver + 1 set of caps, Harmony XB5, plastic, 22mm, 24V DC
- MPN
- XB5RMB03
- EAN
- 3606480334467
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric XB5RMB03?

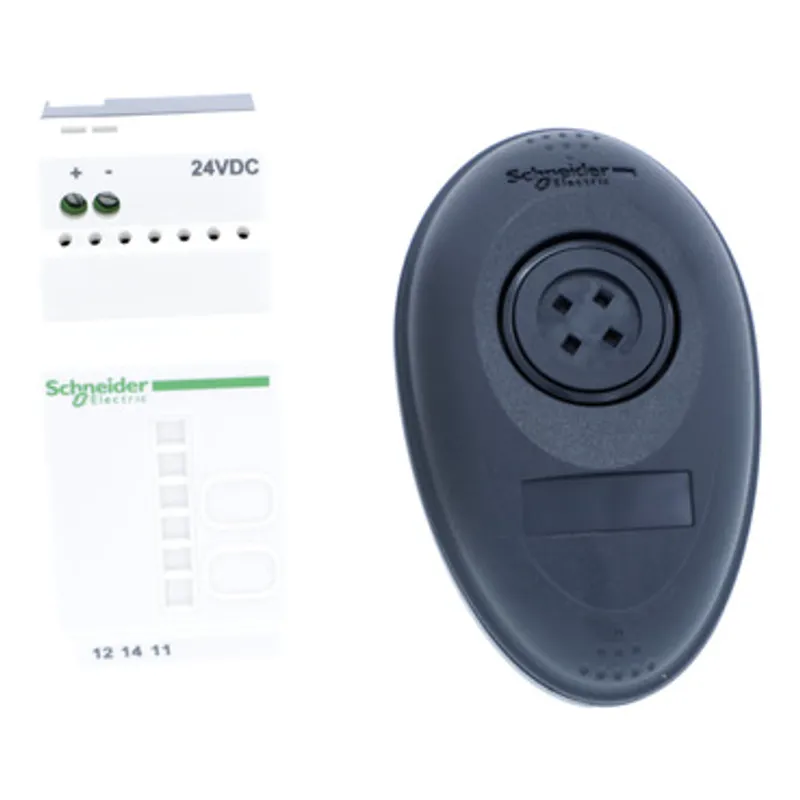

This Harmony XB5, flush black wireless push button and receiver unitset is supplied with 24V DC input and is mounted in a plastic handybox. This wireless batteryless push button with handybox is ideal for standalone remote control of conveyor and unaccessible machines. It is delivered pre-mounted in a handy box which saves the need for assembly in a cabinet. The receiver is also DIN rail mountable. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is easily installed into standard 22mm diameter cut-outs. It complies with most radio emission standards, for a guaranteed comfort during design and project approval.
Specifications
Specifications
| Range of product | Harmony XB5R |
| Product or component type | Wireless and batteryless package |
| Device short name | XB5R |
| Head material | Plastic |
| frequency | 2405 MHz for transmitter, 2405 MHz for receiver |
| emission class | 5M00G7W |
| Antenna type | Omnidirectional |
| Control type | Wireless and batteryless push-button handy box assembled on fixing collar |
| Type of receiver | Non-programmable receiver (1 relay) |
| [Us] rated supply voltage | 24 V |
| Kit composition | 1 transmitter, 1 set of caps, 1 receiver, 1 fixing collars, 1 diameter: 22 mm, 1 push-button head diameter: 22 mm, 1 handy box |
| Communication port protocol | Zigbee conforming to IEEE 802.15.4 |
| Max power consumption in W | 1 mW |
| Number of channels | 1 |
| Modulation Technique | O-QPSK |
| Bandwidth | 5 MHz |
| Antenna gain | 0 dBi |
| Product certifications | UL, GOST, CCC, C-Tick, CSA |
| Marking | CE |
| Standards | CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-1, UL 508 |
| Radio agreement | RSS, SRRC, ICASA, FCC, ANATEL, ARIB T66 |
Packaging
| Package 1 | 1 PCE, 10.800 cm × 10.300 cm × 9.300 cm (L × W × H), 245.000 g |
| Package 2 | 16 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 4.400 kg |
