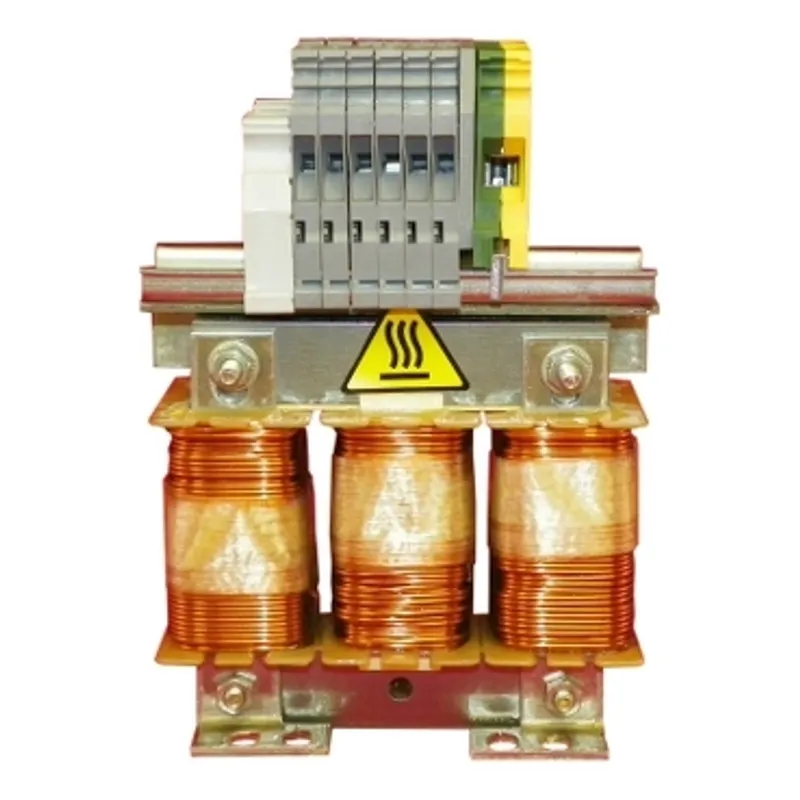

Schneider Electric VW3A4554
Line/motor choke - 1 mH - 31 A - 3 phases - 90 W - for variable speed drive
- MPN
- VW3A4554
- EAN
- 3389118065932
- Category
- Altivar 31
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A4554?
This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 31A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 1mH. It weighs 6kg and its dimensions are, 155mm wide, 170mm high, 135mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.
Specifications
Specifications
| Range of product | Altivar |
| Product or component type | Line/motor choke |
| Product compatibility | Variable speed drive ATV310 motor: 7.5 kW - motor choke - 1 per drive, ATV31CD11N4 - line choke - 1 per drive, Variable speed drive ATV320 motor: 15 kW 525...600 V - three phase - motor choke - 1 per drive, ATV312HU55M3 - line choke - 1 per drive, LXM32.D30N4 - line choke - 1 per drive, ATV71HD18Y - line choke - 1 per drive, ATV312HD15S6 - motor choke - 1 per drive, ATV312HD11S6 - motor choke - 1 per drive, ATV312HD15N4 - line choke - 1 per drive, ATV61WD11N4C - line choke - 1 per drive, ATV61HD15N4 - line choke - 1 per drive, ATV71WD15N4 - line choke - 1 per drive, Variable speed drive ATV340 motor: 7.5 kW 380...480 V - line choke - 1 per drive, Variable speed drive ATV930 motor: 18.5 kW 500...690 V - three phase - line choke - 1 per drive, LXM32MC10N4 - line choke - 1 per drive, ATV312HD11N4 - motor choke - 1 per drive, Variable speed drive ATV320 motor: 5.5 kW 200...240 V - three phase - line choke - 1 per drive, Variable speed drive ATV320 motor: 7.5 kW 380...500 V - three phase - motor choke - 1 per drive, Variable speed drive ATV310 motor: 11 kW - line choke - 1 per drive, ATV312HU40M3 - line choke - 1 per drive, Variable speed drive ATV320 motor: 5.5 kW 200...240 V - three phase - motor choke - 1 per drive, ATV312HU40M3 - motor choke - 1 per drive, ATV61HD22Y - line choke - 1 per drive, Variable speed drive ATV340 motor: 11 kW 380...480 V - line choke - 1 per drive, ATV32HD11N4 - motor choke - 1 per drive, Variable speed drive ATV930 motor: 600 V - three phase - line choke - 25 hp - 1 per drive, LXM32.D18N4 - line choke - 1 per drive, Variable speed drive ATV320 motor: 15 kW 380...500 V - three phase - line choke - 1 per drive, ATV61HU55M3 - line choke - 1 per drive, ATV32HD11N4 - line choke - 1 per drive, ATV12PU40M3 - motor choke - 1 per drive, Variable speed drive ATV340 motor: 15 kW 380...480 V - line choke - 1 per drive, LXM32.D72N4 - line choke - 1 per drive, ATV312HU75N4 - motor choke - 1 per drive, Variable speed drive ATV320 motor: 11 kW 380...500 V - three phase - line choke - 1 per drive, ATV61WD11N4 - line choke - 1 per drive, ATV61HD11N4 - line choke - 1 per drive, ATV71WD11N4 - line choke - 1 per drive, ATV31CU75N4 - motor choke - 1 per drive, Variable speed drive ATV630 motor: 600 V - three phase - line choke - 30 hp - 1 per drive, Variable speed drive ATV320 motor: 4 kW 200...240 V - three phase - motor choke - 1 per drive, ATV312HU75M3 - line choke - 1 per drive, ATV61WD15N4 - line choke - 1 per drive, Variable speed drive ATV320 motor: 15 kW 525...600 V - three phase - line choke - 1 per drive, Variable speed drive ATV630 motor: 600 V - three phase - line choke - 25 hp - 1 per drive, ATV31CD15N4 - line choke - 1 per drive, ATV71PD11N4Z - line choke - 1 per drive, ATV312HD11N4 - line choke - 1 per drive, Variable speed drive ATV320 motor: 11 kW 380...500 V - three phase - motor choke - 1 per drive, ATV312HD15S6 - line choke - 1 per drive, Variable speed drive ATV320 motor: 7.5 kW 200...240 V - three phase - line choke - 1 per drive, ATV61HD18Y - line choke - 1 per drive, Variable speed drive ATV630 motor: 18.5 kW 500...690 V - three phase - line choke - 1 per drive, ATV32HD15N4 - line choke - 1 per drive, ATV71HU40M3 - line choke - 1 per drive, Variable speed drive ATV310 motor: 7.5 kW - line choke - 1 per drive, Variable speed drive ATV930 motor: 600 V - three phase - line choke - 30 hp - 1 per drive, Variable speed drive ATV320 motor: 4 kW 200...240 V - three phase - line choke - 1 per drive, ATV312HU55M3 - motor choke - 1 per drive, Variable speed drive ATV320 motor: 7.5 kW 200...240 V - three phase - motor choke - 1 per drive, ATV312HU75M3 - motor choke - 1 per drive, ATV61HU40M3 - line choke - 1 per drive, Variable speed drive ATV930 motor: 22 kW 500...690 V - three phase - line choke - 1 per drive, ATV32HU75N4 - motor choke - 1 per drive, Variable speed drive ATV310 motor: 11 kW - motor choke - 1 per drive, LXM32MD85N4 - line choke - 1 per drive, ATV71HD11N4 - line choke - 1 per drive, Variable speed drive ATV320 motor: 11 kW 525...600 V - three phase - line choke - 1 per drive, ATV71HD22Y - line choke - 1 per drive, ATV31CD11N4 - motor choke - 1 per drive, ATV71HD15N4 - line choke - 1 per drive, Variable speed drive ATV630 motor: 22 kW 500...690 V - three phase - line choke - 1 per drive, ATV71HU55M3 - line choke - 1 per drive, ATV12HU40M3 - motor choke - 1 per drive, Variable speed drive ATV320 motor: 11 kW 525...600 V - three phase - motor choke - 1 per drive, ATV61WD15N4C - line choke - 1 per drive |
| number of phases | Three phase |
| Range compatibility | Lexium 32, Altivar 312 Solar, Easy Altivar 310, Altivar 12, Lexium 62, Altivar 71, Altivar Machine ATV340, Altivar Machine ATV320, Altivar Process ATV900, Altivar 31C, Altivar 61, Lexium 52, Altivar 32, Altivar 312, Altivar Process ATV600, Easy Altivar 310L |
| Device application | Reduction of current harmonics, Reduction of overvoltages at motor terminals |
| Value of inductance | 1 mH |
| [In] rated current | 31 A |
| Thermal losses | 90 W |
| Electrical connection | Terminal 16 mm² / AWG 4, 1.2…1.4 N.m |
| power supply frequency | 50...60 Hz |
| Max current | 1.65 x nominal current (duration = 60 s) |
| Maximum voltage drop at rated load | 5 % |
| Electrical insulation class | Class F |
| Minimum clearance distance | 5.5 mm IEC 60664 |
| Leakage distance | 11.5 mm conforming to IEC 60664 |
| Net weight | 6 kg |
| Width | 155 mm |
| Height | 170 mm |
| Depth | 135 mm |
| Standards | EN 50178, IEC 60076 (with HD398), VDE 0160 level 1 |
| IP degree of protection | Choke: IP00, Terminals: IP10 |
| Environmental characteristic | 3B1 conforming to IEC 721-3-3, 3C2 conforming to IEC 721-3-3, 3S1 conforming to IEC 721-3-3 |
| Pollution degree | 2 conforming to EN 50178 |
| Vibration resistance | 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Relative humidity | 0…95 % |
| Ambient air temperature for operation | 45…55 °C (with current derating of 2 % per °C), 0…45 °C (without current derating) |
| Ambient air temperature for storage | -25…70 °C |
| Operating altitude | <= 1000 m without current derating, 1000...3000 m with current derating 1 % per 100 m |
Packaging
| Package 1 | 1 PCE, 26.500 cm × 25.000 cm × 21.500 cm (L × W × H), 6.022 kg |
| Package 2 | 12 S06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 85.252 kg |
