Schneider Electric VW3A3609
Communication module DeviceNet, Altivar, 500kbps, 1 removable 5 way screw connector
- MPN
- VW3A3609
- EAN
- 3606480198991
- Category
- Altivar Process ATV600
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A3609?

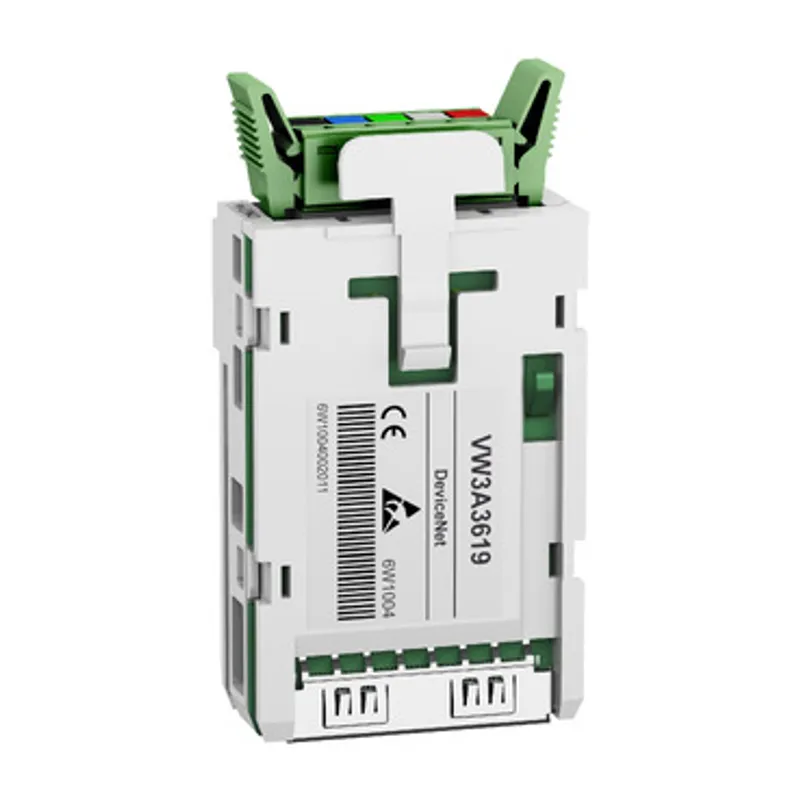

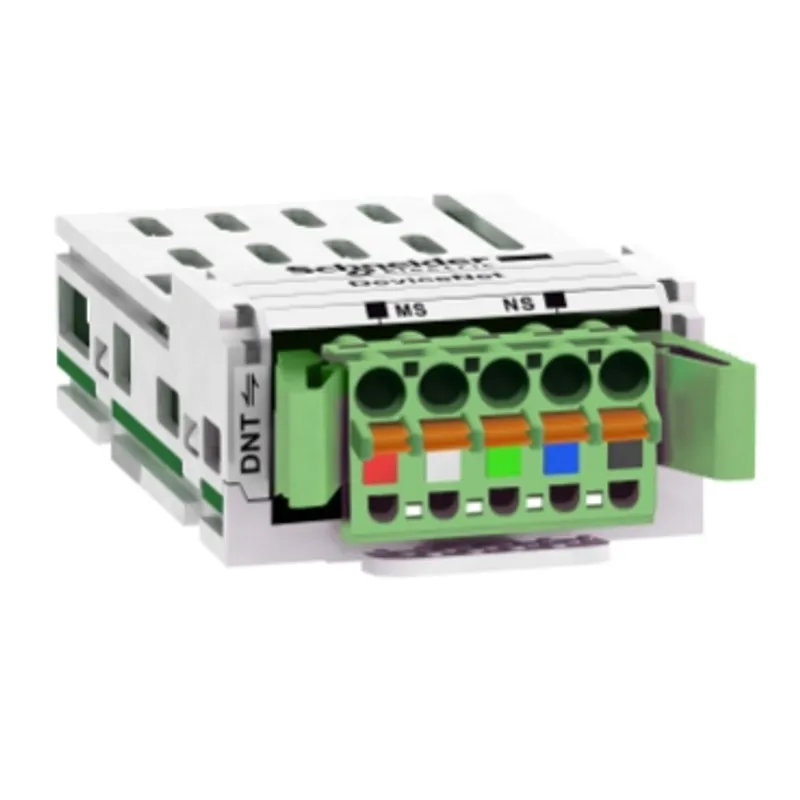

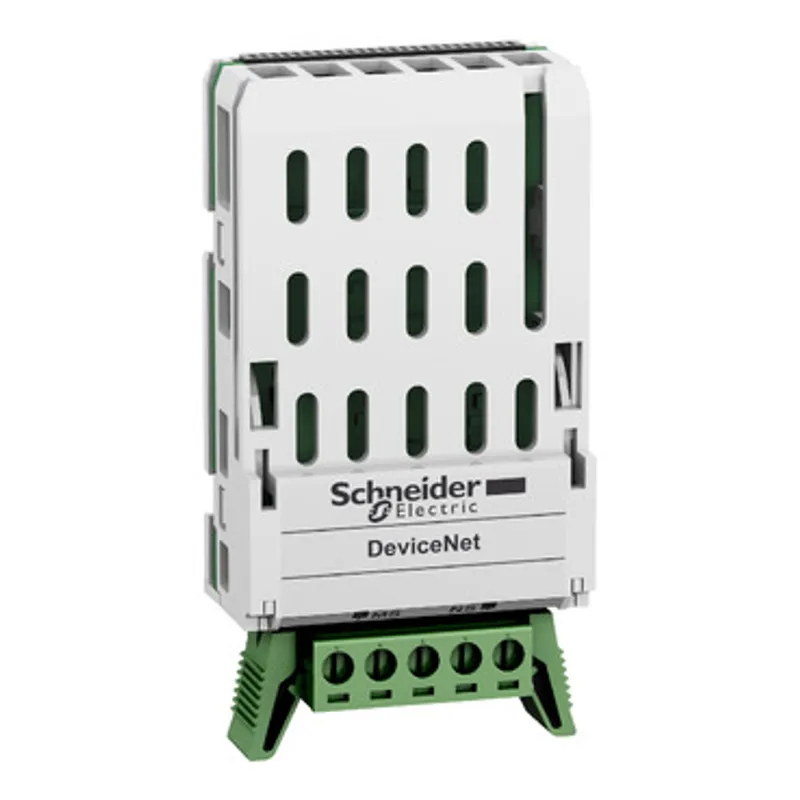

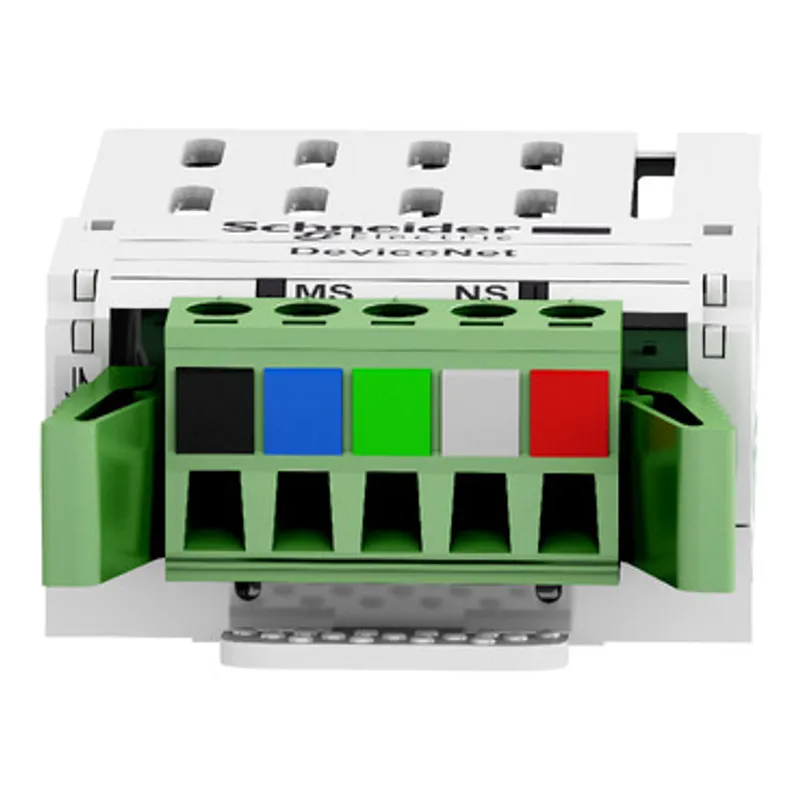

This DeviceNet communication module is an option for variable speed drives of Altivar range. It is equipped with a 5-way removable screw connector. It is compatible with Altivar Machine and Altivar Process drives. It enables integration of your variable speed drive in your process control network. It weighs 300g.
Specifications
Specifications
| Range of product | Altivar |
| Product or component type | Communication module |
| Range compatibility | Altivar Process Modular, Altivar 32, Altivar Process ATV600, Altivar Machine ATV340 except Sercos drives, Altivar Process ATV900, Altivar Machine ATV320 |
| Communication port protocol | DeviceNet |
| Electrical connection | 1 connector 1 removable 5-way screw connector |
| Transmission rate | 125 kbps, 250 kbps and 500 kbps configurable |
| Maximum cable distance between devices | 100 m for 500 kbps, 500 m for 125 kbps |
| Addressing | 1...63 configurable by graphic terminal/SoMove software |
| Communication service | Inputs : polled, change of state, cyclic, Outputs : polled, ODVA AC drive and CiA 402 profile, Auto device replacement, Communication monitoring time out adjustable by DeviceNet configurator |
| Display type | 1 LED for MS (Module Status), 1 LED for NS (Network Status) |
| diagnostic function | Control mode received by graphic terminal, Received instruction by graphic terminal |
| Bus profile | CIP AC Drive, CiA 402 |
| Net weight | 0.3 kg |
Packaging
| Package 1 | 1 PCE, 8.900 cm × 6.200 cm × 4.700 cm (L × W × H), 67.000 g |
| Package 2 | 100 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 7.098 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3A3609: frequently asked questions
When can VW3A3609 be shipped?
VW3A3609 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A3609 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A3609 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A3609, subject to availability and destination.
