Schneider Electric VW3A3601
Communication module Ethercat, Altivar, 100Mbps, 2 x RJ45 connectors
- MPN
- VW3A3601
- EAN
- 3606480326714
- Category
- Lexium 32 & Motors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A3601?

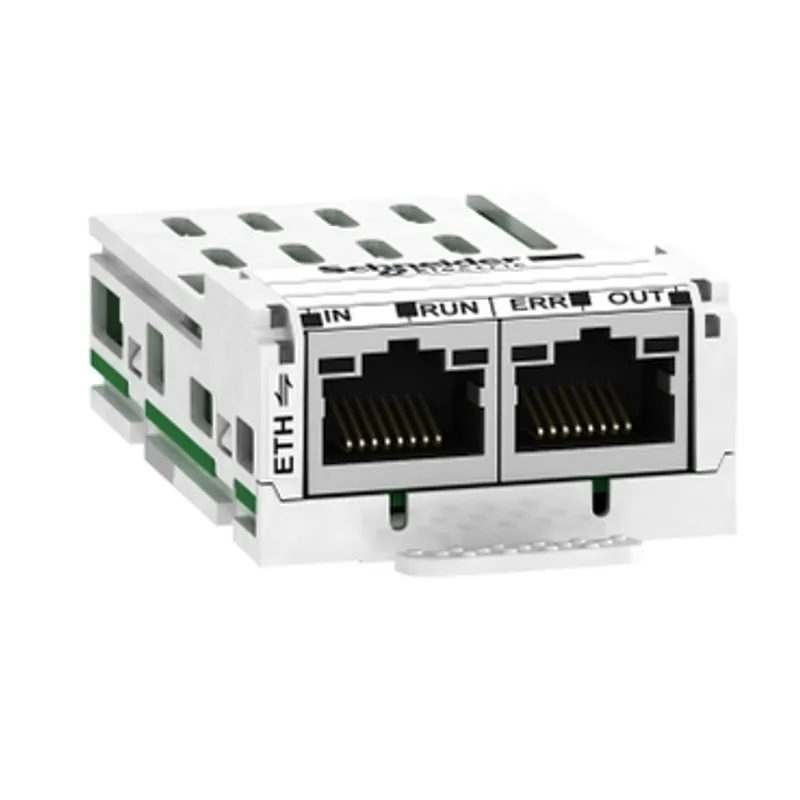

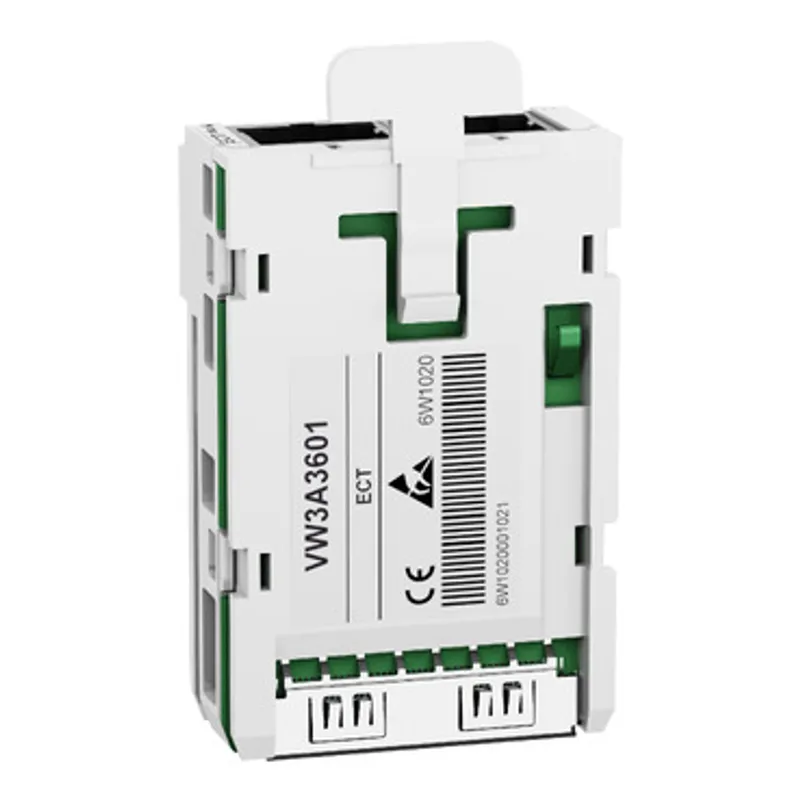

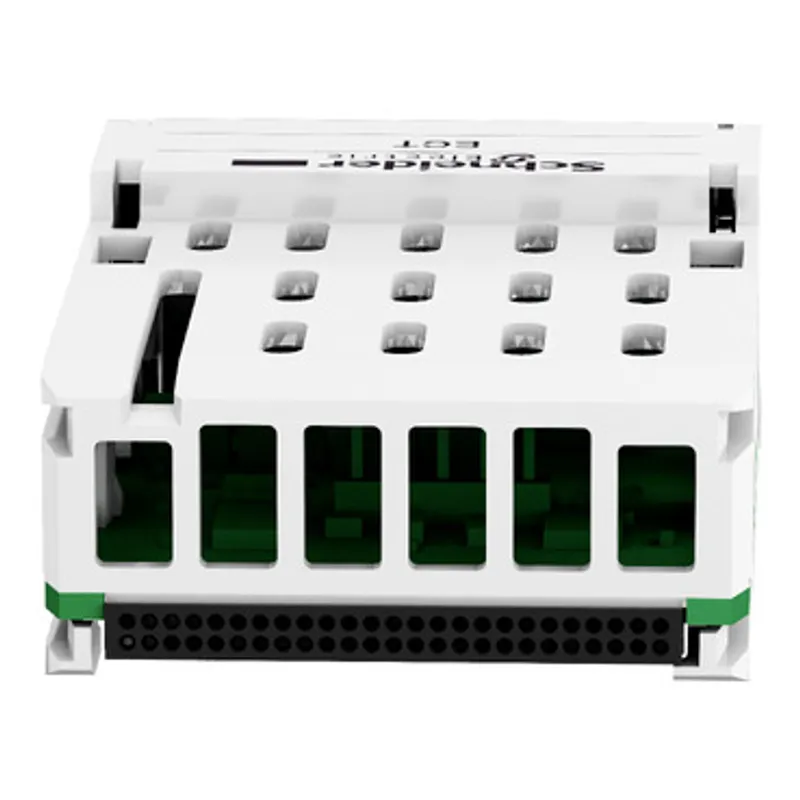

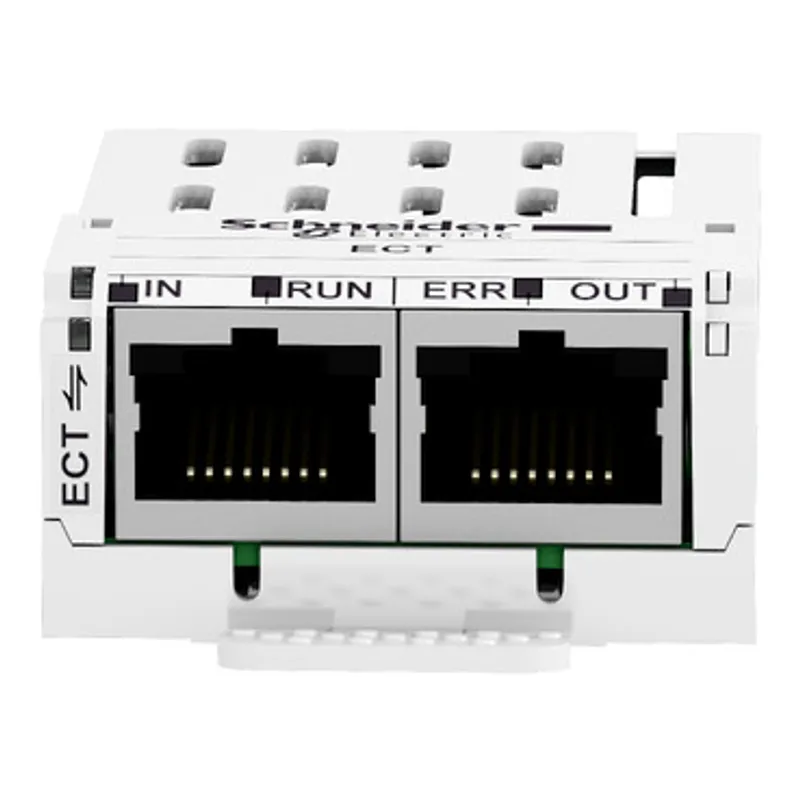

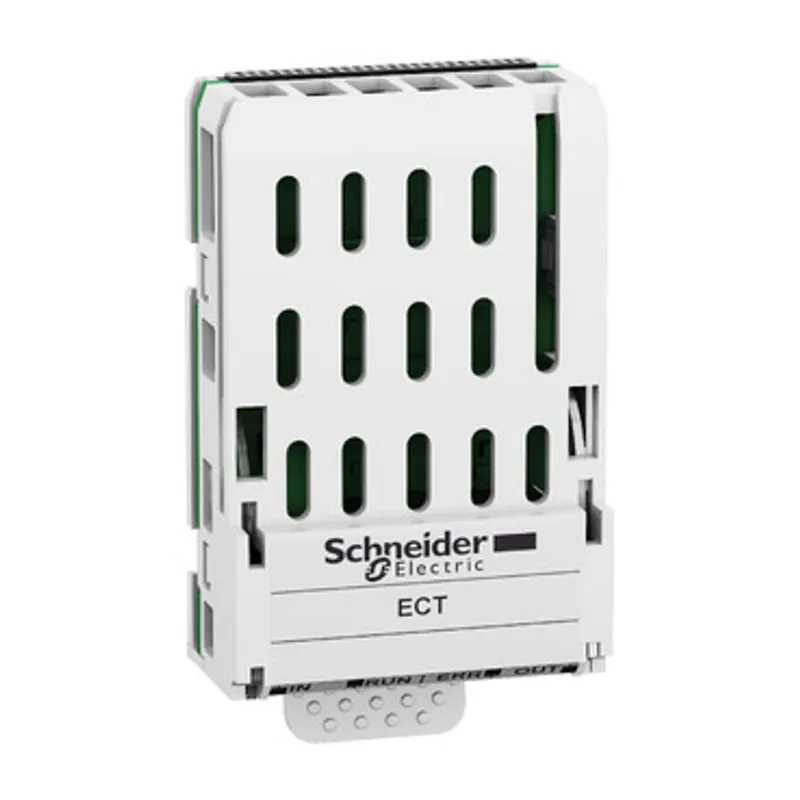

This EtherCAT communication module is an option for variable speed drives of Altivar range. It is equipped with 2 RJ45 connectors. It is compatible with Altivar Machine and Altivar Process drives. It enables integration of your variable speed drive in your process control network. It weighs 0.29kg.
Specifications
Specifications
| Range of product | Altivar |
| Product or component type | Communication module |
| Accessory / separate part category | Communication accessories |
| Product compatibility | Lexium 32M |
| Range compatibility | Altivar Process Modular, Altivar Machine ATV340 except Sercos drives, Altivar Machine ATV320, Altivar Process ATV900, Altivar 32, Lexium 32 |
| Communication port protocol | EtherCAT |
| Electrical connection | 2 connectors RJ45 |
| Transmission rate | 100 Mbps |
| Maximum cable distance between devices | 100 m for 100 Mbps |
| Addressing | Logical addressing, Node addressing, Position addressing |
| Communication service | PDO and SDO support, Drive profile CiA 402 velocity mode conforming to IEC 61800-7-201 (CiA 402), CANopen over EtherCAT (CoE) |
| Display type | 1 LED for input status, 1 LED for RUN, 1 LED for error, 1 LED for output status |
| Standards | IEC 61800-7-201 (CiA 402) |
Packaging
| Package 1 | 1 PCE, 9.000 cm × 4.500 cm × 6.300 cm (L × W × H), 61.000 g |
| Package 2 | 100 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 6.580 kg |
