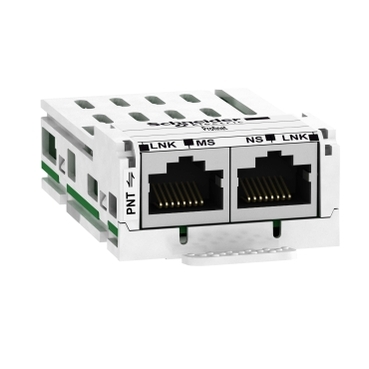

Schneider Electric VW3A3627
Communication module Profinet, Altivar, 100Mbits, 2 x RJ45 connectors
- MPN
- VW3A3627
- EAN
- 3606480496967
- Category
- Altivar Process ATV600
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric VW3A3627?
This Altivar Profinet communication module has 2 ports with RJ45 connectors. It is compatible with Altivar Process ATV600 (ATV630, ATV650), Altivar Process ATV900 (ATV930, ATV950), Altivar Machine ATV320, Altivar 32 and Altivar Machine ATV340. Removable module allows last minute decisions on drive communication protocol and thus facilitates installation project management.
Specifications
Specifications
| Range of product | Altivar |
| Product or component type | Communication module |
| Range compatibility | Altivar Process ATV600, Altivar Machine ATV340 except Sercos drives, Altivar Machine ATV320, Altivar 32, Altivar Process Modular, Altivar Process ATV900 |
| Communication port protocol | Link Layer Discovery Protocol, PROFINET |
| Electrical connection | 2 connectors RJ45, Ethernet |
| Transmission rate | 100 Mbits |
| Display type | 1 LED for MS (Module Status), 1 LED for NS (Network Status), 1 LED for TX/RX (Transmit/Receive port 1), 1 LED for TX/RX (Transmit/Receive port 2) |
| Bus profile | PROFIdrive |
| Net weight | 0.3 kg |
| Standards | IEC 61800-7-201 (CiA 402) |
Packaging
| Package 1 | 1 PCE, 8.900 cm × 6.500 cm × 4.600 cm (L × W × H), 63.000 g |
| Package 2 | 100 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 6.895 kg |
| Package 3 | 800 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 63.160 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3A3627: frequently asked questions
When can VW3A3627 be shipped?
VW3A3627 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A3627 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A3627 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A3627, subject to availability and destination.
