Schneider Electric VW3A3607
Communication module Profibus DP V1, Altivar, 12Mbps, 1 female SUB D9 connector
- MPN
- VW3A3607
- EAN
- 3606480177583
- Category
- Lexium 32 & Motors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A3607?

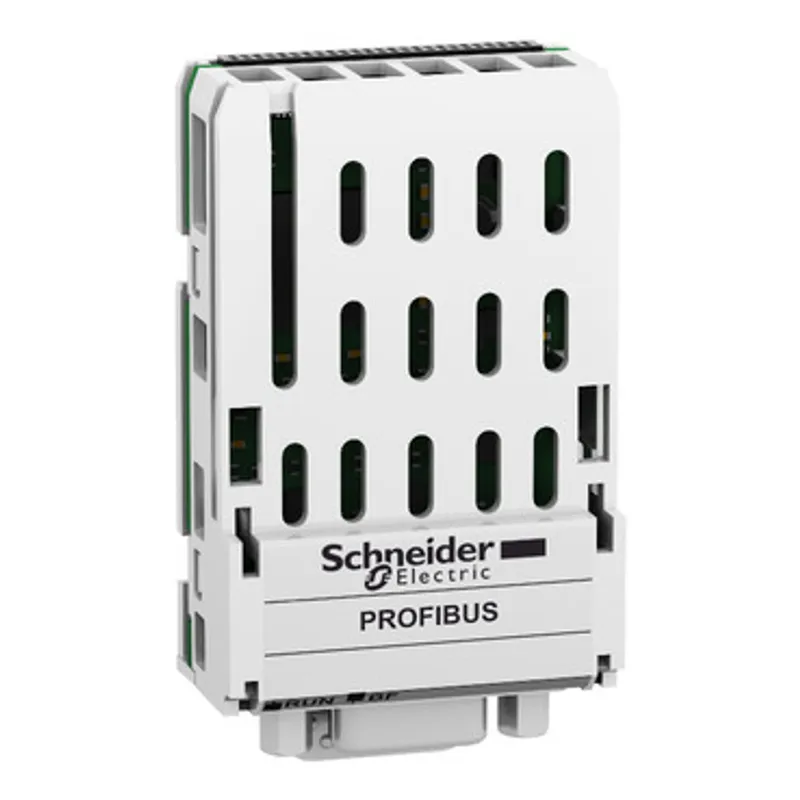

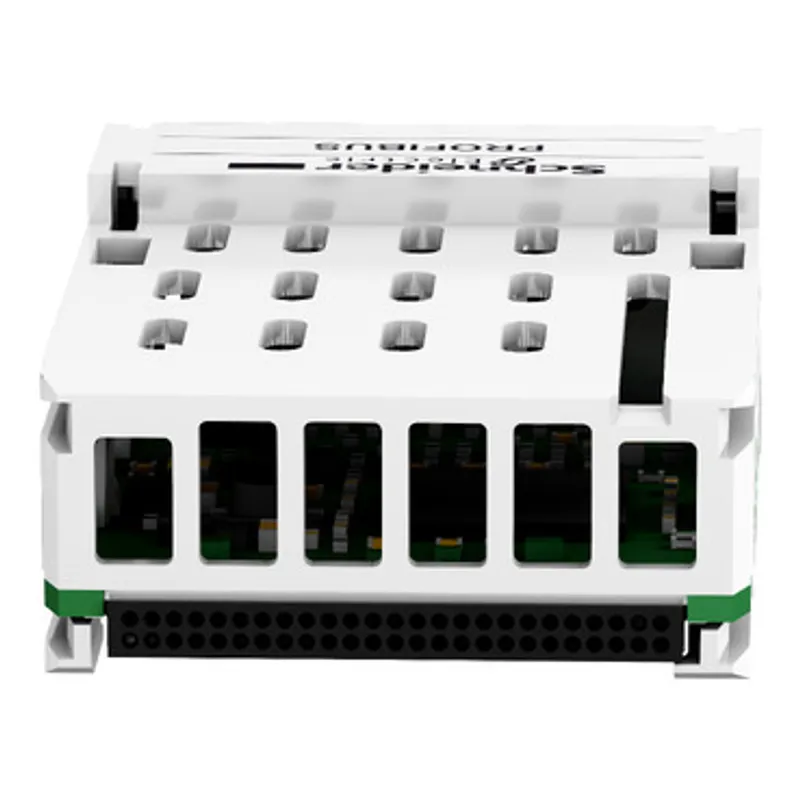

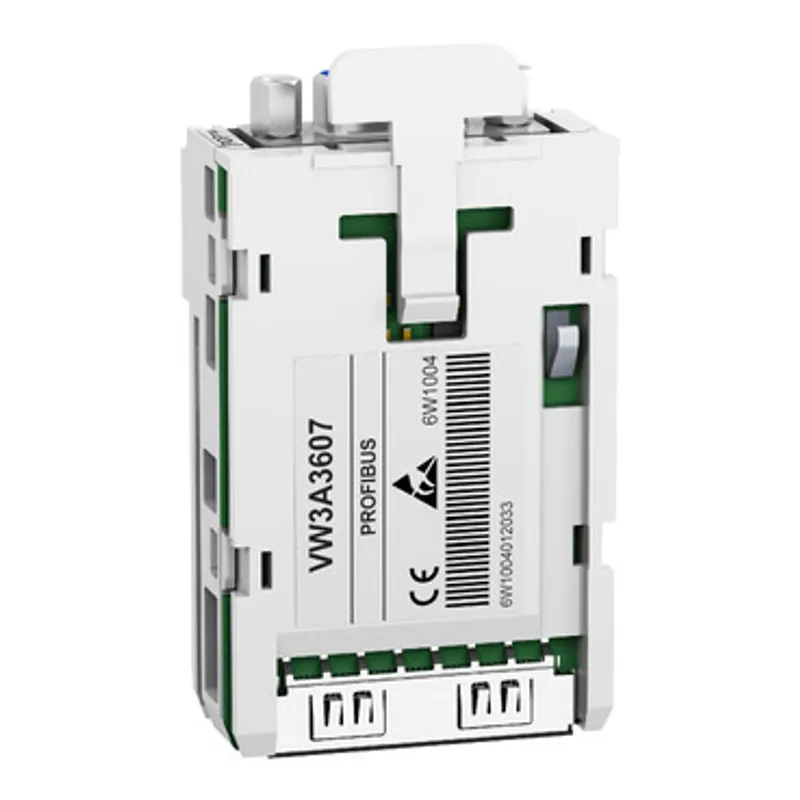

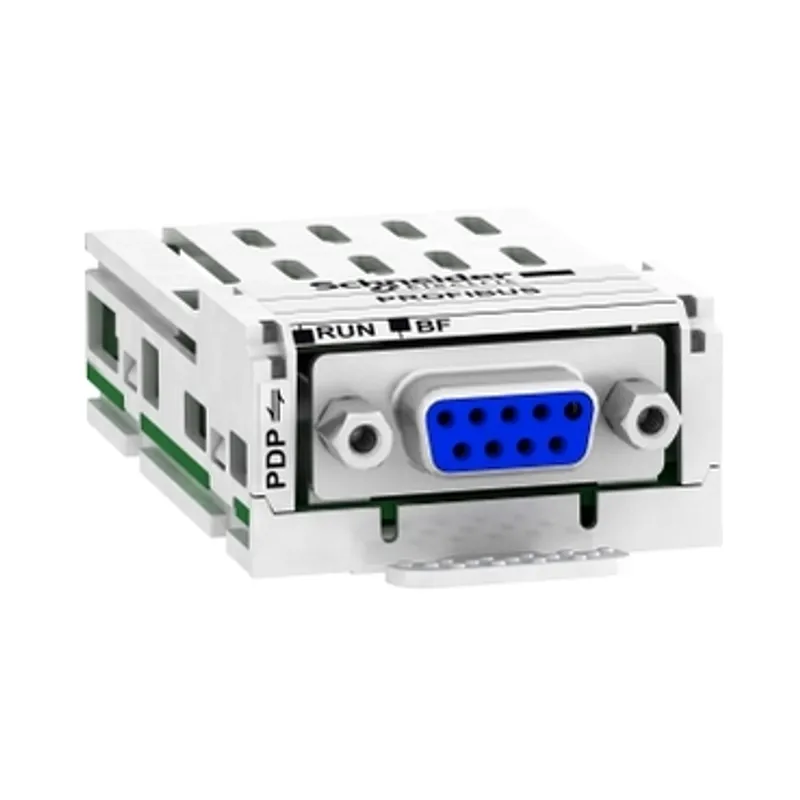

This PROFIBUS DP V1 communication module is an option for variable speed drives of Altivar range. It is equipped with 1 x 9-way female SUB-D connector. It is compatible with Altivar Machine and Altivar Process drives. It enables integration of your variable speed drive in your process control network. It weighs 140g.
Specifications
Specifications
| Range of product | Altivar |
| Product or component type | Communication module |
| Accessory / separate part category | Communication accessories |
| Product compatibility | Lexium 32M |
| Range compatibility | Altivar 32, Altivar Machine ATV340 except Sercos drives, Altivar Easy 610, Lexium 32, Altivar Process ATV900, Altivar Process ATV600, Altivar Machine ATV320, Altivar Process Modular |
| Communication port protocol | Profibus DP V1 |

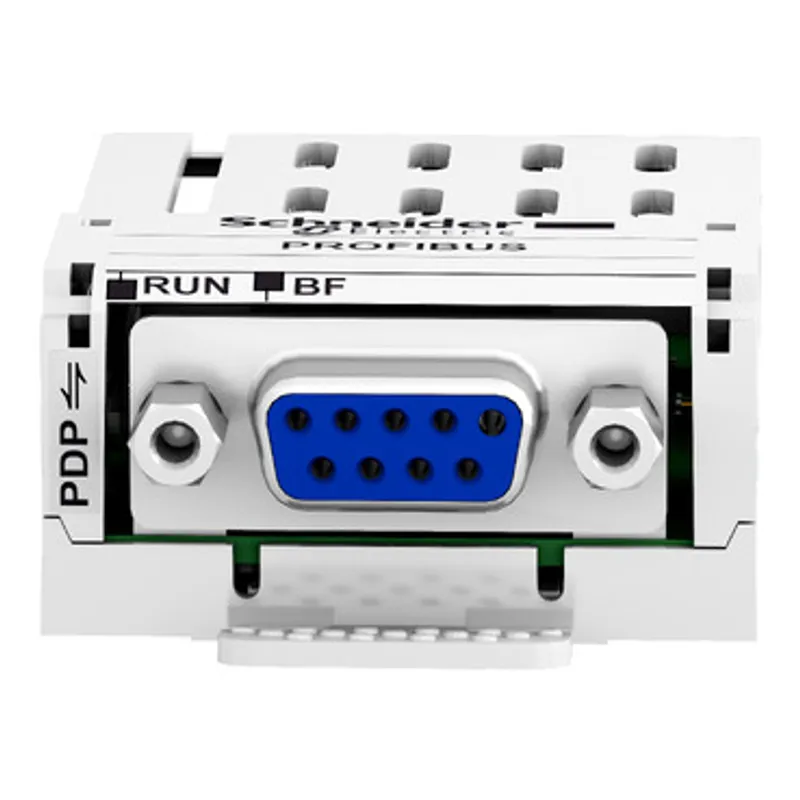

| Electrical connection | 1 female connector SUB-D 9 |
| Transmission rate | 9.6 kbps...12 Mbps |
| Addressing | 1...126 configurable by graphic terminal/SoMove software, Configuration settings |
| Communication service | 4 configurable telegrams, Mapping of the process data from the master, Parameters management compliant with PROFIdrive V4.1, Several DP V1 messaging modes, Drive profile native ATV32 conforming to IEC 61800-7-201 (CiA 402) |
| Display type | 1 LED for RUN, 1 LED for bus fault (BF) |
| diagnostic function | Diagnostic data with VSD status, Host drive handled from two masters (MS0 and MS1), Standard identification and maintenance requests |
| Bus profile | PROFIdrive, CiA 402 |
| Standards | IEC 61800-7-201 (CiA 402) |
Packaging
| Package 1 | 1 PCE, 9.000 cm × 6.100 cm × 4.700 cm (L × W × H), 65.000 g |
| Package 2 | 100 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 6.643 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3A3607: frequently asked questions
When can VW3A3607 be shipped?
VW3A3607 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A3607 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A3607 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A3607, subject to availability and destination.
