VW3A3401Encoder interface card, Altivar, differential outpt, with RS422 compatible, 5V DC

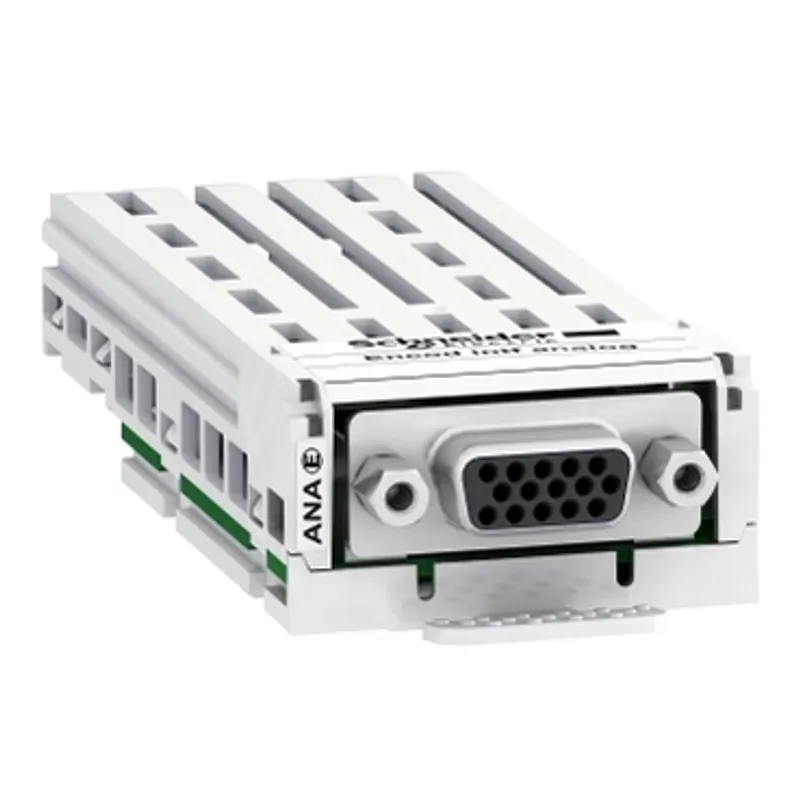

Schneider Electric VW3A3422
Analog encoder interface module, Altivar, 5 to 24V, 1 female SUB D15 connector
- MPN
- VW3A3422
- EAN
- 3606485441269
- Category
- Altivar Process ATV900
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A3422?
This analog encoder interface module can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespective of the motor load state. This module is inserted in a dedicated slot of the variable speed drive. It is protected against encoder supply short circuits and overloads. It is compatible with Altivar Process ATV900 and Modular, and Altivar Machine ATV340. It has 1 female high density SUB-D 15 connector.
Specifications
Specifications
| Range of product | Altivar |
| Product or component type | Analog encoder interface module |
| Range compatibility | Altivar Machine ATV340, Altivar Process ATV900, Altivar Process Modular |
| Encoder type | SinCos Hiperface, 1 Vpp |
| [Us] rated supply voltage | 5 V DC (voltage limits: 4.75…5.25 V), 12 V DC (voltage limits: 11.4…12.6 V), 24 V DC (voltage limits: 22.8…25.2 V) |
| Maximum supply current | 0.25 A at 5 V DC, 0.1 A at 12 V DC, 0.05 A at 24 V DC |
| Protection type | Overload protection, Short-circuit protection |
| Maximum cable distance between devices | 100 m |
| Maximum operating frequency | 100 kHz |
| Input signal | Data+, Data-, Sin, RefSin, Cos, RefCos, Temp+, Temp- |
| Output signal | Data+, Data- |
| Connector type | 1 female high density SUB-D 15 |
| Net weight | 0.15 kg |
Packaging
| Package 1 | 1 PCE, 19.000 cm × 13.000 cm × 6.600 cm (L × W × H), 153.000 g |
| Package 2 | 16 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 3.025 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3A3422: frequently asked questions
When can VW3A3422 be shipped?
VW3A3422 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A3422 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A3422 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A3422, subject to availability and destination.
