Schneider Electric

Schneider Electric TSXP57203M

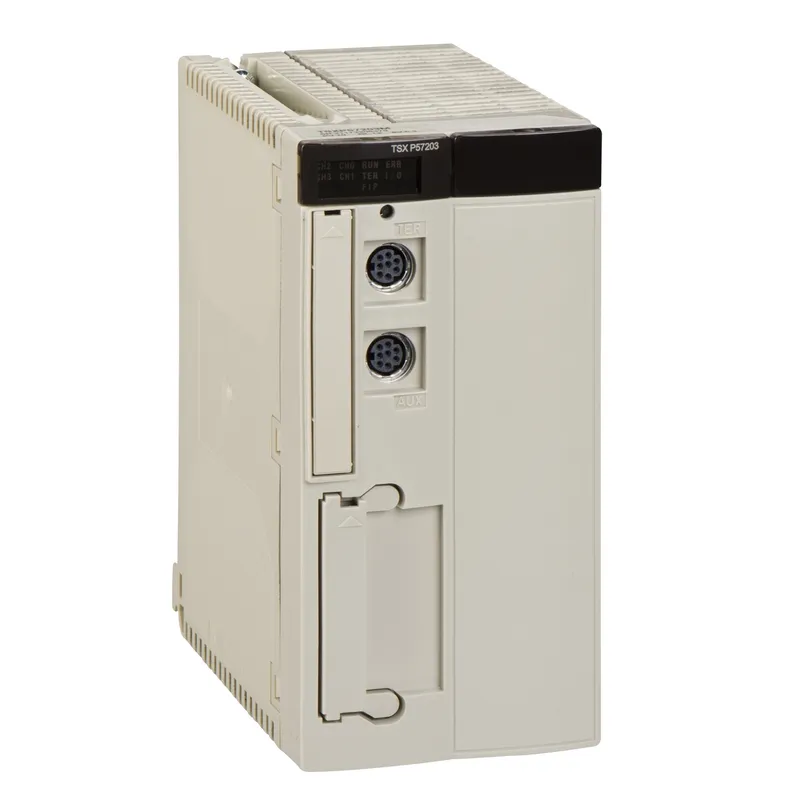

Double-format PL7 processor - 550 mA 5 V DC

MPN
TSXP57203M
EAN
3595862023849
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original TSXP57203M (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric TSXP57203M?

This processor module is part of the range Modicon Premium automation platform. This double-format processor module enables 16 racks maximum, 1024 I/O. It has on its front panel a display block comprising 5 LEDs, a RESET button causing a cold start of the PLC when pressed, two 8-way female mini-DIN connectors for connecting a programming or adjustment terminal and a peripheral device. It also has 2 PCMCIA slots one for a memory extension card and another for a communication card or 4 Mb SRAM memory extension card for storing additional data. Discontinued by Schneider Electric; the manufacturer's successor is BMEP582020. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productModicon Premium Automation platform
Product or component typeDouble-format PL7 processor
Software designationPL7 Junior/Pro

Complementary

Number of racks16 4/6/8 slots; 8 12 slots
Number of slots96; 64; 128
Discrete I/O processor capacity1024 I/O
Analogue I/O processor capacity80 I/O
Number of application specific channel24
Number of process control channel10 up to 30 simple loops
Integrated connection typeNon isolated serial link 2 female mini DIN connector (19.2 kbit/s)
Communication module processor capacity1 fieldbus module (none if CANopen used); 1 network module; 4 AS-Interface bus modules; 1 CANopen
Memory descriptionInternal RAM (with PCMCIA card) 48 Kwords data; Internal RAM (without PCMCIA card) 48 Kwords program and data; PCMCIA card 160 Kwords program; PCMCIA card 2688 Kwords additional data storage
Maximum size of object areas30.5 %MWi internal words located internal data; 32 %KWi constant words located internal data; 8132 %Mi located internal bits
Application structure1 fast task; 1 master task; 64 event tasks
Execution time per instruction0.19 µs Boolean without PCMCIA card; 0.21 µs Boolean with PCMCIA card; 0.25 µs word or fixed-point arithmetic without PCMCIA card; 0.42 µs word or fixed-point arithmetic with PCMCIA card; 2.6 µs floating points with PCMCIA card; 2.6 µs floating points without PCMCIA card
Number of instructions per ms2.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card; 3.57 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card; 3.7 Kinst/ms 100 % Boolean with PCMCIA card; 4.76 Kinst/ms 100 % Boolean without PCMCIA card
System overhead0.35 ms for fast task; 1 ms for master task
MarkingCE
Local signalling1 LED (green) for processor running (RUN); 1 LED (red) for I/O module or configuration fault (I/O); 1 LED (red) for processor or system fault (ERR); 1 LED (yellow) for activity on the terminal port (TER)
Current consumption750 mA at 5 V DC
Module formatDouble
Net weight0.52 kg

Environment

StandardsCSA C22.2 No 142; UL 508; CSA C22.2 No 213 Class I Division 2 Group A; IEC 61131-2; 89/336/EEC; 73/23/EEC; CSA C22.2 No 213 Class I Division 2 Group C; 92/31/EEC; CSA C22.2 No 213 Class I Division 2 Group B; 93/68/EEC; CSA C22.2 No 213 Class I Division 2 Group D
Product certificationsLR; DNV; RMRS; GL; RINA; BV; ABS
Ambient air temperature for operation0…60 °C
Ambient air temperature for storage-25…70 °C
Relative humidity10…95 % without condensation for operation; 5…95 % without condensation for storage
Operating altitude0...2000 m
Protective treatmentTC
IP degree of protectionIP20
Pollution degree2

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

TSXP57203M: frequently asked questions

Can I still buy the TSXP57203M now that it is discontinued?

Yes. Schneider Electric has discontinued the TSXP57203M, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the BMEP582020 as its successor — we can quote both.

When can TSXP57203M be shipped?

TSXP57203M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TSXP57203M in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TSXP57203M and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXP57203M, subject to availability and destination.
