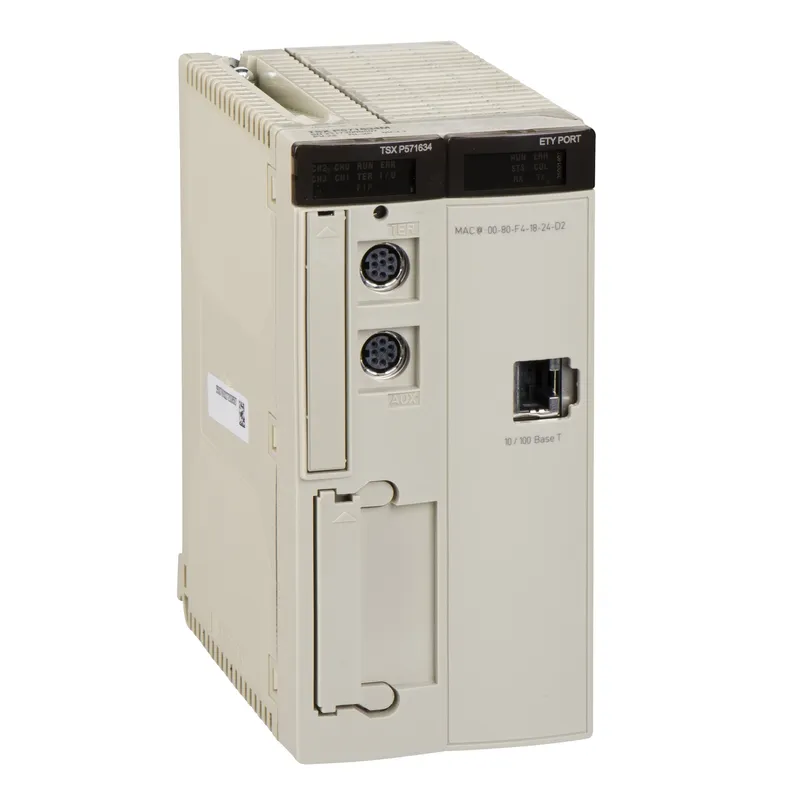

Schneider Electric TSXP571634M – Unity processor - 2 racks (12 slots) / 4 racks (4/6/8 slots) - 1650 mA, 5 V DC

Name: Schneider Electric TSXP571634M – Unity processor - 2 racks (12 slots) / 4 racks (4/6/8 slots) - 1650 mA, 5 V DC
Brand: Schneider Electric
SKU: TSXP571634M

MPN: TSXP571634M · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original TSXP571634M (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon Premium
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3595863812558
Recommended replacement	BMEP581020
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the TSXP571634M now that it is discontinued?

Yes. Schneider Electric has discontinued the TSXP571634M, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the BMEP581020 as its successor — we can quote both.

When can TSXP571634M be shipped?

TSXP571634M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TSXP571634M in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TSXP571634M and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXP571634M, subject to availability and destination.

Schneider Electric TSXP571634M — Unity processor - 2 racks (12 slots) / 4 racks (4/6/8 slots) - 1650 mA, 5 V DC (Modicon Premium). Discontinued by Schneider Electric; the manufacturer's successor is BMEP581020. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon Premium Automation platform
Product or component type	Unity processor
Software designation	Unity Pro

Complementary

Number of racks	2 12 slots; 4 4/6/8 slots
Number of slots	24; 16; 32
Discrete I/O processor capacity	512 I/O
Analogue I/O processor capacity	24 I/O
Number of application specific channel	8
Integrated connection type	Non isolated serial link 2 female mini DIN connector (RS485) (19.2 kbit/s); Ethernet TCP/IP RJ45 connector
Port Ethernet	10BASE-T/100BASE-TX
Communication module processor capacity	2; 1
Memory description	Internal RAM (with PCMCIA card) 224 kB program; Internal RAM (with PCMCIA card) 96 kB data; Internal RAM (without PCMCIA card) 96 kB program and data; PCMCIA card 256 kB additional data storage
Maximum size of object areas	32 kB (elementary and derived data) unlocated internal data; 4096 %Mi located internal bits; 64 %KWi constant words located internal data; 64 %MWi internal words located internal data; 64 kB (DFB and EFB function blocks) unlocated internal data
Application structure	1 master task; 1 fast task; 32 event tasks
Execution time per instruction	0.19 µs Boolean without PCMCIA card; 0.25 µs Boolean with PCMCIA card; 0.25 µs word or fixed-point arithmetic without PCMCIA card; 0.5 µs word or fixed-point arithmetic with PCMCIA card; 1.75...2.6 µs floating points with PCMCIA card; 1.75...2.6 µs floating points without PCMCIA card
Number of instructions per ms	2.1 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card; 3.1 Kinst/ms 100 % Boolean with PCMCIA card; 3.71 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card; 4.76 Kinst/ms 100 % Boolean without PCMCIA card
System overhead	0.3 ms for fast task; 1 ms for master task
Marking	CE
Local signalling	1 LED (green) for Ethernet TCP/IP port ready (RUN); 1 LED (green) for processor running (RUN); 1 LED (red) for collision detection (COL); 1 LED (red) for Ethernet TCP/IP port fault (ERR); 1 LED (red) for I/O module or configuration fault (I/O); 1 LED (red) for processor or system fault (ERR); 1 LED (yellow) for activity on TER or AUX terminal port (TER); 1 LED (yellow) for Ethernet link diagnostics (STS); 1 LED (yellow) for reception activity (RX); 1 LED (yellow) for transmission activity (TX)
Current consumption	1650 mA at 5 V DC
Module format	Double
Net weight	0.74 kg

Environment

Standards	89/336/EEC; CSA C22.2 No 213 Class I Division 2 Group A; UL 508; CSA C22.2 No 213 Class I Division 2 Group D; 73/23/EEC; CSA C22.2 No 213 Class I Division 2 Group C; IEC 61131-2; 93/68/EEC; 92/31/EEC; CSA C22.2 No 213 Class I Division 2 Group B; CSA C22.2 No 142
Product certifications	GL; RMRS; LR; ABS; DNV; RINA; BV
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-25…70 °C
Relative humidity	10…95 % without condensation for operation; 5…95 % without condensation for storage
Operating altitude	0...2000 m
Protective treatment	TC
IP degree of protection	IP20
Pollution degree	2
