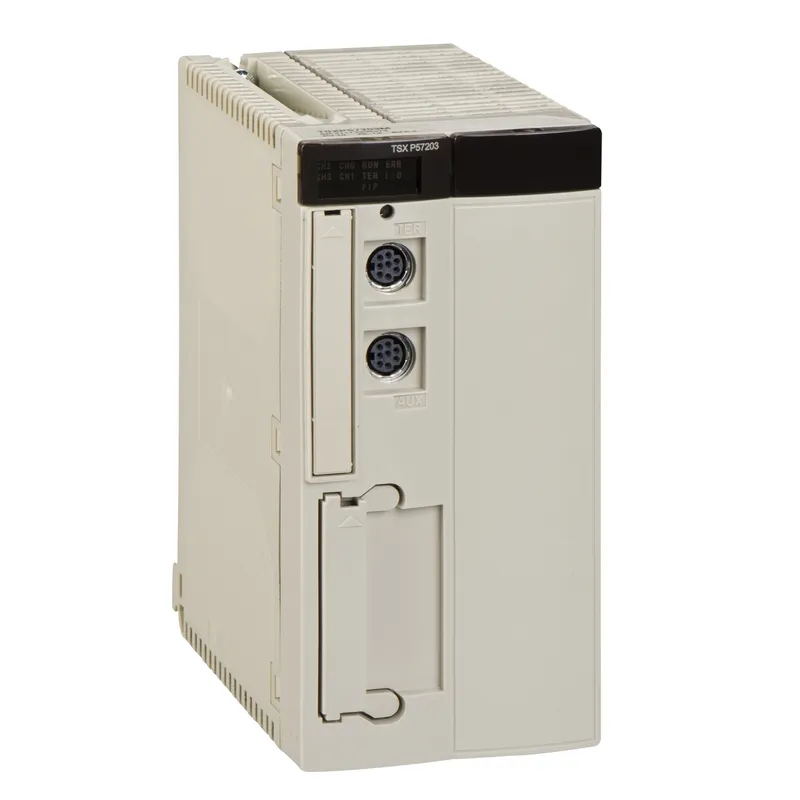

Schneider Electric TSXP57203MC – double-format PL7 processor - 550 mA 5 V DC
Discontinued by Schneider Electric — we can still source the original TSXP57203MC (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon Premium |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| UPC / EAN | 3595863952407 |
| Recommended replacement | BMEP582020H |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the TSXP57203MC now that it is discontinued?
Yes. Schneider Electric has discontinued the TSXP57203MC, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the BMEP582020H as its successor — we can quote both.
When can TSXP57203MC be shipped?
TSXP57203MC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TSXP57203MC in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TSXP57203MC and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXP57203MC, subject to availability and destination.
Schneider Electric TSXP57203MC — double-format PL7 processor - 550 mA 5 V DC (Modicon Premium). Discontinued by Schneider Electric; the manufacturer's successor is BMEP582020H. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon Premium Automation platform |
| Product or component type | Double-format PL7 processor |
| Software designation | PL7 Junior/Pro |
Complementary
| Number of racks | 16 4/6/8 slots; 8 12 slots |
| Number of slots | 128; 96; 64 |
| Discrete I/O processor capacity | 1024 I/O |
| Analogue I/O processor capacity | 80 I/O |
| Number of application specific channel | 24 |
| Number of process control channel | 10 up to 30 simple loops |
| Integrated connection type | Non isolated serial link 2 female mini DIN connector (19.2 kbit/s) |
| Communication module processor capacity | 1 fieldbus module (none if CANopen used); 1 network module; 4 AS-Interface bus modules; 1 CANopen |
| Memory description | Internal RAM (with PCMCIA card) 48 Kwords data; Internal RAM (without PCMCIA card) 48 Kwords program and data; PCMCIA card 160 Kwords program; PCMCIA card 2688 Kwords additional data storage |
| Maximum size of object areas | 30.5 %MWi internal words located internal data; 32 %KWi constant words located internal data; 8132 %Mi located internal bits |
| Application structure | 1 master task; 1 fast task; 64 event tasks |
| Execution time per instruction | 0.19 µs Boolean without PCMCIA card; 0.21 µs Boolean with PCMCIA card; 0.25 µs word or fixed-point arithmetic without PCMCIA card; 0.42 µs word or fixed-point arithmetic with PCMCIA card; 2.6 µs floating points with PCMCIA card; 2.6 µs floating points without PCMCIA card |
| Number of instructions per ms | 2.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card; 3.57 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card; 3.7 Kinst/ms 100 % Boolean with PCMCIA card; 4.76 Kinst/ms 100 % Boolean without PCMCIA card |
| System overhead | 0.35 ms for fast task; 1 ms for master task |
| Marking | CE |
| Local signalling | 1 LED (green) for processor running (RUN); 1 LED (red) for I/O module or configuration fault (I/O); 1 LED (red) for processor or system fault (ERR); 1 LED (yellow) for activity on the terminal port (TER) |
| Current consumption | 750 mA at 5 V DC |
| Module format | Double |
| Net weight | 0.52 kg |
Environment
| Standards | 92/31/EEC; IEC 61131-2; 93/68/EEC; CSA C22.2 No 142; UL 508; CSA C22.2 No 213 Class I Division 2 Group A; 73/23/EEC; CSA C22.2 No 213 Class I Division 2 Group C; CSA C22.2 No 213 Class I Division 2 Group D; 89/336/EEC; CSA C22.2 No 213 Class I Division 2 Group B |
| Product certifications | LR; ABS; RMRS; DNV; GL; RINA; BV |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation; 5…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Protective treatment | TC; Conformal coating Humiseal 1A33 |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet TSXP57203MC |
More Schneider Electric parts
Available on requestUnity processor - 2 racks (12 slots)/4 racks (4/6/8 slots) - 930 mA 5 V DC
Available on requestUnity processor - 2 racks (12 slots) / 4 racks (4/6/8 slots) - 1650 mA, 5 V DC
Available on requestUnity processor - 2 racks (12 slots)/4 racks (4/6/8 slots) - 1650 mA 5 V DC
Available on requestdouble-format PL7 processor - 550 mA 5 V DC

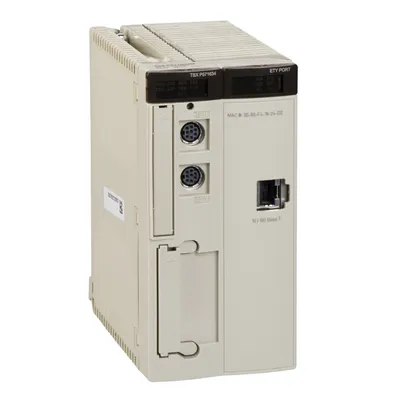

Available on requestUnity processor - 8 racks (12 slots)/16 racks (4/6/8 slots) - 850 mA 5 V DC
