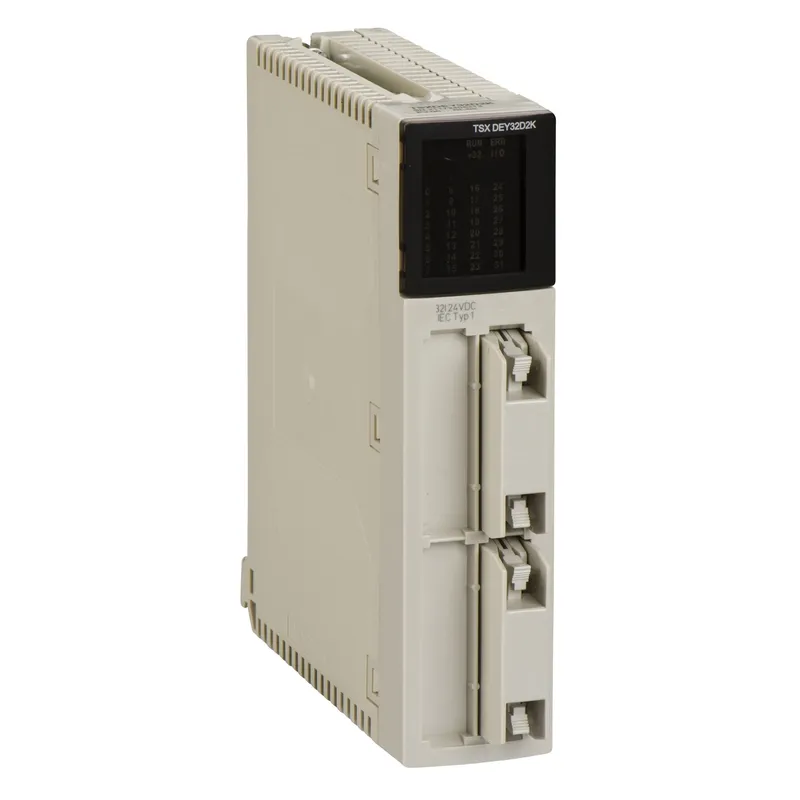

Schneider Electric TSXDEY32D2K – discrete input module Modicon Premium - 32 I 24 V DC

Name: Schneider Electric TSXDEY32D2K – discrete input module Modicon Premium - 32 I 24 V DC
Brand: Schneider Electric
SKU: TSXDEY32D2K

MPN: TSXDEY32D2K · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original TSXDEY32D2K (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon Premium
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
Country of origin	FR
UPC / EAN	3389110725520
Recommended replacement	BMXDDI3202K
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the TSXDEY32D2K now that it is discontinued?

Yes. Schneider Electric has discontinued the TSXDEY32D2K, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the BMXDDI3202K as its successor — we can quote both.

When can TSXDEY32D2K be shipped?

TSXDEY32D2K is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TSXDEY32D2K in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TSXDEY32D2K and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXDEY32D2K, subject to availability and destination.

Schneider Electric TSXDEY32D2K — discrete input module Modicon Premium - 32 I 24 V DC. Discontinued by Schneider Electric; the manufacturer's successor is BMXDDI3202K. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon Premium Automation platform
Product or component type	Discrete input module
Discrete input number	32 current sink isolated conforming to EN/IEC 61131-2 type 1
Discrete input voltage	24 V DC positive
Sensor power supply	19…30 V
Discrete input current	3.5 mA

Complementary

Voltage state 1 guaranteed	>= 11 V
Current state 1 guaranteed	>= 3 mA
Voltage state 0 guaranteed	<= 5 V
Current state 0 guaranteed	<= 1.5 mA
Input impedance	6300 Ohm at state 1
Response time	<= 7 ms; 4 ms
isalotion resistance	< 10 MOhm 500 V DC
Power dissipation	(1 W + 0.1 W x No of channels used)
Electrical connection	HE-10 connector
Marking	CE
Current consumption	135 mA at 5 V DC; 160 mA at 24 V DC
Module format	Standard
Net weight	0.3 kg

Environment

Dielectric strength	1500 V AC at 50/60 Hz
Standards	CSA C22.2 No 213 Class I Division 2 Group B; IEC 60664; CSA C22.2 No 142; CSA C22.2 No 213 Class I Division 2 Group A; 92/31/EEC; EN/IEC 61131-2; UL 508; CSA C22.2 No 213 Class I Division 2 Group D; 93/68/EEC; CSA C22.2 No 213 Class I Division 2 Group C; 73/23/EEC; 89/336/EEC
Product certifications	LR; GL; BV; RMRS; RINA; ABS; DNV
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-25…70 °C
Relative humidity	10…95 % without condensation for operation; 5…95 % without condensation for storage
Operating altitude	0...2000 m
Protective treatment	TC
IP degree of protection	IP20
Pollution degree	2
