Schneider Electric TM2ALM3LT

Analog input/output module, Modicon M238 logic controller, 2 inputs thermocouple/temp low level, 1 output

MPN
TM2ALM3LT
EAN
3595863996005
Category
Twido
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original TM2ALM3LT (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric TM2ALM3LT?

Schneider Electric TM2ALM3LT — Analog input/output module, Modicon M238 logic controller, 2 inputs thermocouple/temp low level, 1 output (Twido). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productModicon M238 logic controller
Product or component typeInput/output analog module
Analogue input number2
Input levelLow level
Analogue input type3-wire Pt probe temperature probe - 100...500 °C differential; thermocouple 0...1200 °C with thermocouple J differential; thermocouple 0...1300 °C with thermocouple K differential; thermocouple 0...400 °C with thermocouple T differential
Analogue output number1
Analogue output typeCurrent: 4...20 mA; Voltage: 0...10 V
Cross talk<= 2 LSB

Complementary

Range compatibilityAdvantys OTB; Twido
Analogue input resolution12 bits
Analogue output resolution12 bits
LSB value2.5 mV voltage voltage; 4.8 µA current current; 0.1 °C thermocouple; 0.15 °C temperature probe
Input impedance>= 1 MOhm
load typeResistive
Load impedance ohmic>= 2000 Ohm voltage; <= 300 Ohm current
Stabilisation time20 ms
Conversion time20 ms + 1 controller cycle time
Sampling duration20 ms, analogue input type: temperature probe; 60 ms, analogue input type: thermocouple
Acquisition period60 ms per channel + 1 controller cycle time thermocouple; 80 ms per channel + 1 controller cycle time
Measurement error+/- 0.2 % of full scale - 100...500 °C 3-wire Pt probe at 25 °C; +/- 0.2 % of full scale 0...10 V 0...10 V at 25 °C; +/- 0.2 % of full scale 4...20 mA 4...20 mA at 25 °C; 0.2 % of full scale +/- 4 °C 0...1200 °C thermocouple J at 25 °C; 0.2 % of full scale +/- 4 °C 0...1300 °C thermocouple K at 25 °C; 0.2 % of full scale +/- 4 °C 0...400 °C thermocouple T at 25 °C
Temperature coefficient+/-0.006 %FS/°C, analogue input type: - 100...500 °C 3-wire Pt probe; +/-0.006 %FS/°C, analogue input type: 0...1200 °C thermocouple J; +/-0.006 %FS/°C, analogue input type: 0...1300 °C thermocouple K; +/-0.006 %FS/°C, analogue input type: 0...400 °C thermocouple T; +/-0.015 %FS/°C, analogue input type: 0...10 V, analogue output type: 0...10 V; +/-0.015 %FS/°C, analogue input type: 4...20 mA, analogue output type: 4...20 mA
Repeat accuracy+/-0.5 %FS for input/output
Non-linearity+/- 0.2 %FS, analogue input type: current, analogue output type: current; +/- 0.2 %FS, analogue input type: temperature probe; +/- 0.2 %FS, analogue input type: thermocouple; +/- 0.2 %FS, analogue input type: voltage, analogue output type: voltage
Output error+/- 1 %FS
Output ripple<= 1 LSB
Total error+/-1 %FS, analogue input type: current, analogue output type: current; +/-1 %FS, analogue input type: temperature probe; +/-1 %FS, analogue input type: thermocouple; +/-1 %FS, analogue input type: voltage, analogue output type: voltage
Type of cableShielded cable
Insulation between channel and internal logicPhotocoupler
SupplyExternal supply
[Us] rated supply voltage24 V DC
Supply voltage limits19.2…30 V
Electrical connection1 removable screw terminal block
Current consumption50 mA at 24 V DC external; 50 mA at 5 V DC internal
Net weight0.085 kg

Environment

Dielectric strength500 V between I/O channel; 500 V between the I/O and the external supply circuit; 500 V between the I/O and internal logic
Width23.5 mm
Depth70 mm
Height90 mm

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

TM2ALM3LT: frequently asked questions

Can I still buy the TM2ALM3LT now that it is discontinued?

Yes. Schneider Electric has discontinued the TM2ALM3LT, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can TM2ALM3LT be shipped?

TM2ALM3LT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TM2ALM3LT in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TM2ALM3LT and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TM2ALM3LT, subject to availability and destination.

More Schneider Electric parts

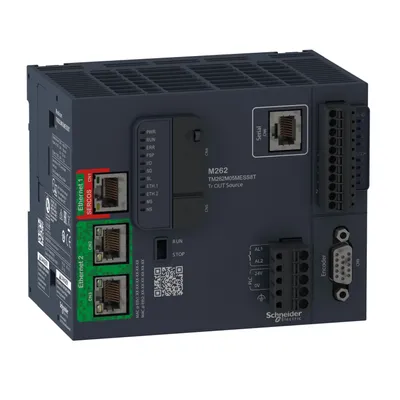

Schneider Electric TM262M05MESS8T – Motion controller, Modicon M262, 5ns per instruction, 4 axes, optimized Ethernet, Sercos, machine to plant
