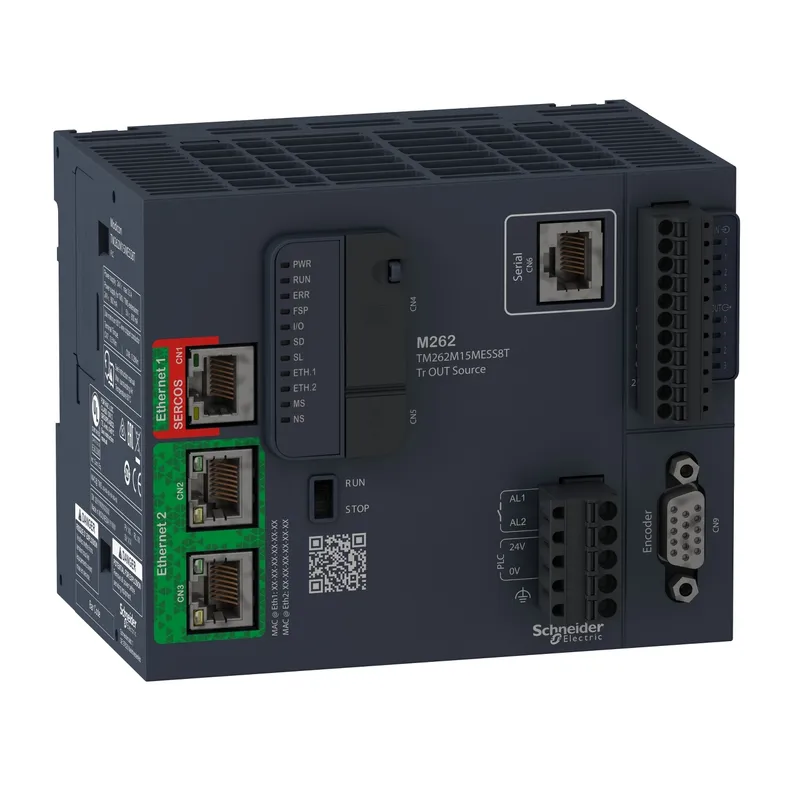

Schneider Electric TM262M15MESS8T – Motion controller, Modicon M262, 5ns/instruction, 4 axes, Ethernet, Sercos

Name: Schneider Electric TM262M15MESS8T – Motion controller, Modicon M262, 5ns/instruction, 4 axes, Ethernet, Sercos
Brand: Schneider Electric
SKU: TM262M15MESS8T

MPN: TM262M15MESS8T · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon M262
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Country of origin	ID
UPC / EAN	3606489604202
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can TM262M15MESS8T be shipped?

TM262M15MESS8T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TM262M15MESS8T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TM262M15MESS8T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TM262M15MESS8T, subject to availability and destination.

Modicon M262 logic/motion controllers are designed for performance-demanding machines, IIoT-ready and combine logic, motion and safety control applications. TM262M15MESS8T is specialized in the motion control of 4 fast digital inputs and 4 fast digital ouputs, 1 encoder input and up to 4 synchronized axes, embedding a safety control application according to SIL3. This motion controller embeds 3 Ethernet-based networks (EtherNet/IP, Modbus/TCP, Sercos), one serial port (Modbus, ASCII, Machine Expert protocols). Modicon M262 are logic/motion controllers with embedded cloud connectivity, figuring cybersecurity capabilities, supporting monitoring, analytics and predictive maintenance. It is powered with a non-isolated 24V DC power supply, has a built-in overload protection, embeds a dual-core processor, reaches a 5ns/instruction performance. This motion controller has one communication bus (Ethernet, CANopen), one IO bus, one IO port, one encoder connector. It measures 125mm width, 90mm depth, and 100 mm height. It weighs 0.670kg. This controller is designed for machinery requiring integrated IIoT connectivity or encrypted communication. Certified with CE, cULus HazLoc, RCM, EAC, Achilles L2, EU RO Mutual, Conform to UL 61010-1/-2-201, CSAC22.2 No. 61010-1/-2-201, ANSI/ISA 12-12-01, EN 61131-2. This controller is compatible with TMS CANopen/Ethernet smart communication module, Modicon TM3 IO expansion modules, configured by EcoStruxure Machine Expert. Modicon M262 logic controller installs on 35mm DIN rail with Clip-on locks. Modicon M262 logic/motion controllers are the IIoT-ready controllers for performance machines. Modicon M262 logic/motion controllers embed Industrial Internet of Things (IIoT) protocols and encryption to provide direct cloud connectivity & digital services. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Logic/motion controller - Modicon M262
Product or component type	Motion controller
[Us] rated supply voltage	24 V DC - 15...20 %
Discrete I/O number	8
Upstream connectivity	IIoT-ready machine to cloud; Connected machine to plant

Complementary

Supply voltage limits	20.4…28.8 V DC
PLC Power Consumption	82 W
Inrush current	40 A
Overvoltage protection	With
Discrete input number	4, discrete input fast input conforming to IEC 61131-2 Type 1
Discrete input voltage	24 V
Discrete input voltage type	DC
Discrete input logic	Sink
Voltage state 1 guaranteed	>= 15 V for DC
Voltage state 0 guaranteed	<= 5 V for DC
Discrete input current	7.5 mA for fast input
Input impedance	2.81 kOhm for input
Response time	<= 1 µs turn-on, I0...I3 terminal(s) for fast input; <= 1 µs turn-off, I0...I3 terminal(s) for fast input; <= 1 µs turn-on, Q0...Q3 terminal(s) for fast output; <= 1 µs turn-off, Q0...Q3 terminal(s) for fast output
Configurable filtering time	0.001 ms for fast input; 0.002 ms for fast input; 0.005 ms for fast input; 0.01 ms for fast input; 0.05 ms for fast input; 0.1 ms for fast input; 0.5 ms for fast input; 1 ms for fast input; 4 ms for fast input; 12 ms for fast input
Discrete output number	4 transistor fast output
Discrete output voltage	24 V DC
Discrete output current	0.5 A for fast output (Q0...Q3)
Discrete output type	Transistor
Discrete output logic	Source
Output voltage limits	30 V DC
Maximum current per output common	0.5 A with Q0...Q3 for fast output
Maximum output frequency	300 kHz
Accuracy	+/- 0.1 % at 0.02…0.1 kHz for fast output; +/- 1 % at 0.1…1 kHz for fast output
Maximum leakage current	10 µA for output
Maximum tungsten load	<1.5 W
Protection type	Short-circuit and overload protection with automatic reset; Reverse polarity protection; Short-circuit protection
Reset time	200 ms automatic reset fast output
Maximum number of I/O expansion module	7TM3 IO module (local I/O-Architecture); 7TM3 IO module (remote I/O-Architecture); 64TM3, TM5 or TM7 IO island (distributed I/O-Architecture)
Execution time for 1 KInstruction	0.005 ms
Memory capacity	32 MB for program RAM; 32 MB for OS/website RAM; 192 MB for system memory RAM
Data backed up	1 GB built-in flash memory for backup of user programs
Data storage equipment	<= 32 GB SDHC card (optional)
Backup time	1000 h at 25 °C
Application structure	8 event tasks; 4 cyclic master tasks; 3 cyclic master tasks + 1 freewheeling task; 8 external event tasks
Realtime clock	With
Clock drift	<= 10 s/month at 25 °C
Cycle time	0.5 ms
Positioning functions	Libraries axes coordinated function; Libraries axes synchronous function; Sercos 3 motion bus function
Integrated connection type	Ethernet/Sercos 1 with RJ45 connector and 10/100BASE-T interface; Ethernet 2 with 2 RJ45 connector and 100/1000BASE-T interface; Serial link with RJ45 connector and RS232/RS485 interface; 1 encoder with female SUB-D 15 connector and RS422/SSI interface; Smart Communication Bus; TM3 IO bus; USB type mini B
Transmission rate	115 kbit/s for bus length of 15 m for RS485; 115 kbit/s for bus length of 3 m for RS232; 480 Mbit/s for bus length of 3 m for USB; 10/100 Mbit/s for Ethernet1; 10/100/1000 Mbit/s for Ethernet2
Communication port protocol	EtherNet/IP adapter; EtherNet/IP scanner; Modbus TCP client/server; Modbus TCP IO scanner; Modbus TCP NVL; Ethernet RSTP; Modbus SL client/server; Modbus SL IO scanner; Modbus SL modem management; Machine Expert; ASCII manager; ASCII modem management; Sercos III master
Maximum number of connected devices	EtherNet/IP: 64; Modbus TCP: 64; Modbus TCP/EtherNet/IP: 96
Communication service	MQTTs; OPC UA server (Encrypt); HTTPs Methods (API); Web server; Web visu; TLS 1.2; TLS 1.3; SNTP; NTP client/server; FTP client/server; FTPs server; SQL client (remote access); DHCP client; DHCP server; DNS client; POP3s client; SMTP client; SNMP client/server
Local signalling	1 LED (green/red) for PWR; 1 LED (green/red) for RUN; 1 LED (green/red) for ERROR (fault); 1 LED (green/red) for stop forced; 1 LED (green/red) for I/O error (I/O); 1 LED (green/orange) for SD card activity; 1 LED (green/orange) for SL activity; 1 LED (green/red) for ETH1 state; 1 LED (green/red) for ETH2 state; 1 LED (green/red) for EIP MS; 1 LED (green/red) for EIP NS; 1 LED (green/red) for Sercos
Electrical connection	removable spring terminal blockfor inputs and outputs; removable spring terminal blockfor connecting the 24 V DC power supply
Product compatibility	External encoder 5/24 V DC no encoder power supply
Maximum cable distance between devices	Shielded cable: <3 m for fast input; Shielded cable: <3 m for fast output; Unshielded cable: <50 m for input; Unshielded cable: <50 m for output; Shielded cable: <30 m for RS485 link; Shielded cable: <15 m for RS232
Insulation	Between fast input and internal logic at 550 V AC; Non-insulated between inputs; Between fast output and internal logic at 550 V AC; Non-insulated between outputs; Between input and output at 550 V AC; Between supply and internal logic at 550 V AC; Non-insulated between supply and ground
Encoder type	Incremental encoder
Surge withstand	1 kV power lines (DC) common mode conforming to IEC 61000-4-5; 1 kV shielded cable common mode conforming to IEC 61000-4-5; 0.5 kV relay output differential mode conforming to IEC 61000-4-5; 1 kV input common mode conforming to IEC 61000-4-5; 1 kV transistor output common mode conforming to IEC 61000-4-5
Mounting support	Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; plate or panel with fixing kit
Height	100 mm
Depth	90 mm
Width	125 mm
Net weight	0.67 kg

Environment

Standards	UL 61010-1; UL 61010-2-201; CSA C22.2 No 61010-1; CSA C22.2 No 61010-2-201; CSA C22.2 No 213; ANSI/ISA 12-12-01; IEC 61131-2
Product certifications	CE; cULus; cULus HazLoc Class I Division 2 CSA 22-2 No 213; RCM; EAC; Achilles; KC
Resistance to electrostatic discharge	4 kV on contact conforming to IEC 61000-4-2; 8 kV on air conforming to IEC 61000-4-2
Resistance to electromagnetic fields	10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3; 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3; 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3
Resistance to fast transients	2 kV (power lines) conforming to IEC 61000-4-4; 1 kV (Ethernet line) conforming to IEC 61000-4-4; 1 kV (serial link) conforming to IEC 61000-4-4; 1 kV (input) conforming to IEC 61000-4-4; 1 kV (transistor output) conforming to IEC 61000-4-4
Resistance to conducted disturbances	10 V 0.15...80 MHz conforming to IEC 61000-4-4; 3 V 0.1...80 MHz; 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)
Electromagnetic emission	Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10…150 kHz conforming to IEC 55011; Conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5…30 MHz conforming to IEC 55011; Radiated emissions - test level: 40 dBµV/m at 30…230 kHz conforming to IEC 55011; Conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150…1500 kHz conforming to IEC 55011; Radiated emissions at 230…1000 MHz conforming to IEC 55011
Immunity to microbreaks	0.01 ms
Ambient air temperature for operation	-20…60 °C (horizontal installation); -20…50 °C (vertical installation); -20…45 °C (flat mounting)
Ambient air temperature for storage	-40…85 °C
Relative humidity	10…95 %, without condensation (in operation); 10…95 %, without condensation (in storage)
IP degree of protection	IP20
Pollution degree	2
Operating altitude	0...2000 m
Storage altitude	0…3000 m
Vibration resistance	3.5 mm at 2…8.4 Hz on symmetrical rail; 1 gn at 8.4…200 Hz on symmetrical rail; 3.5 mm at 2…8.4 Hz on panel mounting; 1 gn at 8.4…200 Hz on panel mounting
Shock resistance	15 gn for 11 ms
