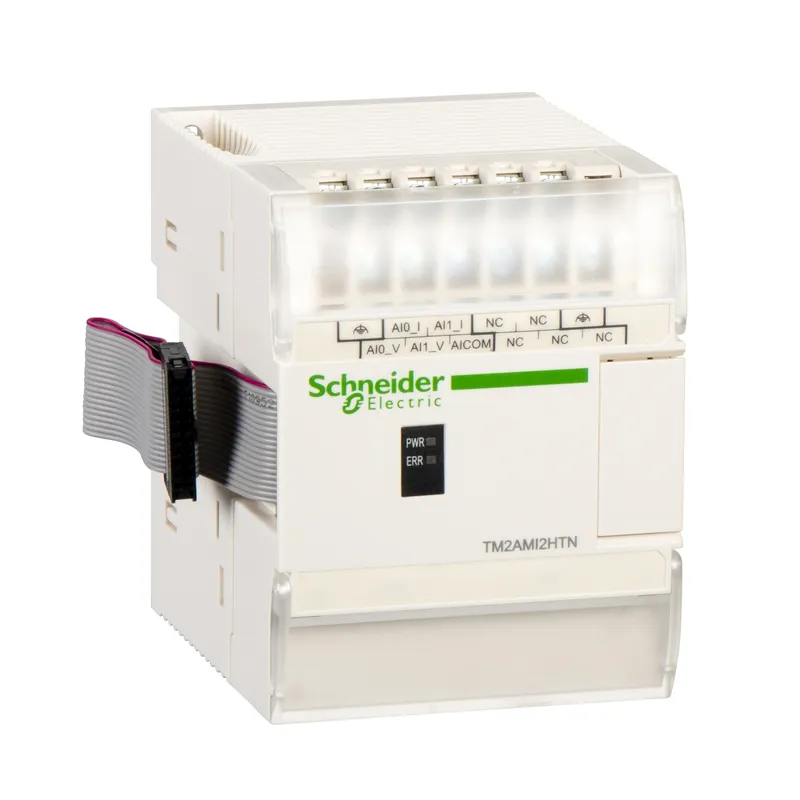

Schneider Electric TM2AMI2HTN

Analog input module, Modicon M238 logic controller, 2 inputs voltage/current high level, non differential

MPN
TM2AMI2HTN
EAN
3606480462337
Category
Twido
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original TM2AMI2HTN (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric TM2AMI2HTN?

Schneider Electric TM2AMI2HTN — Analog input module, Modicon M238 logic controller, 2 inputs voltage/current high level, non differential (Modicon Premium). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productModicon M238 logic controller
Product or component typeAnalog input module
Analogue input number2
Input levelHigh level
Analogue input typecurrent 4...20 mA non differential; voltage 0...10 V non differential
Cross talk<= 2 LSB

Complementary

Range compatibilityTwido; Advantys OTB
Analogue input resolution12 bits
LSB value2.5 mV voltage voltage; 4.8 µA current current
Permissible continuous overload13 V, analogue input type: voltage; 40 mA, analogue input type: current
Input impedance10 Ohm current; >= 1 MOhm voltage
Sampling duration10 ms
Acquisition period10 ms per channel + 1 controller cycle time
Measurement error+/- 0.2 % of full scale at 25 °C
Temperature coefficient+/-0.006 %FS/°C
Repeat accuracy+/-0.5 %FS
Non-linearity+/- 0.2 %FS
Total error+/-1 %FS
Type of cableShielded cable
Insulation between channel and internal logicPhotocoupler
SupplyExternal supply
[Us] rated supply voltage24 V DC
Supply voltage limits20.4…28.8 V
Electrical connection1 removable screw terminal block
Current consumption40 mA at 24 V DC external; 50 mA at 5 V DC internal
Net weight0.085 kg

Environment

Dielectric strength500 V between the I/O and internal logic; 500 V between the I/O and the external supply circuit
Width23.5 mm
Depth70 mm
Height90 mm

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

TM2AMI2HTN: frequently asked questions

Can I still buy the TM2AMI2HTN now that it is discontinued?

Yes. Schneider Electric has discontinued the TM2AMI2HTN, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can TM2AMI2HTN be shipped?

TM2AMI2HTN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TM2AMI2HTN in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TM2AMI2HTN and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TM2AMI2HTN, subject to availability and destination.
