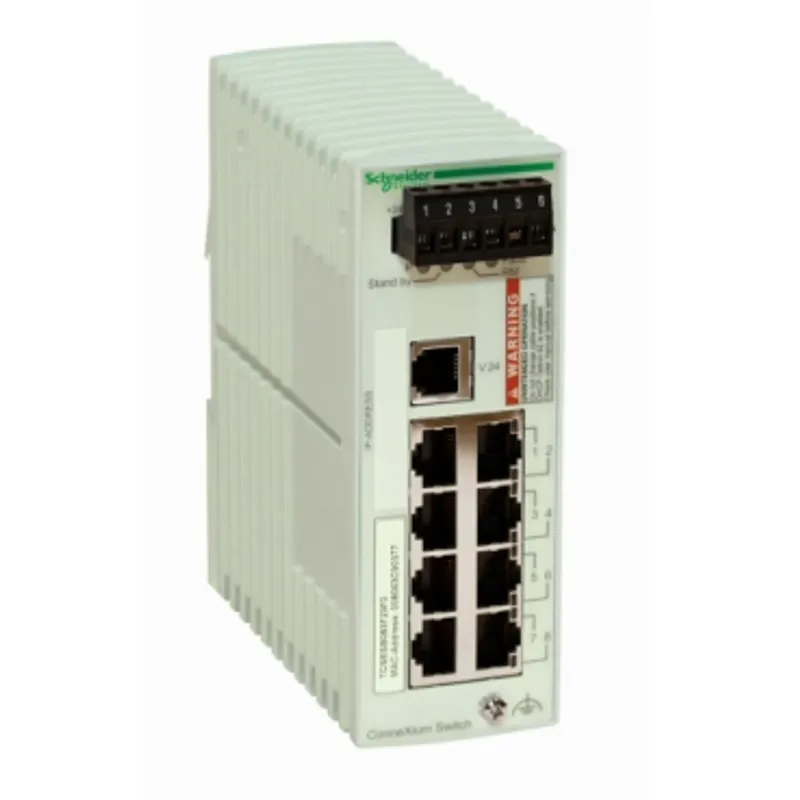

Schneider Electric TCSESB083F23F0
Network switch, Modicon Networking, basic managed, 8 ports for copper
- MPN
- TCSESB083F23F0
- EAN
- 3595864115429
- Category
- Modicon Networking
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric TCSESB083F23F0?
This product is part of the Modicon Networking range, an offer of Modicon Basic Managed Switch. This device comes with Ethernet TCP/IP protocol. It comes with 8 copper cable transmission ports. It provides simple and complex connectivity for multiple Ethernet device. This product works at a power consumption of 6W and a rated voltage from 12V to 24V DC. It is furnished with 6-way removable connector (power supply) for electrical connection. Its dimensions are 47mm (width) x 131mm (height) x 111mm (depth) and weighs 0.40 kg. It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels. It is CE, UL, RCM certified and conforms to UL 508 and EN/IEC 61131 standards. It is designed to be mounted on a 35mm symmetrical DIN rail. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.
Specifications
Specifications
| Range of product | Modicon Networking |
| Product or component type | Ethernet TCP/IP managed switch |
| Communication port protocol | Ethernet TCP/IP, HTTP, HTTPS, SNMP, RS232, LLDP, SNTP, MRP (Media Redundancy Protocol) |
| Port Ethernet | 10/100BASE-TX - 8 port(s) copper cable |
| Maximum number of switches in cascade | Unlimited |
| Cybersecurity | Role-based access control |
| Integrated connection type | Shielded RJ45 copper cable |
| Transmission support medium | Twisted shielded pairs cable CAT 5E for copper cable |
| Maximum cable distance between devices | 100 m copper cable |
| Ethernet service | Configuration via web server, Multicast filtering, Data stream control, IGMP Snooping, SNMP-Traps and SYSLOG |
| Communication service | TFTP, Quality of Service (QoS), Port monitoring, Port mirroring |
| Diagnostics run time | Signal contact, Self test |
| Maximum number of switches in a ring | 50 |
| Redundancy | HiPER ring, RSTP |
| [Us] rated supply voltage | 12...24 V |
| Supply voltage limits | 9.6…32 V DC SELV |
| Power consumption in W | 6 W |
| Electrical connection | Removable connector 6 ways power supply |
| Mounting support | 35 mm symmetrical DIN rail |
| Marking | CE, UL, RCM |
| Function available | System information |
| Local signalling | 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 LED (red) for fault, 1 dual colour LED (green/yellow) for ring manager, 1 LED (green) for stand-by, 1 dual colour LED (green/yellow) for channel diagnostic, Device status |
| Alarm output | 1 voltfree contact 1 A |
| Alarm function | Power supply fault, Data link status, Switch fault, Redundancy ring fault, Switch fault, Incorrect configuration, Temperature threshold |
| Ethernet cabling system | TF switches |
| Width | 47 mm |
| Height | 131 mm |
| Depth | 111 mm |
| Net weight | 0.4 kg |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 10…95 % non-condensing |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Standards | UL 508, EN/IEC 61131 |
| Product certifications | CE, UL, RCM, EAC, UKCA |
Packaging
| Package 1 | 1 PCE, 24.000 cm × 16.000 cm × 6.500 cm (L × W × H), 412.000 g |
| Package 2 | 20 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 8.930 kg |
