TCSECU3M3M5S4Ethernet ConneXium cable - shielded twisted pair - 2 x rugged RJ45 - UL - 5 m
Schneider Electric TCSEGPA23F14F
Profibus DP V1 remote master - for Premium/Quantum/M340/M580 PLC
- MPN
- TCSEGPA23F14F
- EAN
- 3595864068800
- Category
- Profibus DP Fieldbus
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric TCSEGPA23F14F?

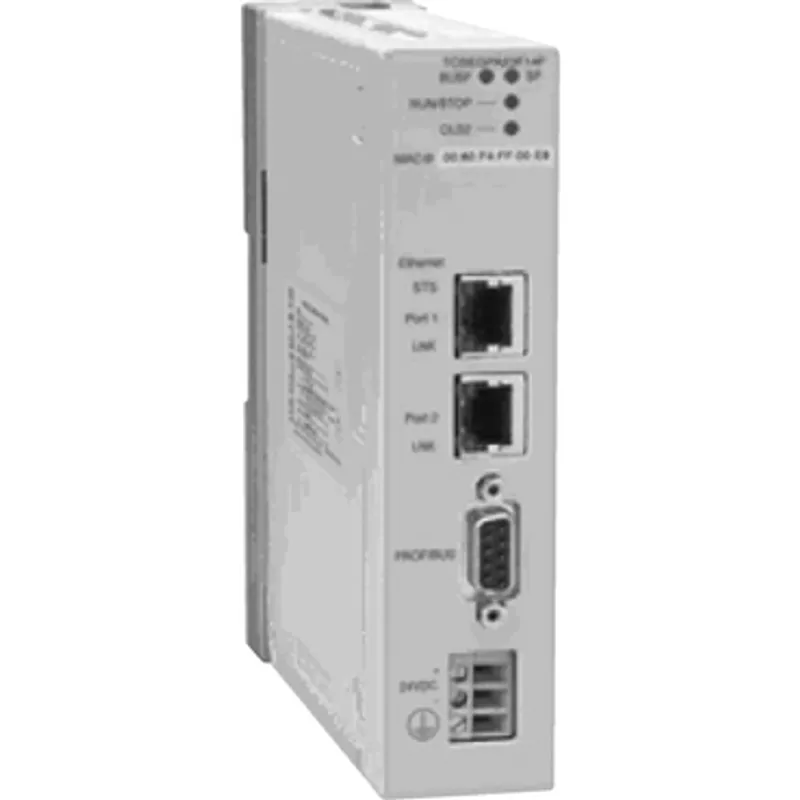

This product is part of the Profibus DP range, an offer of remote master modules. The Profibus Remote Master (PRM) module is connected to the Ethernet Modbus TCP/IP network via its integrated 2-port switch, as close as possible to the process and the instrumentation. It has Profibus 2 twisted shielded pairs cable and Modbus TCP category 5 shielded twisted pair (STP) transmission support medium. It is equipped with 2 Ethernet TCP/IP-RJ45 for Modbus TCP, Profibus DP SUB-D 9 for Profibus DP V1 connections. Communication services are check slave configuration (on power up) class 1 master, manage monitoring request (Global CONTROL and Get Master Diag) class 2 master, no master/master dialogue class 2 master etc. It weighs 0.62kg. This product can be used to connect Modicon Quantum, Premium, M580, and M340 Programmable Logic Controllers (PLC) to Profibus DP V1 via the I/O scanner function. The kit includes CD including the communication DTM and CD including the master DTM for configuration inside UNITY.
Specifications
Specifications
| Range of product | Profibus DP |
| Product or component type | Profibus DP V1 remote master |
| Kit composition | CD including the communication DTM, CD including the Master DTM for PRM configuration inside UNITY |
| Communication gateway | Ethernet Modbus TCP to Profibus DP V1 gateway |
| Product compatibility | M340 PLC, M580 PLC, Quantum PLC, Premium PLC |
| Structure type | Industrial bus |
| Physical interface | RS485 |
| Method of access | Master class 1 Profibus DP, Master class 2 Profibus DP, Slave Modbus TCP |
| Mode of transmission | NRZ |
| Transmission support medium | Profibus 2 twisted shielded pairs cable, Modbus TCP category 5 shielded twisted pair (STP) |
| Transmission rate | 12 Mbit/s, 100 m bus for Profibus without repeater, 12 Mbit/s, 400 m bus for Profibus with 3 repeaters, 9.6 kbit/s, 1200 m bus for Profibus without repeater, 9.6 kbit/s, 4800 m bus for Profibus with 3 repeaters, 10...100 Mbit/s, 100 m bus for Modbus TCP without repeater |
| Number of server device(s) | 126 |
| Number of inputs | 2 |
| Number of outputs | 2 |
| Communication service | Check slave configuration (on power up) class 1 master, Manage monitoring request (Global CONTROL and Get Master Diag) class 2 master, No master/master dialogue class 2 master, Profibus FMS message handling not supported class 1 master, Profibus FMS message handling not supported class 2 master, Read/write DP slave I/O data class 1 master, Set slave parameters (on power up) class 1 master, Transfer slave diagnostic data class 1 master, Sync and freeze class 1 master, Acyclic DP V1 communication (R/W) class 1/2 master |
| Integrated connection type | 2 Ethernet TCP/IP - RJ45 for Modbus TCP, Profibus DP - SUB-D 9 for Profibus DP V1 |
| Current consumption | 200 mA at 24 V DC external |
| Module format | Standard |
| Net weight | 0.62 kg |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -45…85 °C |
| Relative humidity | 10…95 % without condensation |
| Operating altitude | <= 2000 m |
Packaging
| Package 1 | 1 PCE, 26.500 cm × 18.200 cm × 5.500 cm (L × W × H), 638.000 g |
| Package 2 | 8 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 5.638 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
TCSEGPA23F14F: frequently asked questions
When can TCSEGPA23F14F be shipped?
TCSEGPA23F14F is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TCSEGPA23F14F in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TCSEGPA23F14F and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TCSEGPA23F14F, subject to availability and destination.
