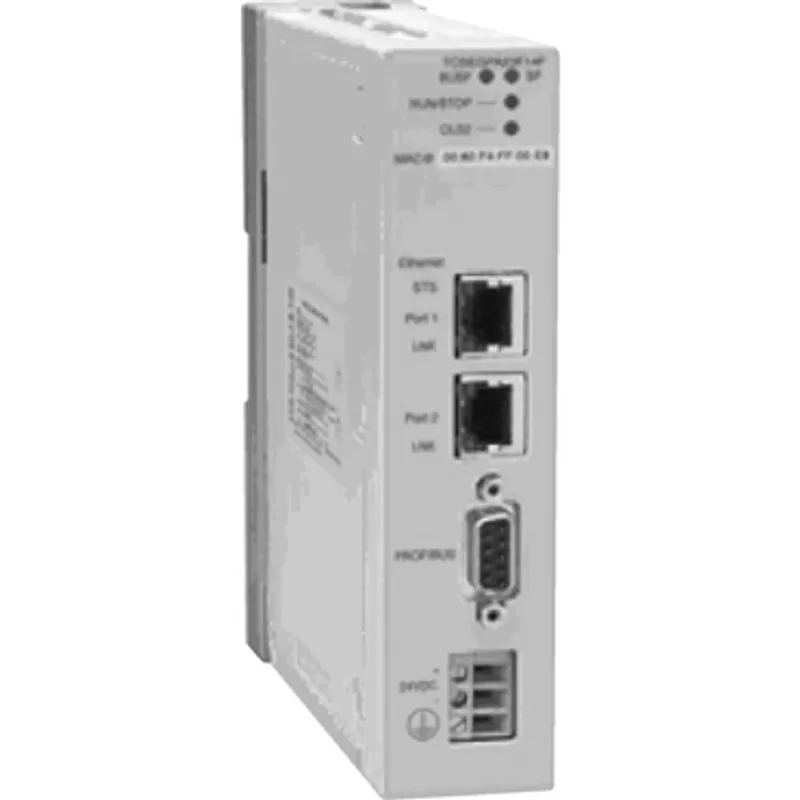

Schneider Electric TCSEGPA23F14FK
Profibus DP V1 remote master - for Premium/Quantum/M340/M580 PLC - coated
- MPN
- TCSEGPA23F14FK
- EAN
- 3595864068817
- Category
- Profibus DP Fieldbus
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric TCSEGPA23F14FK?
Schneider Electric Profibus DP V1 remote master - for Premium/Quantum/M340/M580 PLC - coated, manufacturer part number TCSEGPA23F14FK. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | Profibus DP |
| Product or component type | Profibus DP V1 remote master |
| Kit composition | CD including the communication DTM, CD including the Master DTM for PRM configuration inside UNITY |
| Communication gateway | Ethernet Modbus TCP to Profibus DP V1 gateway |
| Product compatibility | M580 PLC, Premium PLC, M340 PLC, Quantum PLC |
| Structure type | Industrial bus |
| Physical interface | RS485 |
| Method of access | Master class 1 Profibus DP, Master class 2 Profibus DP, Slave Modbus TCP |
| Mode of transmission | NRZ |
| Transmission support medium | Profibus 2 twisted shielded pairs cable, Modbus TCP category 5 shielded twisted pair (STP) |
| Transmission rate | 12 Mbit/s, 100 m bus for Profibus without repeater, 12 Mbit/s, 400 m bus for Profibus with 3 repeaters, 9.6 kbit/s, 1200 m bus for Profibus without repeater, 9.6 kbit/s, 4800 m bus for Profibus with 3 repeaters, 10...100 Mbit/s, 100 m bus for Modbus TCP without repeater |
| Number of server device(s) | 126 |
| Number of inputs | 2 |
| Number of outputs | 2 |
| Communication service | Check slave configuration (on power up) class 1 master, Manage monitoring request (Global CONTROL and Get Master Diag) class 2 master, No master/master dialogue class 2 master, Profibus FMS message handling not supported class 1 master, Profibus FMS message handling not supported class 2 master, Read/write DP slave I/O data class 1 master, Set slave parameters (on power up) class 1 master, Transfer slave diagnostic data class 1 master, Sync and freeze class 1 master, Acyclic DP V1 communication (R/W) class 1/2 master |
| Integrated connection type | 2 Ethernet TCP/IP - RJ45 for Modbus TCP, Profibus DP - SUB-D 9 for Profibus DP V1 |
| Current consumption | 200 mA at 24 V DC external |
| Module format | Standard |
| Net weight | 0.62 kg |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -45…85 °C |
| Relative humidity | 10…95 % without condensation |
| Operating altitude | <= 2000 m |
| Protective treatment | Conformal coating Humiseal 1A33 |
Packaging
| Package 1 | 1 PCE, 26.300 cm × 17.900 cm × 5.700 cm (L × W × H), 646.000 g |
| Package 2 | 8 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 5.730 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
TCSEGPA23F14FK: frequently asked questions
When can TCSEGPA23F14FK be shipped?
TCSEGPA23F14FK is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TCSEGPA23F14FK in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TCSEGPA23F14FK and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TCSEGPA23F14FK, subject to availability and destination.
