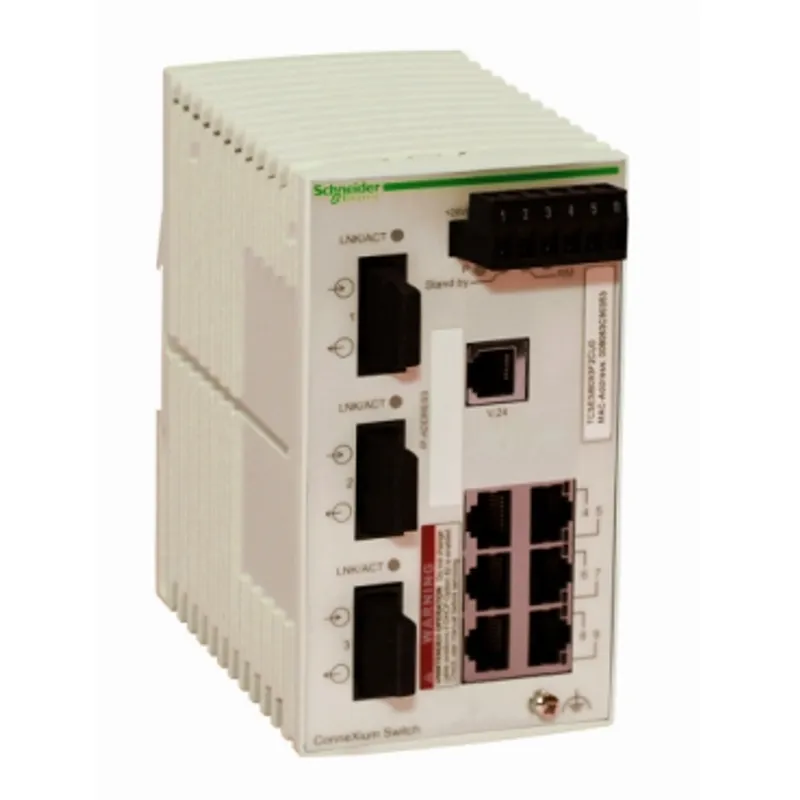

switch, Modicon Networking, basic managed switch, 6 ports for copper, 3 ports for fiber optic multimode
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon Networking |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.41 kg |
Shipping & availability
When can TCSESB093F2CU0 be shipped?
TCSESB093F2CU0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TCSESB093F2CU0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TCSESB093F2CU0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TCSESB093F2CU0, subject to availability and destination.
This product is part of the Modicon Networking range, an offer of Modicon Basic Managed Switch. This device comes with Ethernet TCP/IP protocol. It comes with 6 copper cable transmission ports and 3 ports for multi-mode fiber optic. It provides simple and complex connectivity for multiple Ethernet device. This product works at a power consumption of 9W and a rated voltage from 12V to 24V DC. It is furnished with 6-way removable connector (power supply) for electrical connection Its dimensions are 74mm (width) x 131mm (height) x 111mm (depth) and weighs 0.41 kg. It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels. It is CE, UL, RCM certified and conforms to UL 508 and EN/IEC 61131 standards. It is designed to be mounted on a 35mm symmetrical DIN rail. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.
Specifications
Specifications
| Range of product | Modicon Networking |
| Product or component type | Ethernet TCP/IP managed switch |
| Communication port protocol | Ethernet TCP/IP, HTTP, HTTPS, SNMP, RS232, LLDP, SNTP, MRP (Media Redundancy Protocol) |
| Port Ethernet | 10/100BASE-TX - 6 port(s) copper cable, 100BASE-FX - 3 port(s) fiber optic |
| Maximum number of switches in cascade | Unlimited |
| Cybersecurity | Role-based access control |
| Integrated connection type | Shielded RJ45 copper cable, Duplex SC fiber optic |
| Transmission support medium | Twisted shielded pairs cable CAT 5E for fiber optic, Multimode optical fiber for copper cable |
| Maximum cable distance between devices | 100 m copper cable |
| Optic fiber length | 4 km 62.5/125 µm, 5 km 50/125 µm |
| Attenuation | 0…11 dB (62.2/125 µm), 0…8 dB (50/125 µm) |
| Ethernet service | Configuration via web server, Multicast filtering, Data stream control, IGMP Snooping, SNMP-Traps and SYSLOG |
| Communication service | TFTP, Quality of Service (QoS), Port monitoring, Port mirroring |
| Diagnostics run time | Signal contact, Self test |
| Maximum number of switches in a ring | 50 |
| Redundancy | HiPER ring, RSTP |
| [Us] rated supply voltage | 12...24 V |
| Supply voltage limits | 9.6…32 V DC SELV |
| Power consumption in W | 9 W |
| Electrical connection | Removable connector 6 ways power supply |
| Mounting support | 35 mm symmetrical DIN rail |
| Marking | CE, UL, RCM |
| Function available | System information |
| Local signalling | 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 LED (red) for fault, 1 dual colour LED (green/yellow) for ring manager, 1 LED (green) for stand-by, 1 dual colour LED (green/yellow) for channel diagnostic, Device status |
| Alarm output | 1 voltfree contact 1 A |
| Alarm function | Power supply fault, Data link status, Switch fault, Redundancy ring fault, Switch fault, Incorrect configuration, Temperature threshold |
| Ethernet cabling system | TF switches |
| Width | 74 mm |
| Height | 131 mm |
| Depth | 111 mm |
| Net weight | 0.41 kg |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 10…95 % non-condensing |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Standards | UL 508, EN/IEC 61131 |
| Product certifications | CE, UL, RCM, EAC, UKCA |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.000 cm |
| Package 1 Width | 16.000 cm |
| Package 1 Length | 23.500 cm |
| Package 1 Weight | 617.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.895 kg |
| Warranty | 18 months |
