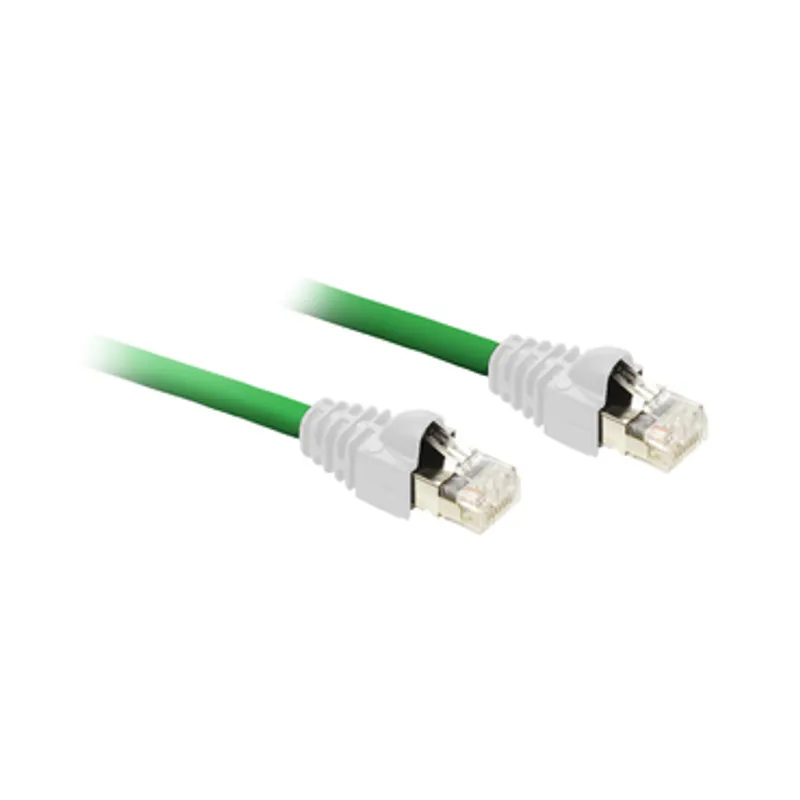

Ethernet ConneXium cable - shielded twisted pair - 2 x rugged RJ45 - UL - 5 m
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon Networking |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 287 kg |
Shipping & availability
When can TCSECU3M3M5S4 be shipped?
TCSECU3M3M5S4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TCSECU3M3M5S4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TCSECU3M3M5S4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TCSECU3M3M5S4, subject to availability and destination.
Schneider Electric Ethernet ConneXium cable - shielded twisted pair - 2 x rugged RJ45 - UL - 5 m, manufacturer part number TCSECU3M3M5S4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | Modicon Networking |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part type | Connecting cable |
| Product or component type | Pre-assembled Ethernet cable with RJ45 connectors |
| Accessory / separate part destination | Ethernet network |
| Cable length | 5 m |
| Transmission support medium | Twisted shielded pairs cable |
| Communication network category | 5e |
| AWG gauge | AWG 24 |
| Electrical connection | 2 connectors, RJ45 straight connector with 8 pin(s) |
| Marking | UL |
| Cover material | PVC |
| IP degree of protection | IP20 |
| Standards | IEC 11801 class D, UL 444, EN 50173 class D, CMG FT4, EIA/TIA-568 category CAT 5E |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.000 cm |
| Package 1 Width | 19.000 cm |
| Package 1 Length | 23.000 cm |
| Package 1 Weight | 287.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.935 kg |
| Warranty | 18 months |
