Schneider Electric SUA750IX38

Smart UPS 750VA 230V USB with UL approval

MPN
SUA750IX38
EAN
0731304253365
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

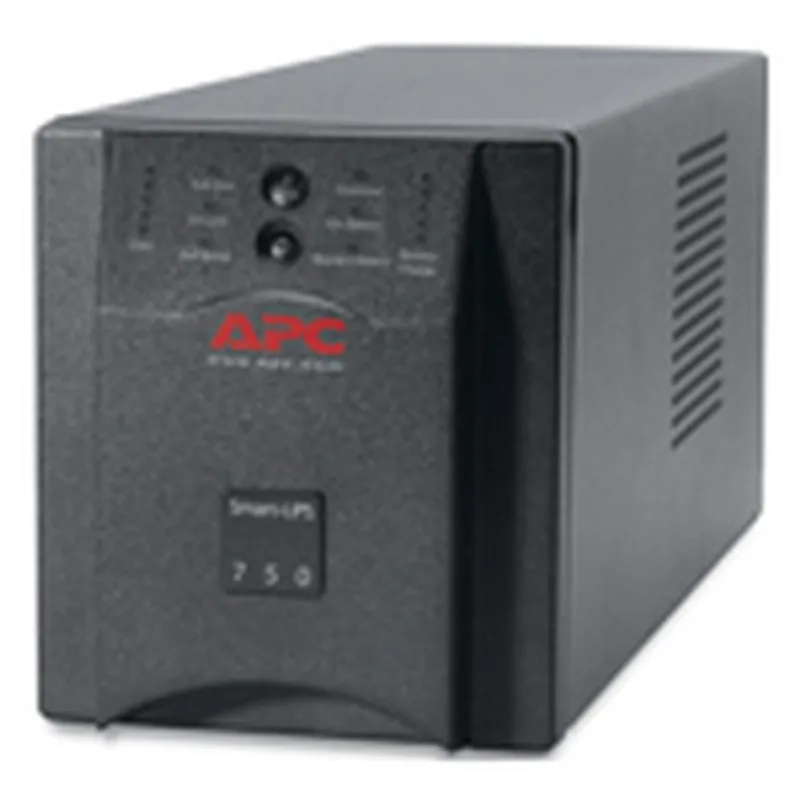

What is the Schneider Electric SUA750IX38?

The APC Smart-UPS provides intelligent and efficient network power protection. It has a power rating of 750VA and an output power capacity of 500 watts. The UPS operates with a nominal input and output voltage of 230V and includes features like USB connectivity.

Specifications

Specifications

PresentationIntelligent and efficient power protection enabling multi-regional deployment.
Max. Capacity Used
Main Input Voltage230 V
Input Connection TypeIEC 320 C14
Input voltage limits151...302 V adjustable, 160...285 V
Network frequency50/60 Hz +/- 3 Hz auto-sensing
Output voltage230 V
Rated power in W500 W
rated power in VA750 VA

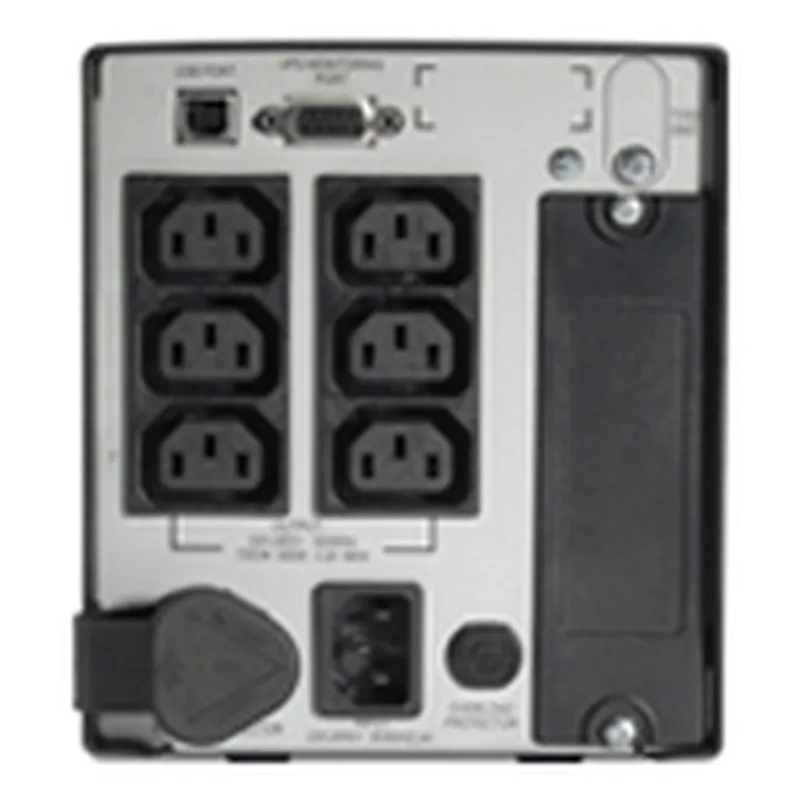

Output connection type6 IEC 320 C13, 2 IEC Jumpers
Harmonic distortionLess than 5 % at full load
Maximum configurable power in VA750 VA
Maximum configurable power in W500 W
Transfer time4 ms typical : 8 ms maximum
UPS typeLine interactive
Wave typeSine wave
Additional informationConfigurable for 220 or 230V nominal output voltage
Battery capacity7.0 Ah
Control panelLED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators
Free slots1
AlarmAlarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Let through voltage rating400 V
Surge energy rate340 J
Noise suppressionFull time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
ColourBlack
Height157 mm
Width137 mm
Depth358 mm
Net weight13.18 kg
Mounting preferenceNo preference
Mounting modeNot rack-mountable
Two post mountable0
USB compatibleNo
Provided equipmentCD with software, Documentation CD, Smart UPS signalling RS-232 cable, User manual
Number of power module filled slots0
Number of power module free slots0
RedundantNo
Variant optionFactory set voltage
Product or component typeUninterruptible power supply (UPS)
Product certificationsCE
StandardsEN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Ambient air temperature for operation0…40 °C
Ambient air temperature for storage-15…45 °C
Storage altitude0…15240 m
Relative humidity0…95 %
Storage Relative Humidity0…95 %
Acoustic level55 dBA
Heat dissipation90 Btu/h
Operating altitude0...10000 ft
Run TimeView Runtime Graph
EfficiencyView Efficiency Graph
Battery typeLead-acid battery
Battery voltage24 V
Extended runtime0
Number of battery filled slots0
Number of battery free slots0
Battery recharge time3 h
Number of battery replacement quantity1
Battery life3…5 year(s)
Replacement batteryRBC48
Battery charger power50 W rated

Packaging

Package 11 PCE, 27.3 cm × 49.5 cm × 27.9 cm (L × W × H), 14.55 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

SUA750IX38: frequently asked questions

When can SUA750IX38 be shipped?

SUA750IX38 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SUA750IX38 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SUA750IX38 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SUA750IX38, subject to availability and destination.
