Schneider Electric SURT001

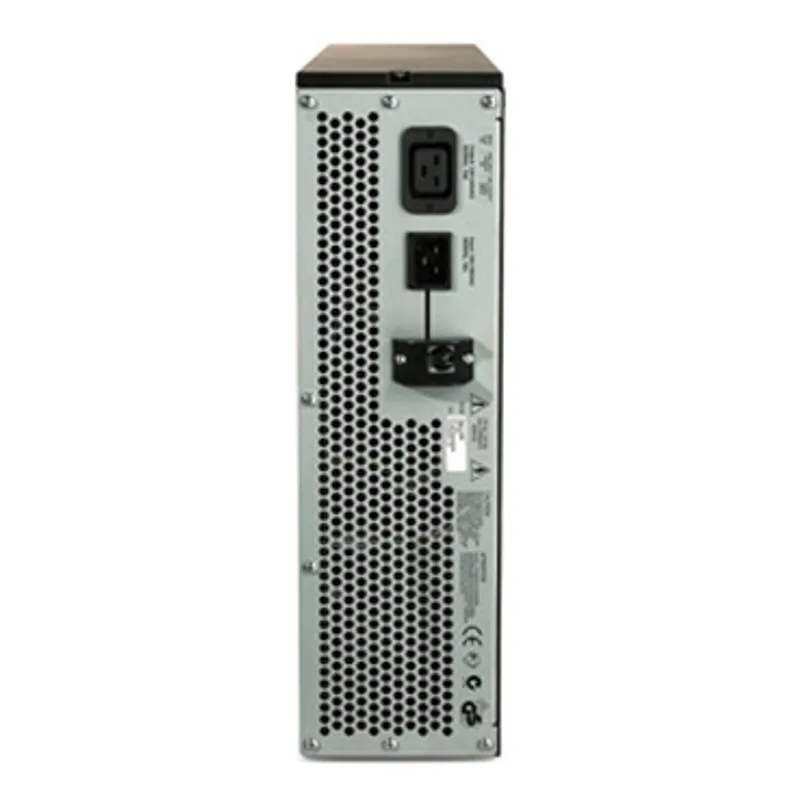

APC Smart-UPS RT Isolation Transformer, 3000VA, 230V In/Out, 1x IEC Jumpers & 1x IEC 60320 C19 outlets

MPN
SURT001
EAN
0731304217787
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric SURT001?

This Isolation Transformer supports a load capacity of 3000VA. It features a 3U rack-mount design and is rack mountable with kit. The unit includes user manual, installation guide and mounting hardware.

Specifications

Specifications

PresentationAccessory solutions to tailor the Smart-UPS to meet your specific needs.
Main Input Voltage230 V
Product or component typeTransformer
Main Output Voltage230 V
Other Output Voltage220 V
Input Connection TypeIEC 60320 C20
Number of rack unit3U
Number of cables1
Provided equipmentInstallation guide, Mounting hardware, User manual
Range of productSmart-UPS Accessories
ColourBlack
Height130 mm
Width432 mm
Depth660 mm
Net weight56.82 kg
Mounting locationFront
Mounting preferenceLower
Mounting modeRack-mounted with kit
USB compatibleNo
Input current limits16 A
Load capacity3000 VA
Network frequency50/60 Hz
Number of power socket outlets1 IEC Jumpers, 1 IEC 60320 C19
Product certificationsC-Tick, CE
StandardsEN 50091-1, EN 55022 class B, EN 55024, EN 60950, EN 61000-3-2
Ambient air temperature for operation0…40 °C
Relative humidity0…95 %
Operating altitude0...10000 ft
Ambient air temperature for storage-25…65 °C
Storage Relative Humidity0…95 %
Storage altitude0…15240 m
SCC1410731304217784

Packaging

Package 11 PCE, 60.3 cm × 98 cm × 34.7 cm (L × W × H), 63.64 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

SURT001: frequently asked questions

When can SURT001 be shipped?

SURT001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SURT001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SURT001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SURT001, subject to availability and destination.
