Schneider Electric SUA5000RMI5U

APC Smart-UPS 5000VA 230V Rackmount/Tower

MPN
SUA5000RMI5U
EAN
0731304255321
Category
Smart-UPS
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric SUA5000RMI5U?

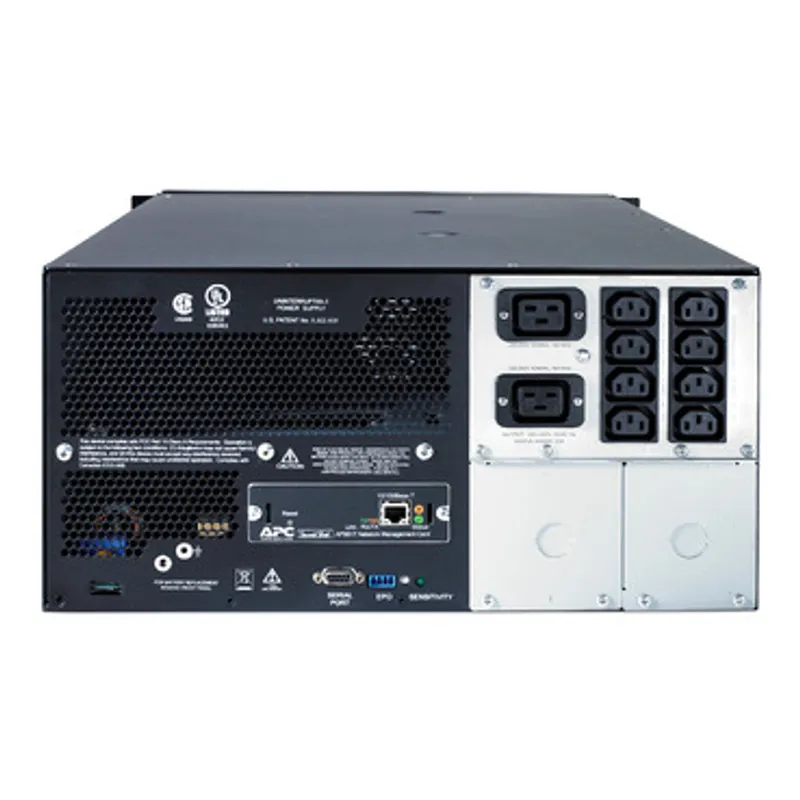

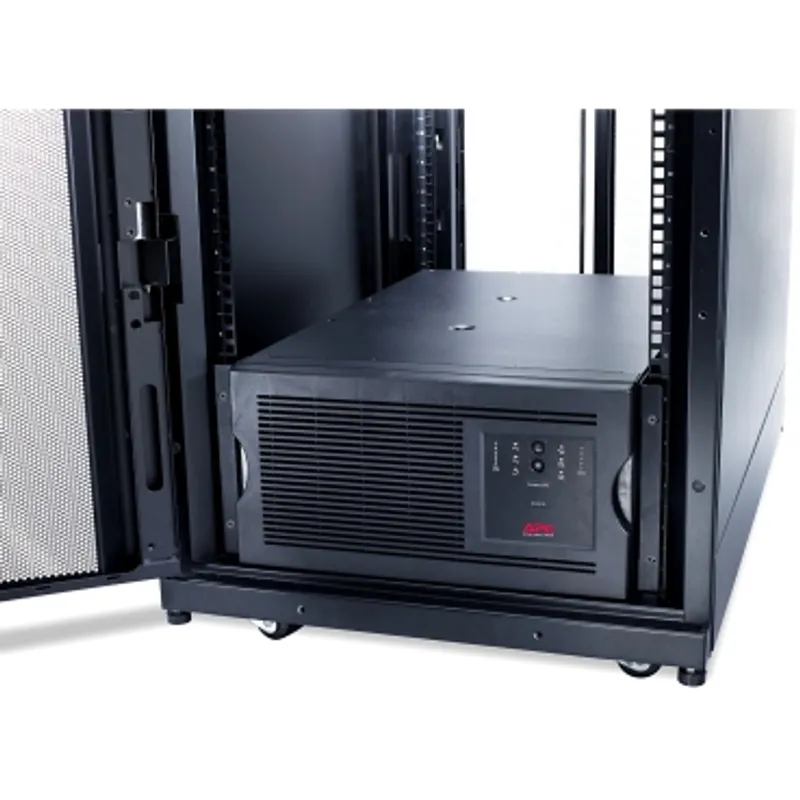

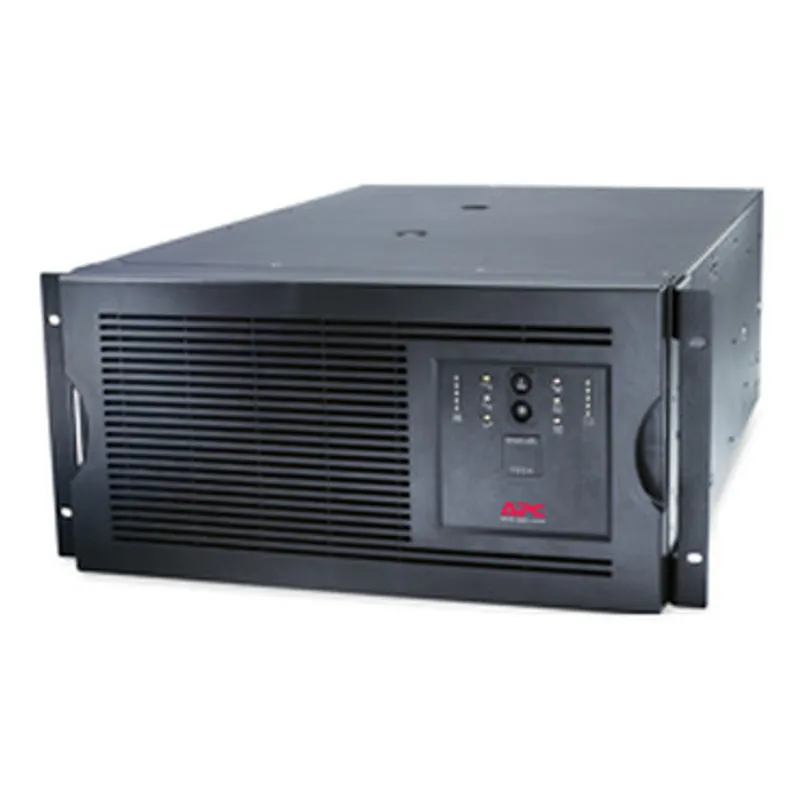

The APC Smart-UPS is a rackmount or tower UPS with a power rating of 5000VA and 4000 watts. It operates at a nominal voltage of 230V and includes multiple output connections such as 8 IEC 320 C13 and 2 IEC 320 C19. The UPS uses lead-acid battery and features a SmartSlot for additional management options.

Specifications

Specifications

PresentationIntelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Max. Capacity Used
Main Input Voltage230 V AC 1 phase
Input voltage limits151...302 V adjustable, 160...286 V
Number of input connectors1 hard wire 3-wire
Network frequency50/60 Hz +/- 3 Hz auto-sensing
Output voltage220 V, 240 V
Rated power in W4000 W
rated power in VA5000 VA
Output connection type8 IEC 320 C13, 4 IEC Jumpers, 2 IEC 320 C19
Crest factor3 : 1
Harmonic distortionLess than 5 % at full load
Maximum configurable power in VA5000 VA
Maximum configurable power in W4000 W
Transfer time2 ms typical : 4 ms maximum
UPS typeLine interactive
Wave typeSine wave
Efficiency96 % (full load)
Output frequency47...53 Hz for 50 Hz nominal sync to mains
Additional informationConfigurable for 220 : 230 or 240 nominal output voltage
Battery typeLead-acid battery
Free slots0
Preinstalled deviceNetwork management card
Control panelLED status display with on line : on battery : replace battery and overload indicators
UPS connectivitySerial port, USB port, Available expansion slot
Surge energy rate480 J
Noise suppressionFull time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Number of rack unit5U
ColourBlack
Height222 mm
Width483 mm
Depth660 mm
Net weight97.73 kg
Mounting locationFront
Mounting preferenceNo preference
Mounting modeRack-mounted with included kit
Two post mountable0
USB compatibleNo
Provided equipmentCD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack mounting support rails, Smart UPS signalling RS-232 cable, User manual, Web/SNMP management card
Number of power module0
Number of power module filled slots0
Number of power module free slots0
RedundantNo
Range of productSmart-UPS
Product or component typeUninterruptible power supply (UPS)
Product certificationsC-Tick, CE, GOST, VDE
MarkingGS Mark
StandardsEN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Ambient air temperature for operation0…40 °C
Ambient air temperature for storage-15…45 °C
Storage altitude0…15240 m
Relative humidity0…95 %
Storage Relative Humidity0…95 %
Acoustic level53 dBA
Heat dissipation430 Btu/h
Operating altitude0...10000 ft
Run TimeView Runtime Graph
Extended runtime0
Number of battery filled slots0
Number of battery free slots0
Battery recharge time3 h
Number of battery replacement quantity2
Battery life3…5 year(s)
Replacement batteryRBC55
Battery charger power542 W rated

Packaging

Package 11 PCE, 76.2 cm × 61 cm × 63.5 cm (L × W × H), 106.82 kg
Package 24 PAL, 120 cm × 100 cm × 119 cm (L × W × H), 464 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

SUA5000RMI5U: frequently asked questions

When can SUA5000RMI5U be shipped?

SUA5000RMI5U is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SUA5000RMI5U in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SUA5000RMI5U and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SUA5000RMI5U, subject to availability and destination.
